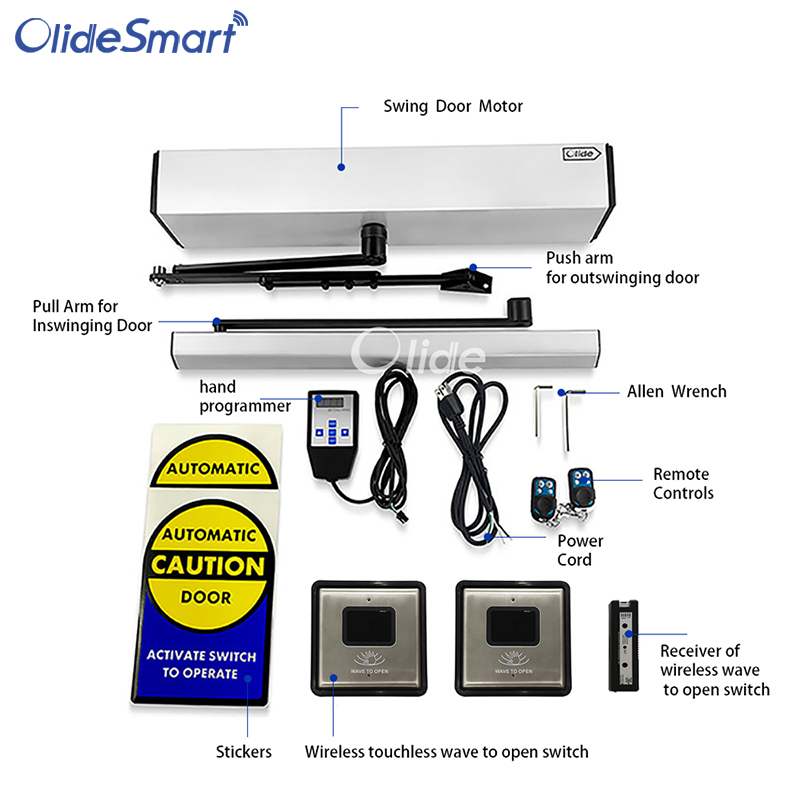

Touchless Wave to Open Automatic Door Opener Olide-120B
The wave to open switch is a contactless active infrared induction smart switch. Its main feature is to realize the switch control of the circuit by waving at a certain distance from the switch panel.
It's an active infrared sensor switch, which is mainly used in Hospitals, laboratories, offices, public washrooms, kitchens, toilets and other areas to achieve simple and convenient door control in contactless mode.
The product can be used for the sensing control of touchless access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.
Wave your hand near the switch , the door will open automatically without pressing.
Features for Wireless Wave to Open Switch M512
- Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference.
- Non - contact induction with hands or reflective objects, clean and hygienic.
- The induction distance is adjustable from 3-30cm. It can be adjusted for different occasions.
Olide-120B Wave to Open Automatic Door Opener Features
1. Reinforced high strength aluminum alloy and imported original parts used;
2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation;
3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;
4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine;
5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor;
6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open);
7. The swing door opener model Olide-120B can bear withstand the door weight of 120kgs(264.55lbs);
8. Can be used for single or double doors, frameless or framed doors;
9. Easily adjust parameters by hand programmer.
Pull and Push Arms Are Optional

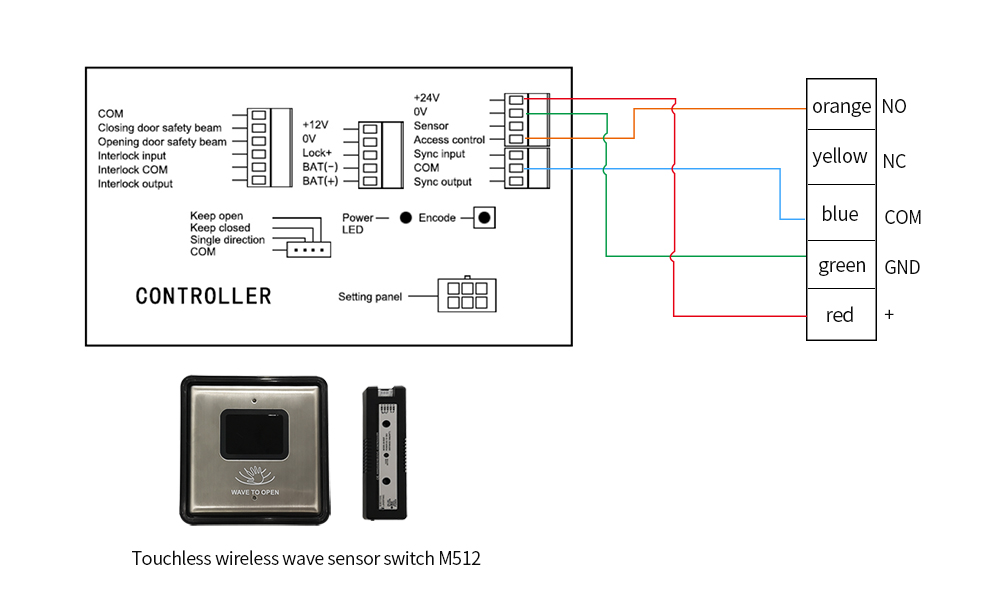

Wiring with Wireless Switch M512

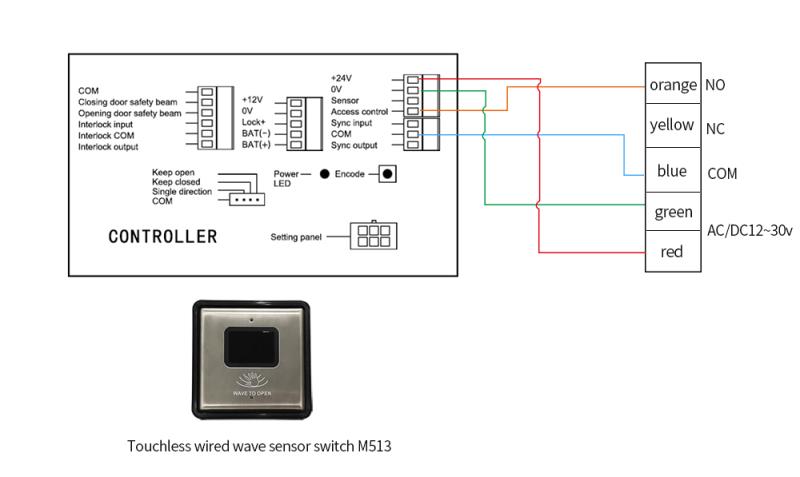

Wiring With Wired Switch M513
