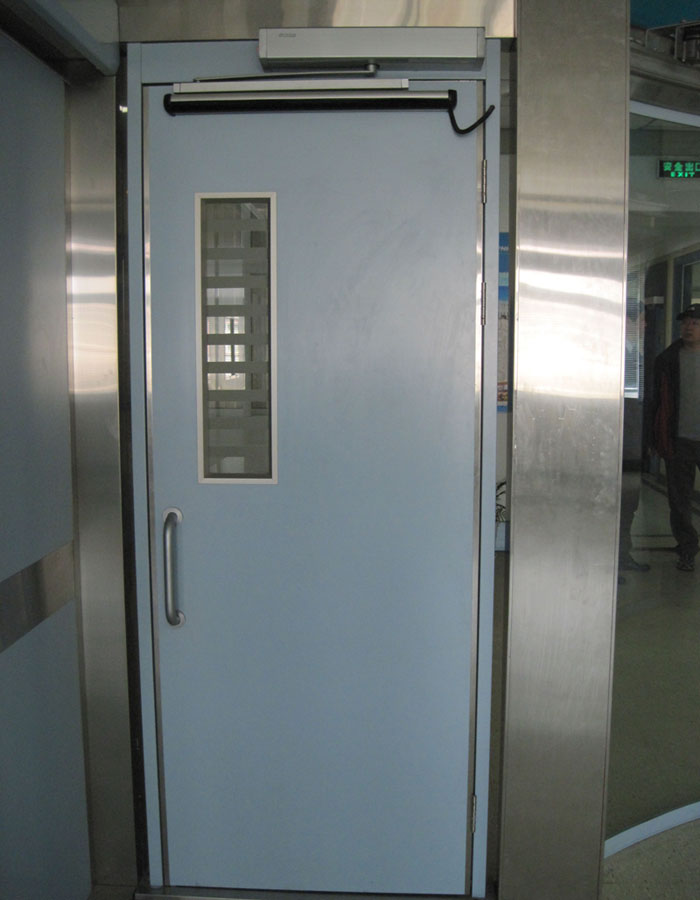

1. The outer surface of automatic swing air tight door is made of stainless steel, electrolytic steel plate and color steel plate. Among them stainless steel is of best quality, as well as highest cost of manufacture.
2. The reducer of automatic air-tight door motor should be specially manufactured. Thus it can minimize the noise to meet the demand of clean rooms.
3. The electric control part must conform to national standards of EMC to avoid disturbance to medical devices.
4. The voltage range of electric control part is wide.
Door configuration | single leaf | |
Door leaf weight | ≤150kgs | |
Door leaf width | 2000mm(w)*2500mm(H) | |
Opening speed | 200-500mm/s(Adjustable) | |
Closing speed | 200-500mm/s(Adjustable) | |
Power voltage | 24V brushless DC motor | |
Hold-open time | 1-9s(Adjustable) | |
Automatic function | Automatically reverse upon obstruction | |
Voltage | AC220V 50Hz-60Hz | |
Operating ambient Temp. | -20°C~60°C |
