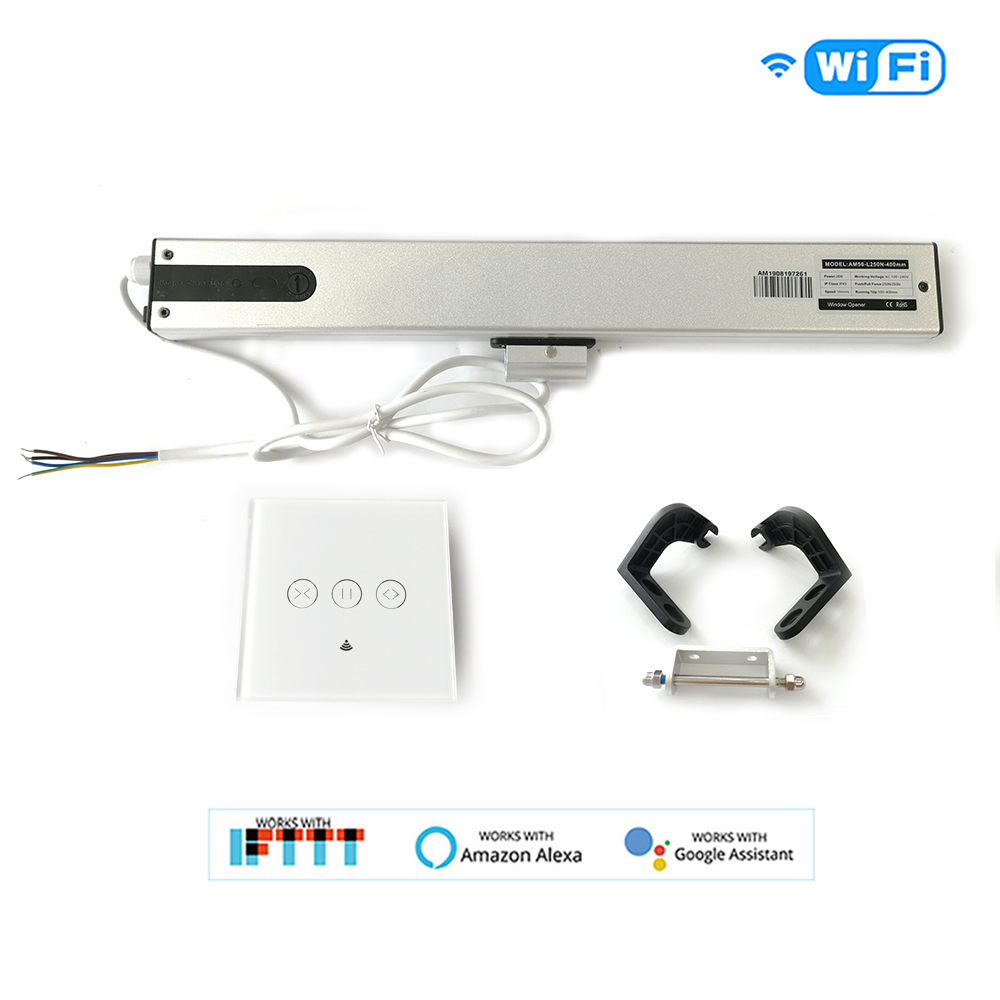

Smart Automatic Window Opener Work With Google Home

Smart Window Opener Advantages：

• Voice Control

Use Alexa and Google home smart speakers to control window switch with simple voice to free hands,use your voice to control the connected devices easily.

• Timing Function

Open and close your windows according to your own schedule.
Don't worry about forgetting to turn it on or off.

• Phone Control

You can use "Smart Life" APP in your smart phone to control the wall switch wirelessly with Wi-Fi or 4G network.no hub required.Never have to rush home in rainy days, and you don’t have to worry about the air in your home when you going out for a long time.

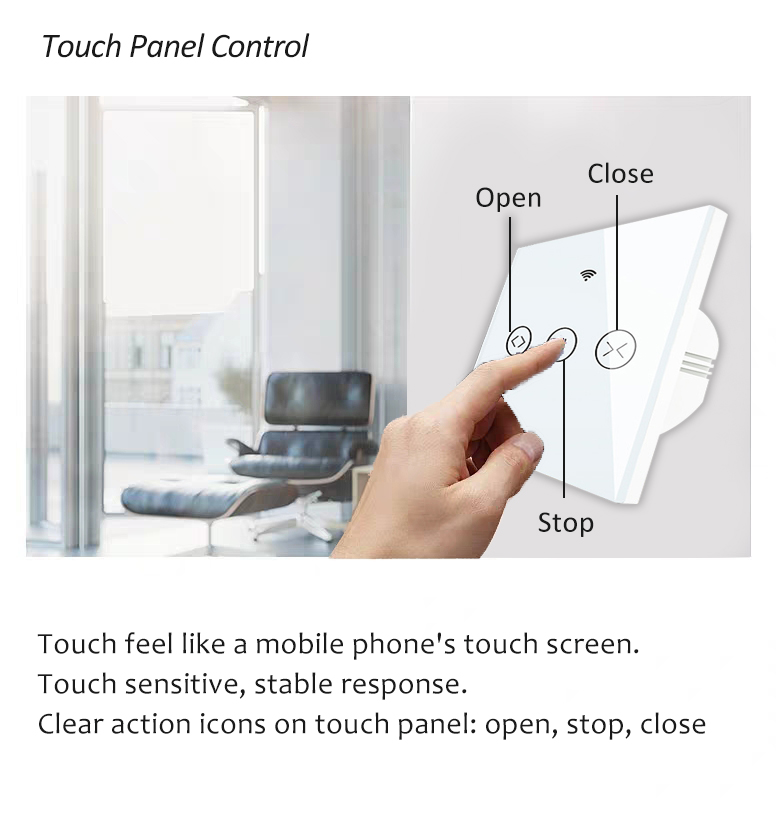

• Touch Panel Control

Touch feel like a mobile phone's touch screen. Touch sensitive, stable response.
Clear action icons on touch panel: open, stop, close.

Features：

1. Wide voltage 100-240V AC power input, suitable for all country's different requests.

2. Adjust the journey by adjusting knob; the maximum stroke could reach 400mm.

3. Apply to small size window, down to 470mm windows.

4. The chain materials use double layers stainless metal.

5. Quality stable and smooth running.

6. Aluminum housing with sand blast treatment; the cover and brackets are zinc alloy die castings.

7. Two frame resistance ABS holders and the POM sliding guide make the motor more safety and silent.

Technical Parameters

Model No.: AM56
Rated Voltage: AC 100-240V
Rated Power: 28W
Push/Pull Force: 250N/250N
Speed: 10mm/s
Running Trip: 100-400mm
Temp: -20°C~+75°C
IP Class: IP 43

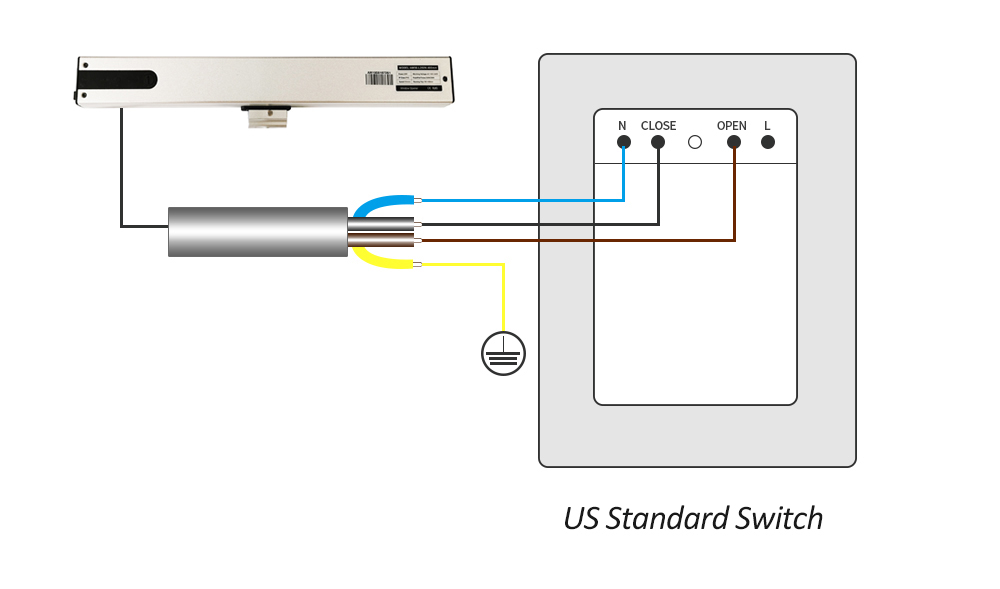

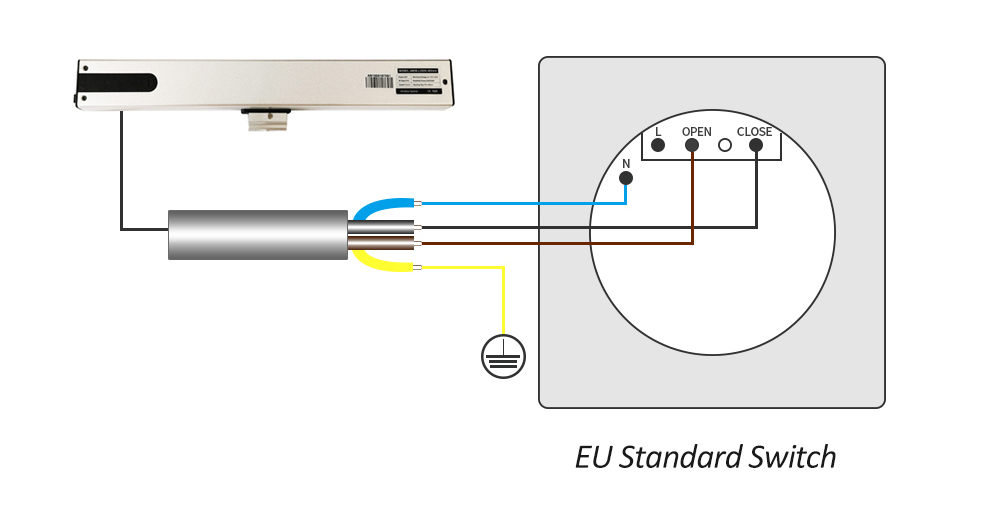

Wiring Diagram
