Electric Handicap Door Opener With Push Button

 SW120 swing door opener with hand programmer

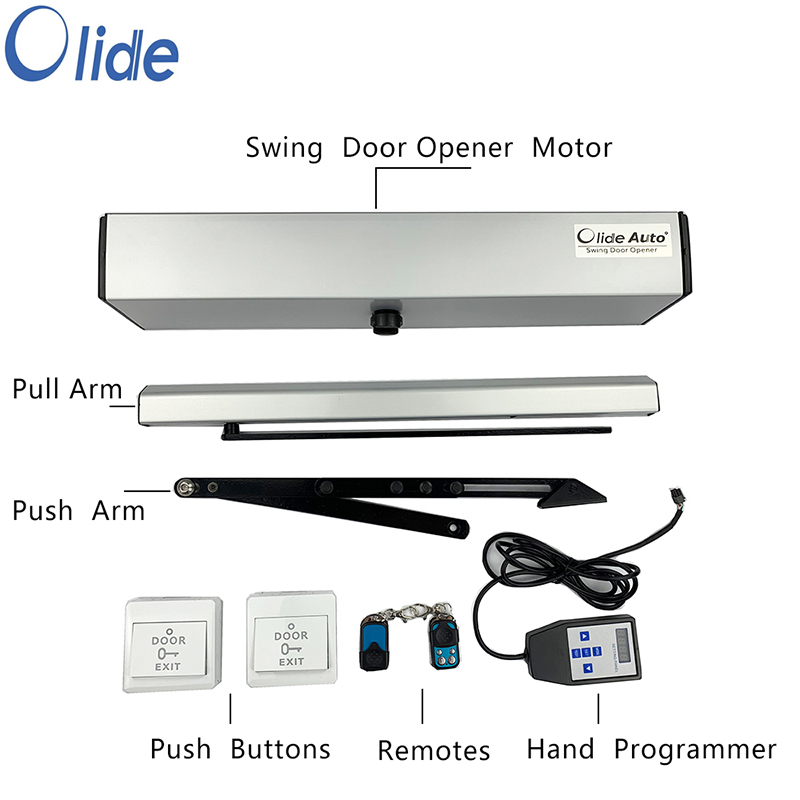

One set electric door opener includes: Opener,  2 arms, 2 remotes, 2 push buttons Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.

DSW120 Automatic Swing Door Opener Features

1. Reinforced high strength aluminum alloy and imported original parts used.

2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation.

3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.

4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

7. The swing door opener model SW120 can bear withstand the door weight of 120kgs (264.55lbs).

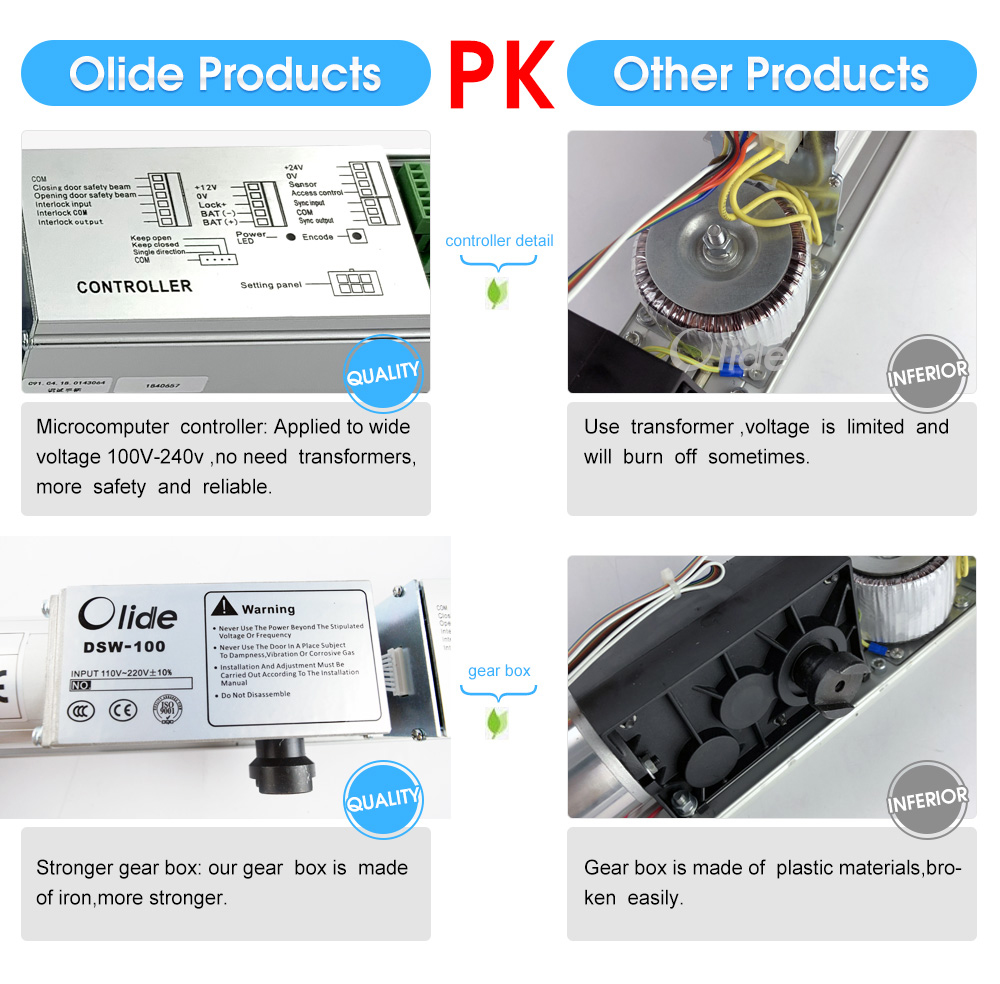

olide dsw120 automatic swing door opener advantages

Product Advantages

sw120 automatic swing door opener with hand programmer 2

Hand Programmer And Remote Description

 olide dsw120 automatic swing door opener with hand programmer

Parameters easily adjustable by hand programmer:

①Opening or closing speeds ​

②Manually open force (Push go function)

③Opening direction

④Hold-open time

dsw120 automatic swing door opener remote control description

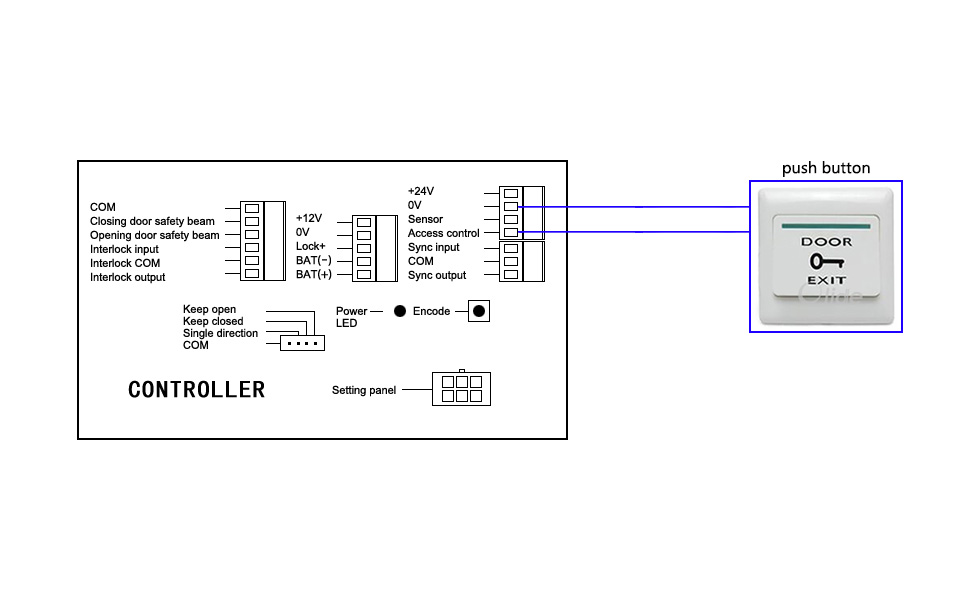

Olide DSW120 Installation And Wiring Diagram

Swing-door-opener-SW100-details-2(2)

swing door opener SW120 wiring connection
