Sliding Window Opener
You can connect the elecltric sliding window opener with all kinds of sensors so that it can open and close automatically when
it is rainy and gas leak.
Good quality material Exquisite craftsmanship and |
|
Humanization design You can open and close the window |
|
Coulor can be customized You can choose while,black, |
Voltage | 24V | 220V |
Thrust/Pull |
200N | 200N |
The maximun working current |
1.5A | 0.2A |
Travle distance | 0-5000mm | 0-5000mm |
Driving Speed | 40-60mm/sec | 40-60mm/sec |
Working voltage | DC24V±%10 | DC24V±%10 |
Ambient Temperature | -20~+75℃ | -20~+75℃ |
Protection Grade | 32IP | 32IP |

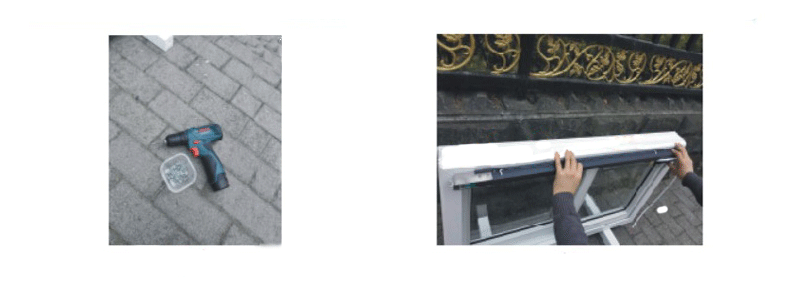

1.Ready for all needed tools,and then mount the window opener on the window frame.

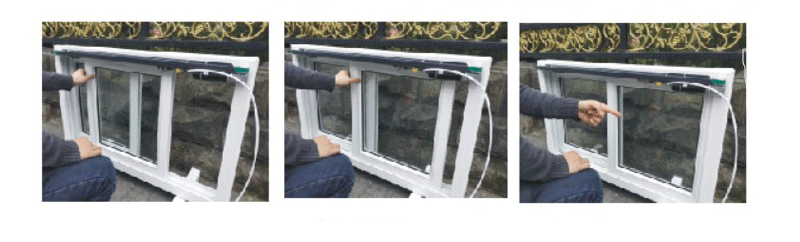

2.Close the window

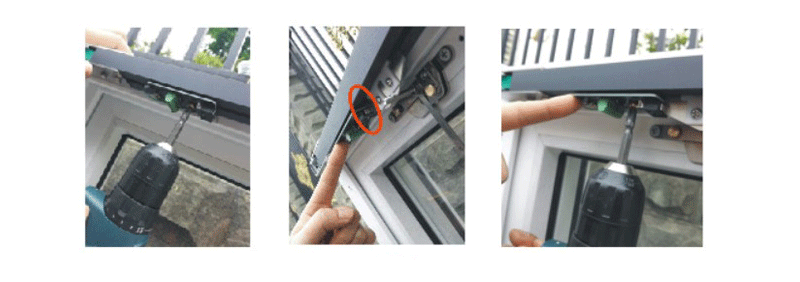

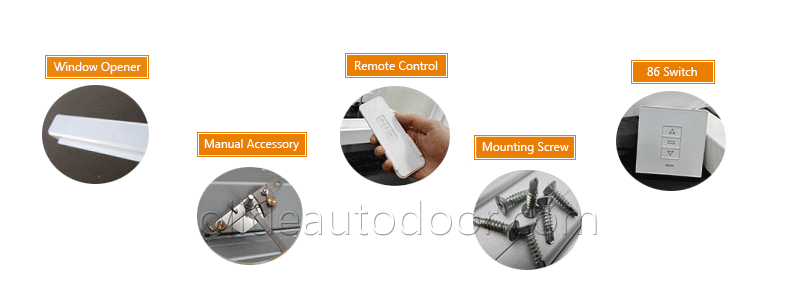

3.Fix manual accessories.(The srew shoud be fixed on the groove of the slide track)
4.Access the power supply,and make the window slide to the left in a proper position .Adjust the travel switch, and make the switch touch the sliding wheel,then fix it

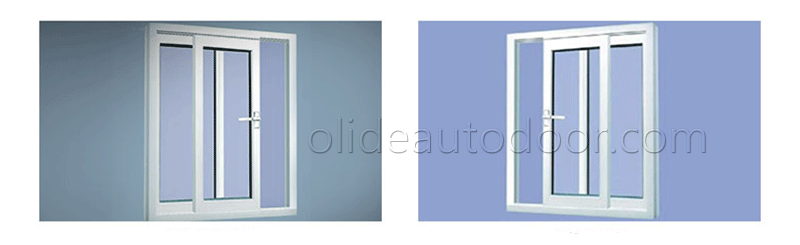

aluminium alloy sliding window plastic steel sliding window

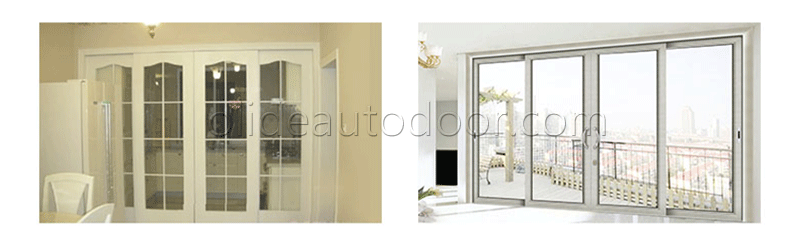

Kitchen sliding door patio sliding door
