SD600

PRODUCT DETAILS

  • Fob Price: US $ 95 - 135 / Set
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 24 Months
 AUTOMATIC WINDOW OPENER CSD600

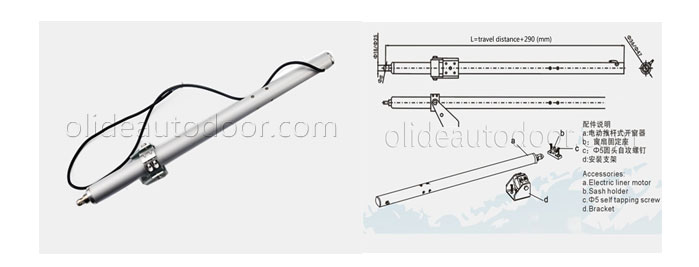

One complete set window opener include the accessory:window opener housing, chain, motor, bracket, screws, the details included in the following picture.

window opener csd600

video on youtube

 HOW TO CHOOSE THE MOST SUITABLE WINDOW OPENER?

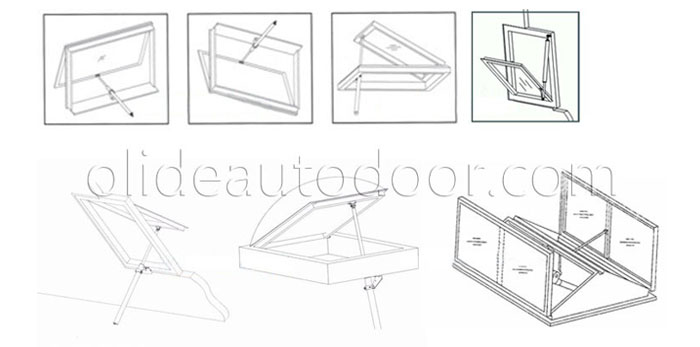

1. Our electric window opening mechanisms is suitable for the below window types.


 window opener application type

2. Please refer to the following technical specification to choose the suitable electric window opening mechanisms.

Model CSD300 CSD500 CSD600
The push and pull force 400N 600N 800N
Max load bearing 40kg 60kg 80kg
Travel distance 300mm 500mm 300/500mm
Speed 8mm/s 7mm/s 7mm/s
Size 455(L)X52(W)X40(H)mm 667(L)X52(W)X40(H)mm 574(L)X35(W)X20(H)mm
Operating power 24V DC
Degree of protection 42 IP
Operating ambient Temp. -10° - +70°
Material

Housing is made of aluminum alloy, also stainless steel can be customized,
chain is made of stainless steel.



 PRODUCT FEATURES

  1. Rebuilt overloading protection system,in case the sudden high electric current make he motor burning

  2. Max travel distance 800mm(can be customized) is very suitable for all kinds of windows, especially the big skylight and smoke vent.

  3. Stainless steel rod is high anti-corrosion, even in the high temperature and moisture environment, the window opener can last long service life.

  4.Travel distance and color can be customized, we can meet different demands from kinds of customers.

automatic window opener 1
Fine and easy installed hareware fitting High anti-acid aluminium alloy housing

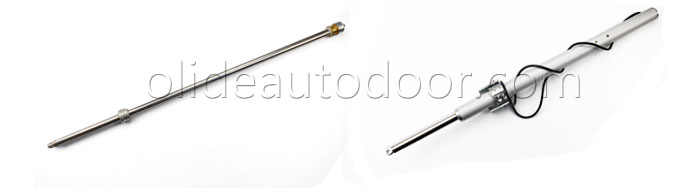

automatic window opener 2

Long travel distance

Retractable screw window opener



4.More than thousands of pushing and pulling test,HTHP test, salt spray test,etc. ensure the thirty thousand smoothly push and pull to the opener.

5. Centralized controller for fire,Vent centralized controller,Central controller for wind&rain.Remote centralized controller for window open&close in the whole building can all be customized.Just oen press,the whole building windows can be controlled.

Centralized controller



 OPTIONAL ACCESSORY
window opener accessories
                    Receiver Remote Control Smoke Detector Rain&Wind Detector

A. Receiver
1. The window opener can be closed or open by the receiver.
2. It can convert the 24 V DC to the output voltage 110V or 220V, otherwise the window opener will be burnt.As usual, one window opener need one receiver. 3. It can receive the signal sent from the remote control.

B. Remote control
1.The remote control is wireless, one remote control can control hundreds of windows at the same time if you want them open and close at the same time.
2. Just one press, the window will open or close automatically,it make the house samrter.

C. The smoke, wind and rain detecting system.
The window opener can be equipped with the optional accessory smoke, wind and rain detecting system. When detect the smoke, wind or rain, the window would closed by itself.



window opener wire connection

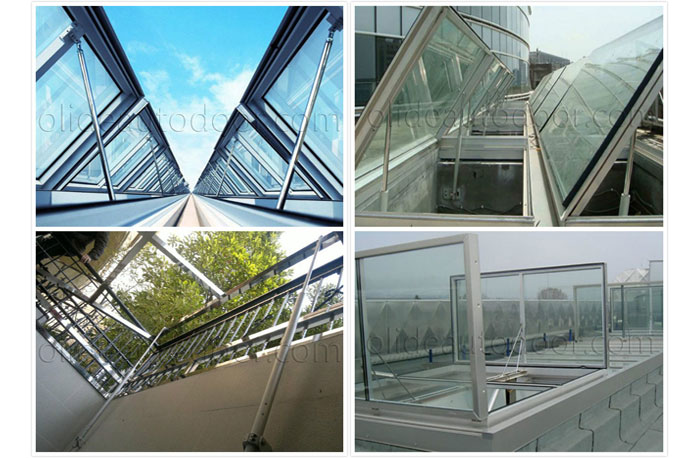

 INSTALLATION PICTURE FROM CUSTOMERS PROJECT


 window opener application

Installation Tips:
1. The products must not be installed outside where would get wet in the rain.
2. There are two versions for choice, 24V DC and 110V/220V AC, But as usual, the 24V DC is safer than AC version as the large voltage would harm people.
3. The receiver can convert the 24 V DC convert to the output voltage 110V/220V.
