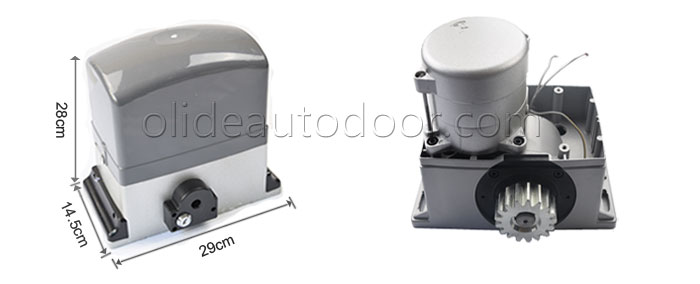

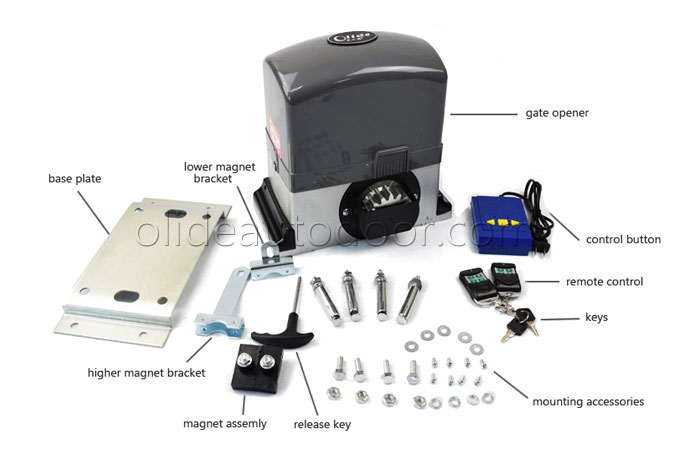

One set automatic sliding gate opener including: Gate motor, Control board, Base, 2 remote controls, Release key, Mounting accessory.
1 High sensitivity obstruction detection with automatic reverse. And the reverse force is adjustable.
2. With built-in thermal protector, for protection when the motor heat up to rated temperature
3. Keypad / single button interface
4. Photo beam safety beam interface
5. Auto-close function is adjustable, and the time delay closed is adjustable
6. Electronic Soft Start & Stop
High quality Cast aluminum alloy base |
Powerful, reliable, smooth operation with |
|
|

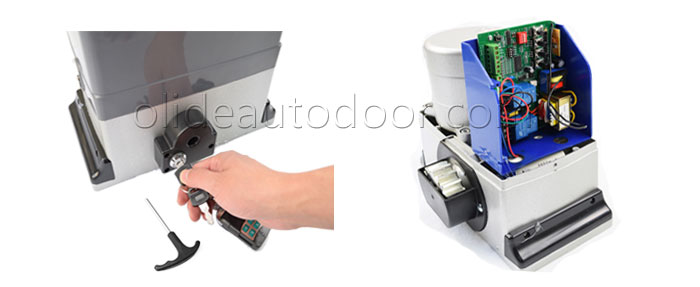

Manual key release design for |
MCU is supplied to control the gate operator |

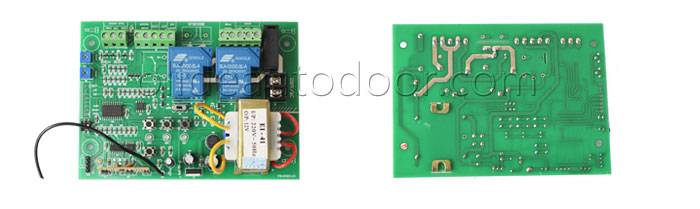

Double-sides welding spot on the control board, which makes it more durable in case on side welding spot break down.
Model | SD370 | SD550 | SD750 | SD950 | SD1200 |
Power supply | 110V/220V AC | 380V AC | |||
Rated power | 370W | 550W | 750W | 950W | 1200W |
Torque | 18N.M | 28N.M | 38N.M | 48N.M | 60N.M |
Max. Gate weight | 600-800kg | 1200kg | 1600kg | 1800kg | 2000kg |
Travel speed | 14m/min | 12m/min | 10m/min | 9m/min | 8m/min |
Operating ambient Temp. | -20°~+55° | ||||
Weather-resistance Rate | IP44 |

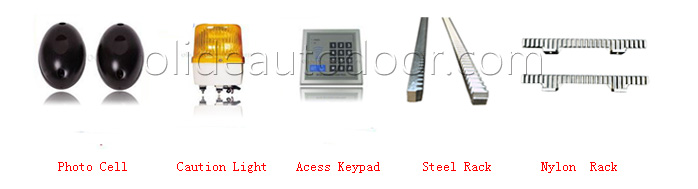

1. Photo cell
It can detect the tiny obstruction during gate closing or opening and make the gate open automatically. Avoiding people and gate opener from hurting. The valid detecting range of the photo cell is 10 meters.
2. Alarm lamp
When the person force entering the house, the alarm lamp will light and sound.

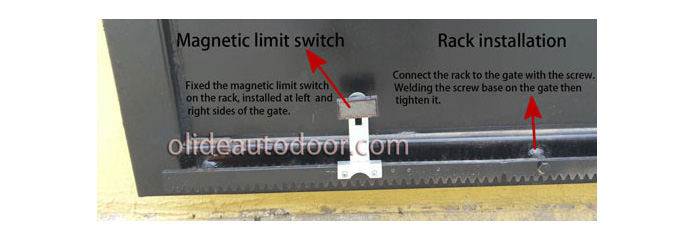

3. Steel rack and nylon rack
4. Access keypad
Connecting with access keypad, you can set the code or using the card to control the gate access.
