Automatic Swing Door Opener SD3108
Know more about the operator, function, programming, please visit our videos on Youtube:
One set electric door opener includes: Opener, 2 arms, 2 remotes, 2 push buttons. Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.
Articulated Arm Sliding Arm
Remote control Introduction
| Model | SD3108 |
| Swing application | One-way open, single leaf and double leaf standard doors |
| Power supply | 220V/AC 110V/AC 50/60Hz |
| Motor | DC 12V brushless motor |
| Rated power | 45W |
| Door width | 1200mm |
| Door weight | 120kgs |
| Opening/Closing speed | 2-8 seconds (adjustable) |
| Opening time | 0-120seconds (adjustable) |
| Hold-open time | 1-30seconds (adjustable) |
| Environment temperature | -20 ~ +50°C |
| Manual force | <30N |
| Operation noise | <55db |
| Opener size | 410mm(L)*80mm(W)*75mm(H) |
| Packaing size | 460mm(L)*200mm(W)*120mm(H) |
| Opener weight | 5.5 kgs |
1. surface mounting
2. Push-Go: Automatic activation by pushing or pulling door panel
3..Quiet and aesthetically pleasing
4. Electric strike integration
5. Efficient and cost-effective
Note: backup battery is optional accessory, not included in one complete set.
1. Access keypad (card reader)
Designed for the control of office building,office,residential house, security system.Card reading and password inputting.Great power of card reading with the distance no less than 10cm.
2. Wire&wireless push button
3. Hand sensor switch
With the non-contact induction design, door can be open in an easy and clean way.Transmit distance is adjustable from 1 to 15 cm.
4. Passive Infrared sensor (Body sensor)
Just induce the movement of human body only.When someone moves, the sensor will react and door operator will be triggered to operate.Maximum detection speed: 5cm/s.
5. Foot sensor
When feet is detected, beam will be cut off and thereby trigger the signal for door opening.
6. Electric lock
Make your doors more security. Easy installation. Provide with bracket for installation.Holding force: 280Kg(600Lbs).
7. Hand programmer
Easily adjustable opening&closing speed, opening angle,hold open time by hand programmer.

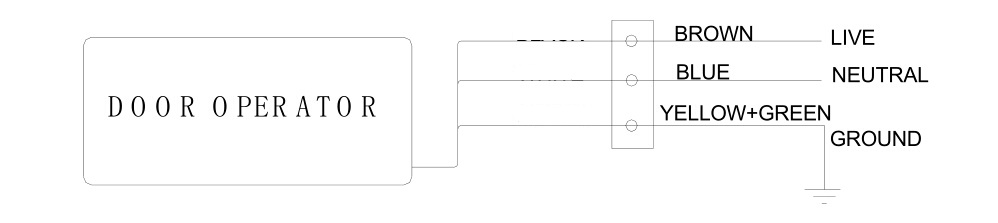

Power wiring diagram:
| S/N | Value scope | Initial value | Function description |
| 1 | 10-100 | 65 | Opening speed |
| 2 | 10-100 | 55 | Closing speed |
| 3 | 1-10 | 2 | Damping opening speed |
| 4 | 1-10 | 2 | Damping closing speed |
| 5 | 1-60 | 20 | Damping opening distance |
| 6 | 1-60 | 20 | Damping opening distance |
| 7 | 0-120 | 2 | Hold-open time |
| 8 | 0-3 | 1 | Delay open time |
| 9 | 0-1 | 1 | Left and right directions of door opening |
| A | 0-1 | 1 | Fire alarm signal to open/close door |
| B | 30-200 | 90 | Opening/Closing angle |
| C | 0-30 | 20 | Locking force |
| D | 0-60 | 20 | Opeing braking force |
| E | 0-60 | 20 | Closing braking force |
 |
A safety feature is built-in to each door opener. When an obstacle is detected during the Operation of the opener,it will stop the opening or closing cycle immediately,until the opener is activated again and the obstacle is |
 |
| Manually open when power off |
