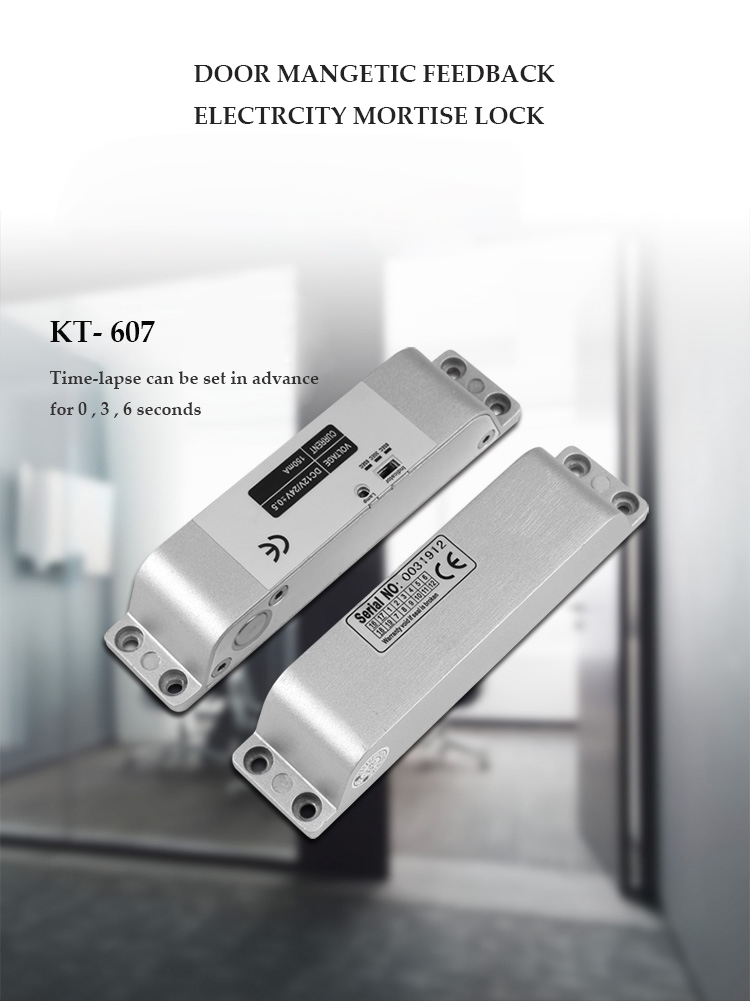

Olide Suface Mounting Electric Lock

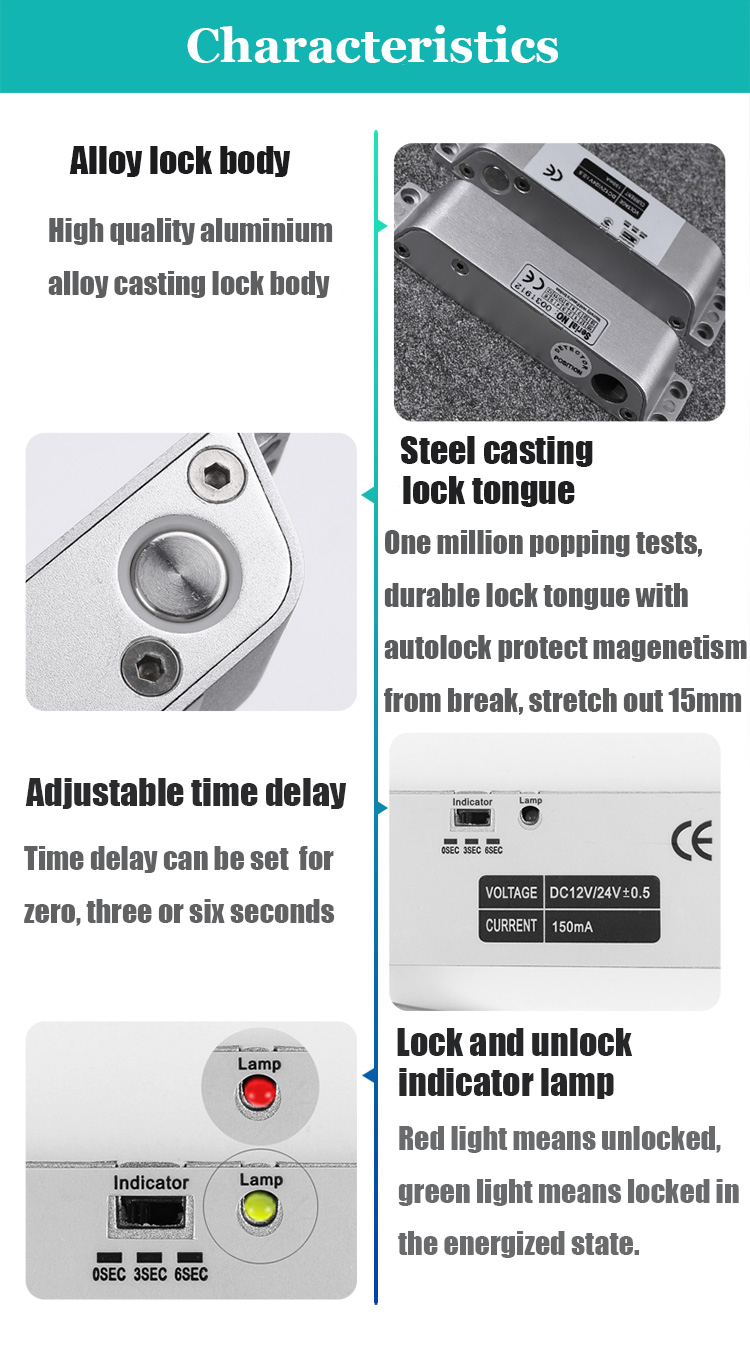

Olide Electric Lock Characteristics

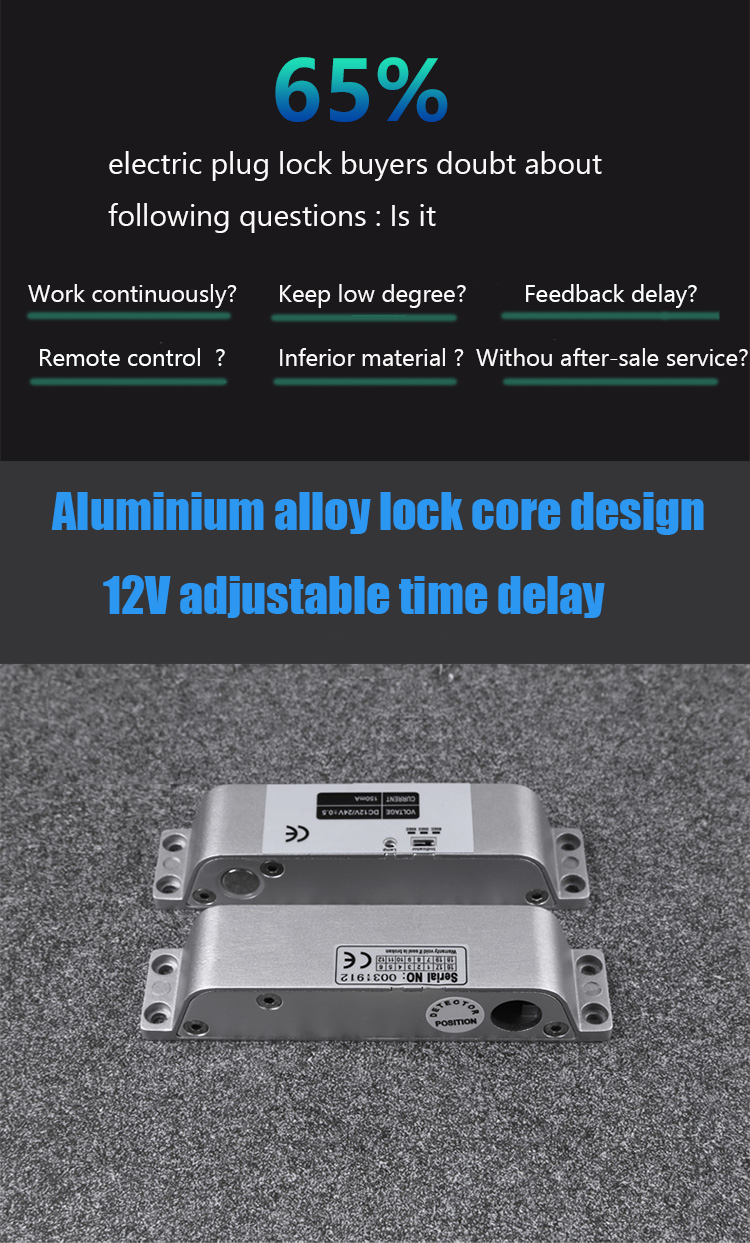

- Alloy Lock Body
High quality aluminium alloy casting lock body;

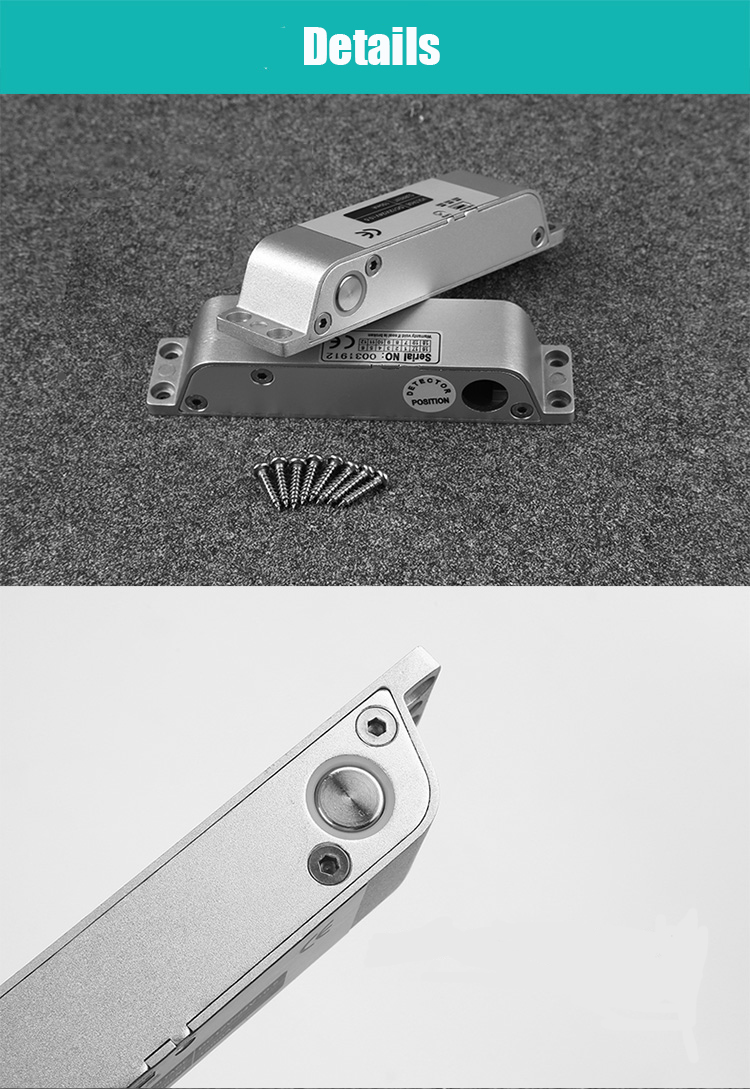

- Steel Casting Lock Tongue
One million popping tests, durable lock tongue with autolock protect magenetism from break, stretch out 15mm;
- Adjustable Time Delay
Time delay can be set for zero, three or six seconds;
- Lock and Unlock Indicator Lamp
Red light means unlocked, green light means locked in the energized state.

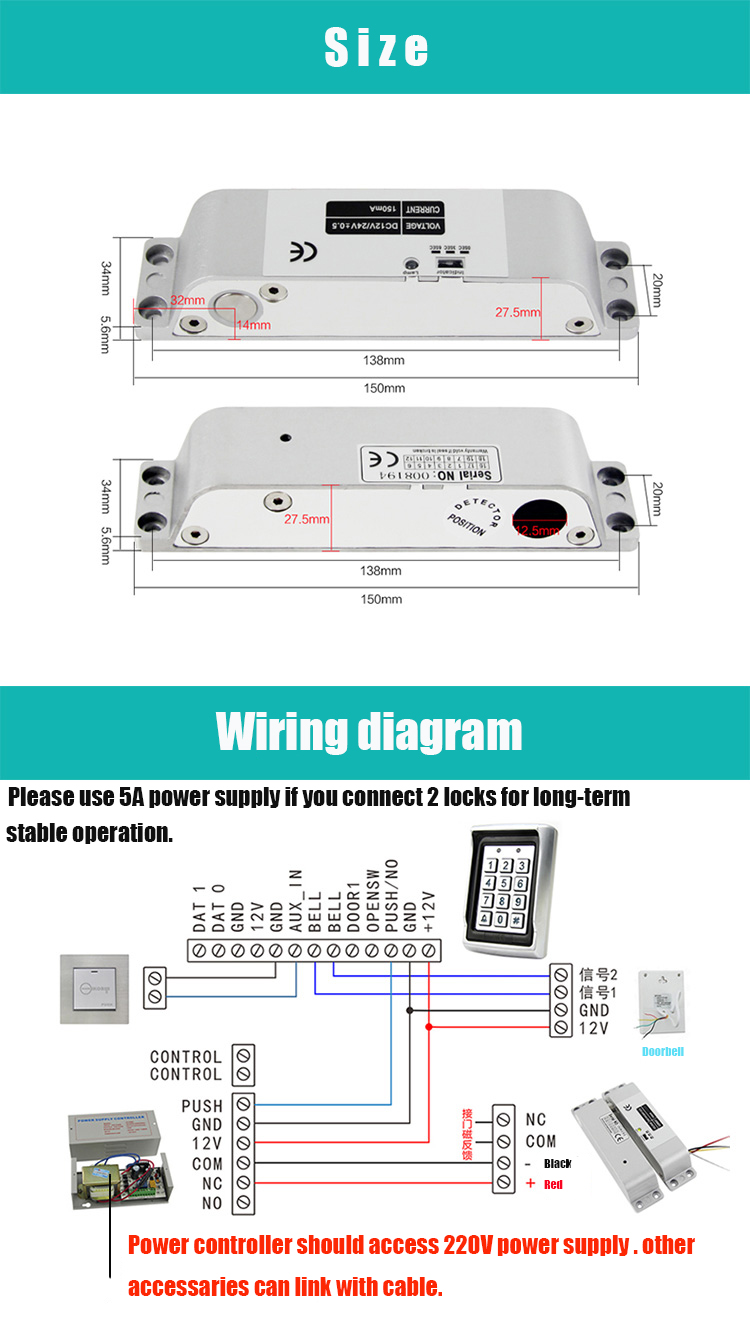

Product Size and Wiring Diagram
Installation Methods

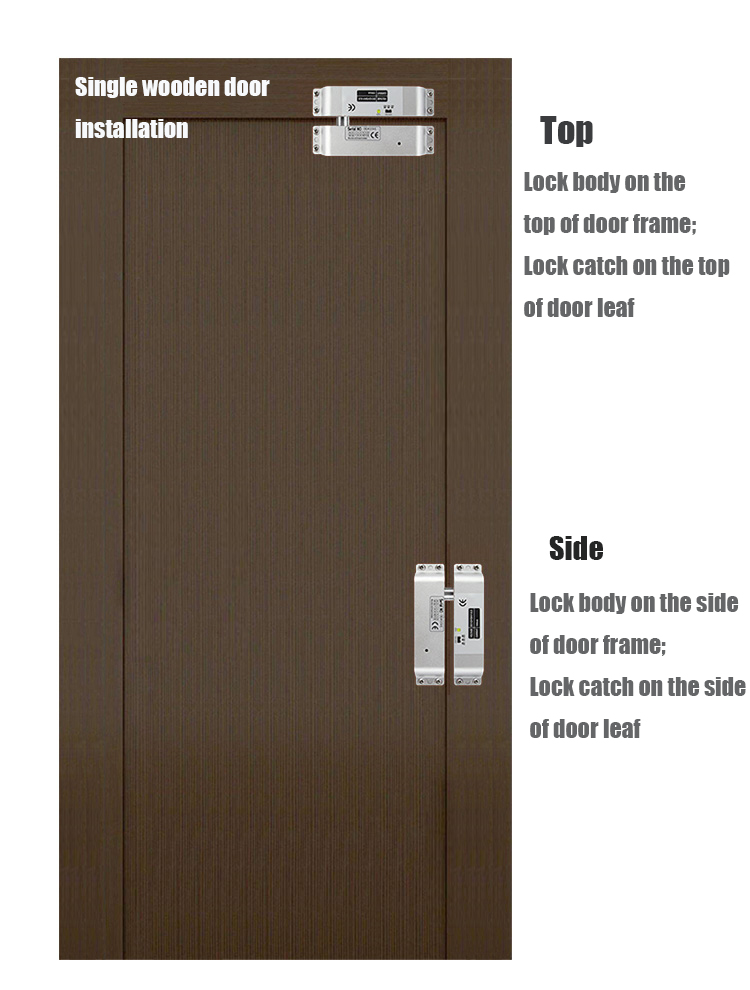

Single wooden door installation- TOP
Lock body on the top of door frame; Lock catch on the top of door leaf;
Single wooden door installation- Side
Lock body on the side of door frame; Lock catch on the side of door leaf;

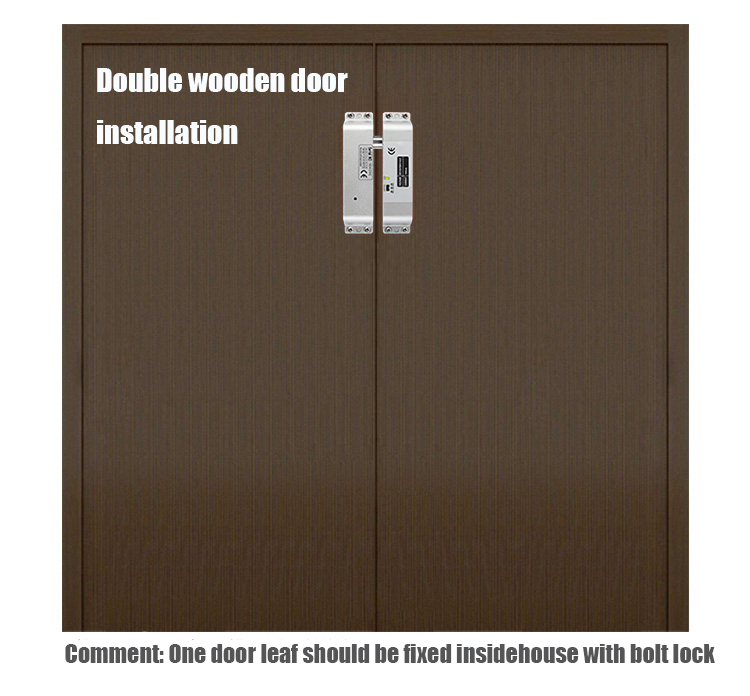

Double wooden door installation
Note: one door leaf should be fixed insidehouse with bolt lock
Packaging Details
- Unit Type: piece
- Package Weight: 2.0kg (4.41lb.)
- Package Size: 8cm x 5cm x 3cm (3.15in x 1.97in x 1.18in)
