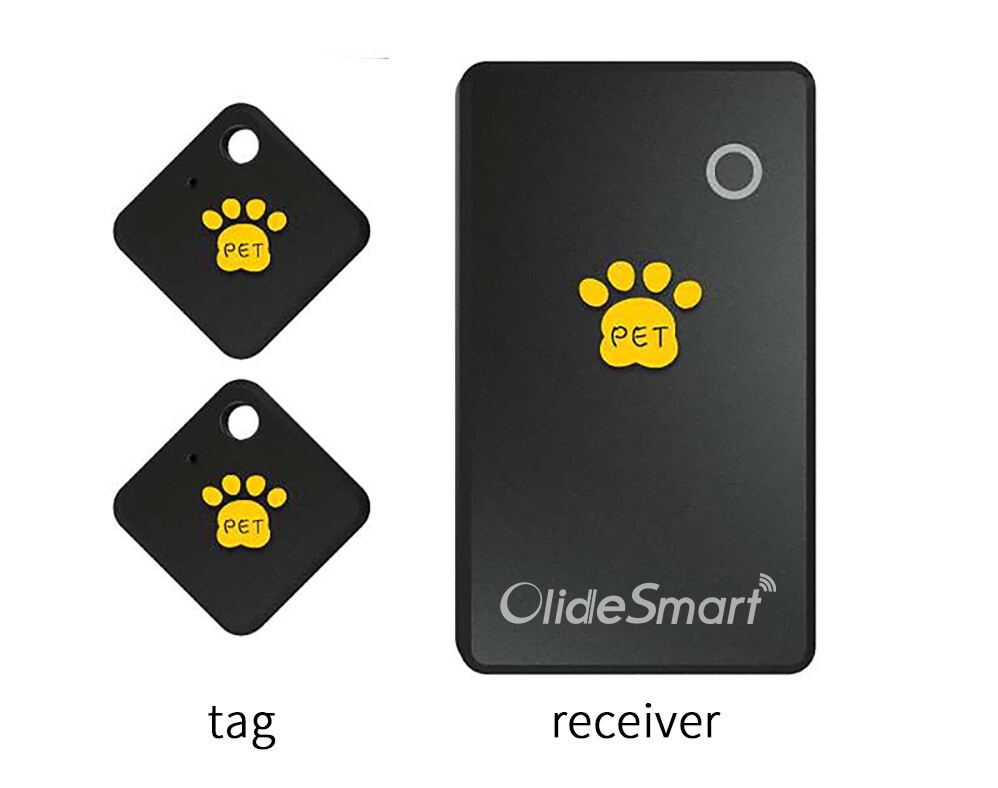

Olide RFID Pet Tag Sensor and Receiver Work with Automatic Door

Olide pet tag sensor and receiver uses RFID technology to communicate between your pet's tags and the RFID transmitter to activate your auto enabled door. It offers the highest security in preventing the chance of wild animals such as possums, raccoons, or your neighbors’ pets from activating your auto door system. It does not take into consideration that unwanted animals could be stalking closely behind your pet as they enter.

Olide RFID Pet Tag Sensor Features

1. The tag adopts waterproof design and has a compact appearance.

2. Three-gear sensing distance adjustable, more flexible.

3. Adopt dual frequency wireless signal control (125KHZ and 2.4GHZ )

4. The tag is low-power comsumption design, which makes battery life more durable.

5. The identifier adopts a wide voltage AC and DC power supply design, which is flexible in power supply.

Definition of Input and Output

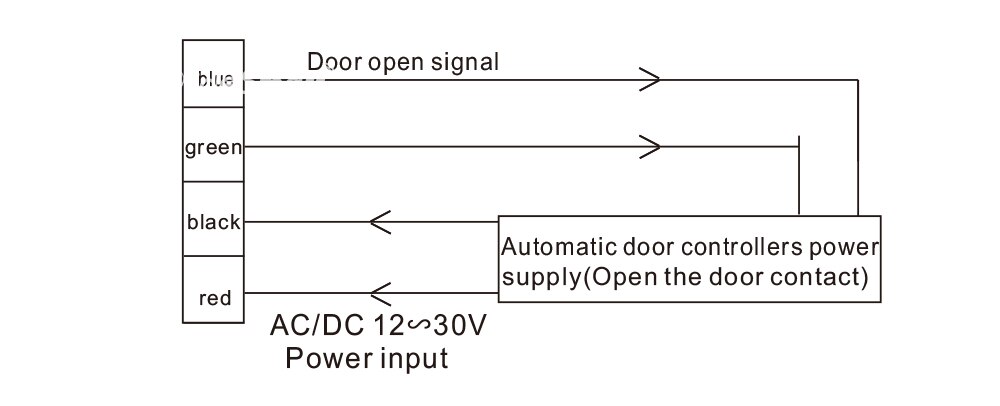

Wiring Diagram

Matching Method

1.Matching method for recognizer and tag:

(1).Once the recognizer is powered on, the red light is on. Press the recognizer function setting key for 1 second and then release, the blue indicator light flashes 3 times, matching successfully. Max 3 tags can be added.

(2).Delete method: Press recognizer setting key, red light turn to blue,blue light shining slowly in 5 seconds, after 10seconds blue light shinning quickly.

2.Setting tag sensing distance:

(1).Press and hold the tag setting key, in three seconds it jumps to next gear, and three gears in a loop. When the indicator flashes once, release for setting a short distance (about 1 meter)

(2).When the indicator light flashes twice, release for setting a medium distance (about 3 meters)

(3).When the indicator light flash three times, release for setting a long distance (about 5 meters)

Technical Specifications
