Olide Residential Sliding Door Opener Casa1 with Microwave Sensor

Olide Residential Sliding Door Opener Casa1 with Microwave Sensor

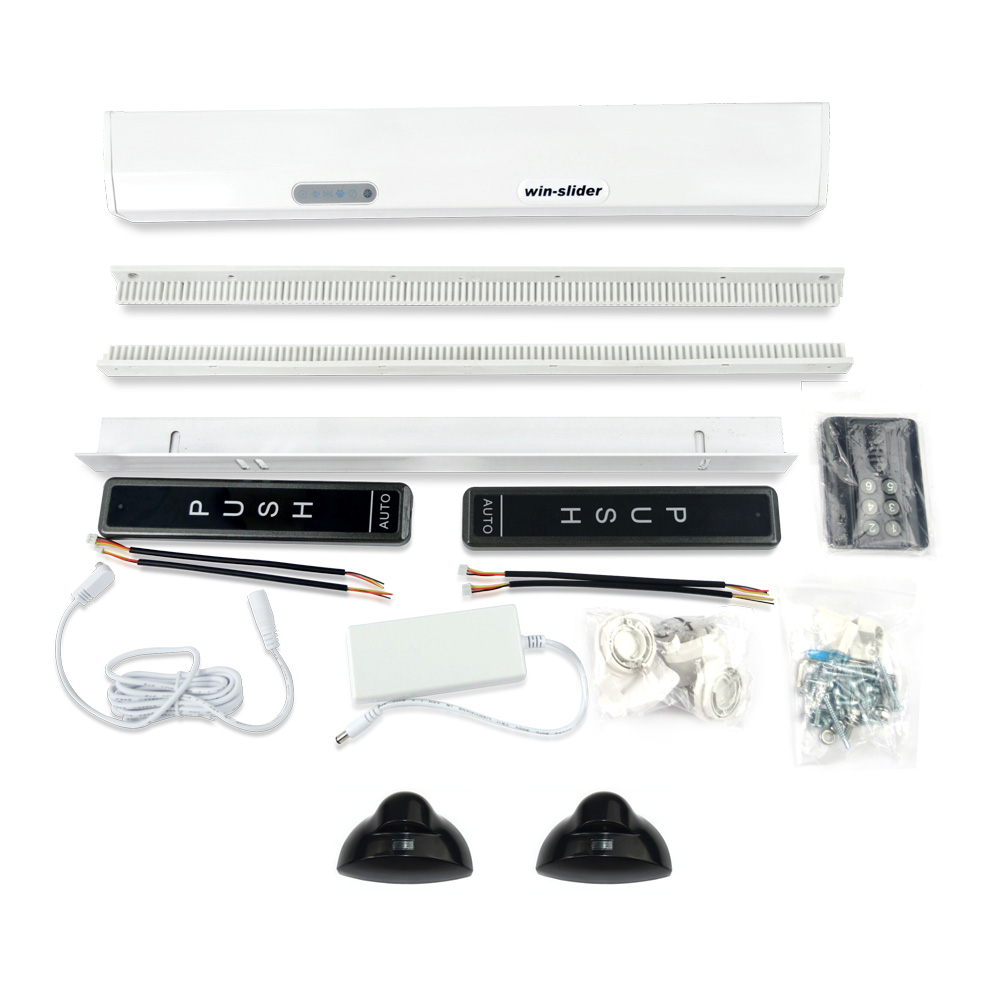

residential sliding door opener with microwave sensor black

Casa1 residential sliding door opener with microwave sensor, the door will automatically open, once the sensor detects the movement of the human body around the door. And sensor sensitivity can be adjusted.

Product Installation Video



Casa1 Residential Sliding Door Opener Features

  • Easy for install, without changes existing door structure.
  • Compact size, nice appearance and modern design.
  • System can apply with sensor, remote control, push button, pet switch, photocell, card reader, lock and so on.
  • Window and door mode can be switched Arbitrarily.
  • 433.92hz module, can be suit with smart-home.

Automatic Sliding Door Opener Casa1 Data Adjustment Key Instruction

residential sliding door opener

There are "speed", "opening time", "learning button", "learning LED" buttons, can help you adjust parameters quickly and accurately.

Casa1 Sliding Door Opener are Five Mode Available

residential sliding door opener

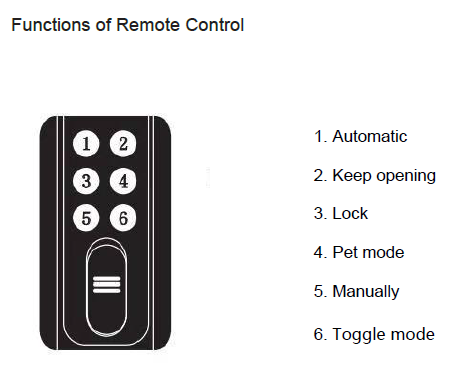

Can use wireless push button and remote control to open the door, also infrared sensors are available as an optional accessories.

How to set up remote control/wireless push button

1. ADD:

Keep press learning button 3 seconds till the indicator turn blue, then press any button of the remote/wireless push button, learning is done after indicator flash 3 times.

2. Delete:

Keep press learning button till indicatorturn flash from blue, after indicator flash 6 times, all remote/wireless push button is deleted.

remote control for residential sliding door

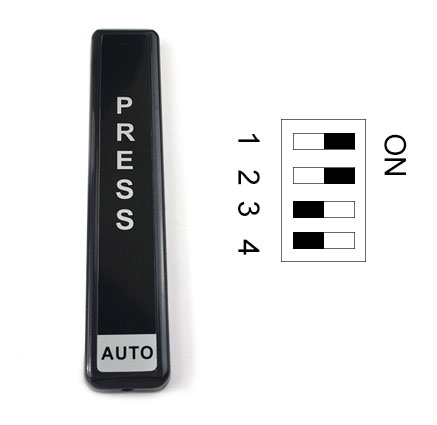

wireless push button

Please carefully checking dip switch selection is same as photo shown during learning process.

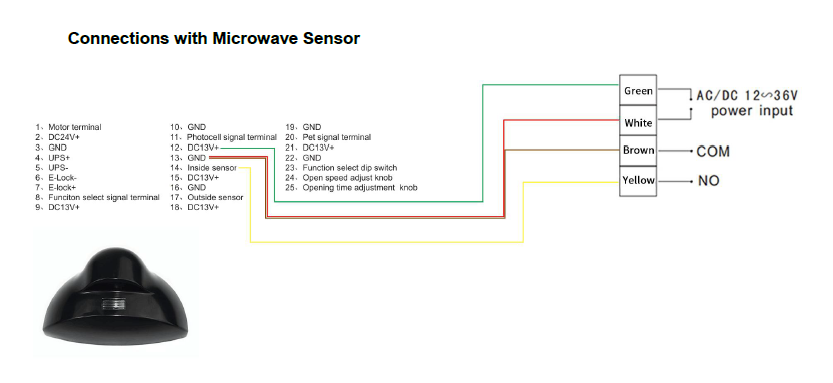

Wiring Diagram with Microwave Sensor

casa1 wiring with microwave sensor
