Olide Automatic Electric Single Chain Skylight Windows Opener Motor Actuator

PRODUCT DETAILS

  • Fob Price: US $ 95 - 135 / Set
  • Model: AM56-AC
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 24 Months

Olide Automatic Electric Single Chain Skylight Windows Opener Motor Actuator

Brand Name: Olide Type: Automatic window opener
Model Number: AM56 Country of origin: China
is_customized: Yes Travel distance: 100mm to 400mm(adjustable)
Rated power: 40W Push/pull force: 260N/250N
Speed: 10m/s IP Class: IP42

The chain type electric window opener is suitable for electric swing window, electric cashment window, electric window opening, etc.

It is especially suitable for places where window height is not convenient for manual operation. With various automatic control systems, it can realize manual on/off, automatic smoke on/off, automatic temperature on/off, etc.

One complete set include motor, remote control, mounting accessories.

Receiver built in window opener

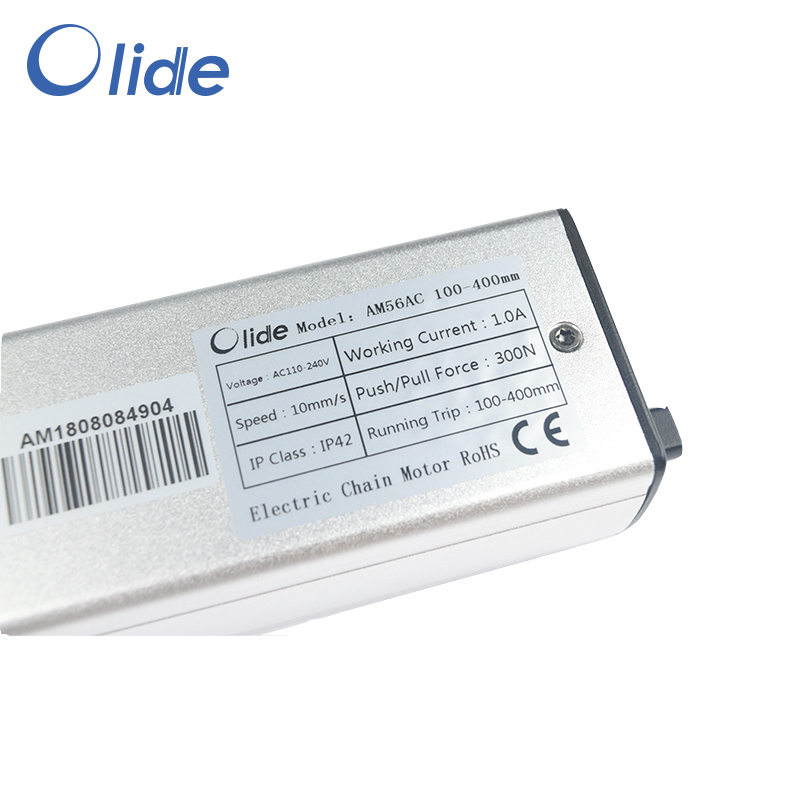

Receiver built in window opener main 2

Receiver Built-in Window Closer Function

  • Different stroke can be selected by adjusting the knob switch, the maximum stroke can reach 400mm;
  • Suitable for windows with a width as small as 470mm;
  • Blocking stop function, protecting the safety of the system and the user;
  • Electronic limit function, motor built-in overload, over-current protection device;
  • Life can reach 10000 opening and closing movements;
  • The chain adopts double layer stainless steelsheet, running stably and smoothly;
  • The shell is made of sand blasting aluminum profile, sides end covers and mounting brackets are all zine alloy precision die castings;
  • The internal structure is fixed by two fire-proof ABS and the guide rail is POM material to achieve higher safety factor and mute effect;
  • Easy to install and disassemble, more humanized design.

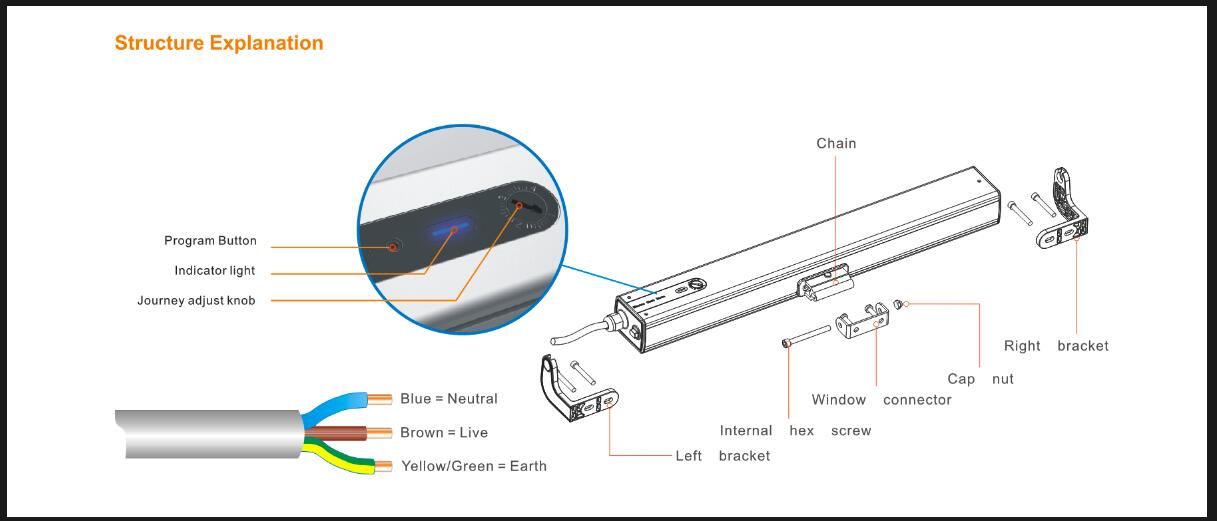

Automatic Window Opener Structure Explanation

Receiver build in automatic window opener

Receiver build in window closer

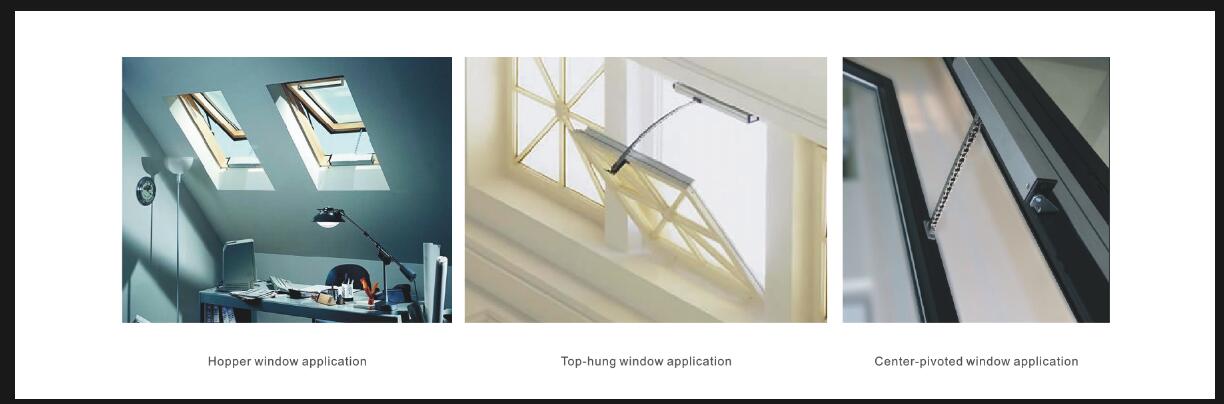

Suitable Windows Application

Receiver build in electric window closer
