Olide Autoamtic Handicap Door Operator with Slim Stainless Steel Push Plate Switches

PRODUCT DETAILS

  • Fob Price: US $ 385 - 1300 / Set
  • Model: Olide-120B
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 5 years

Olide Autoamtic Handicap Door Operator with Slim Stainless Steel Push Plate Switches

Olide automatic handicap door operator with rectangle slim stainless steel push plate switches, wireless and wired type are optional. Normally open position can be selected on switch, make sure it's safety for disabled passing the way.

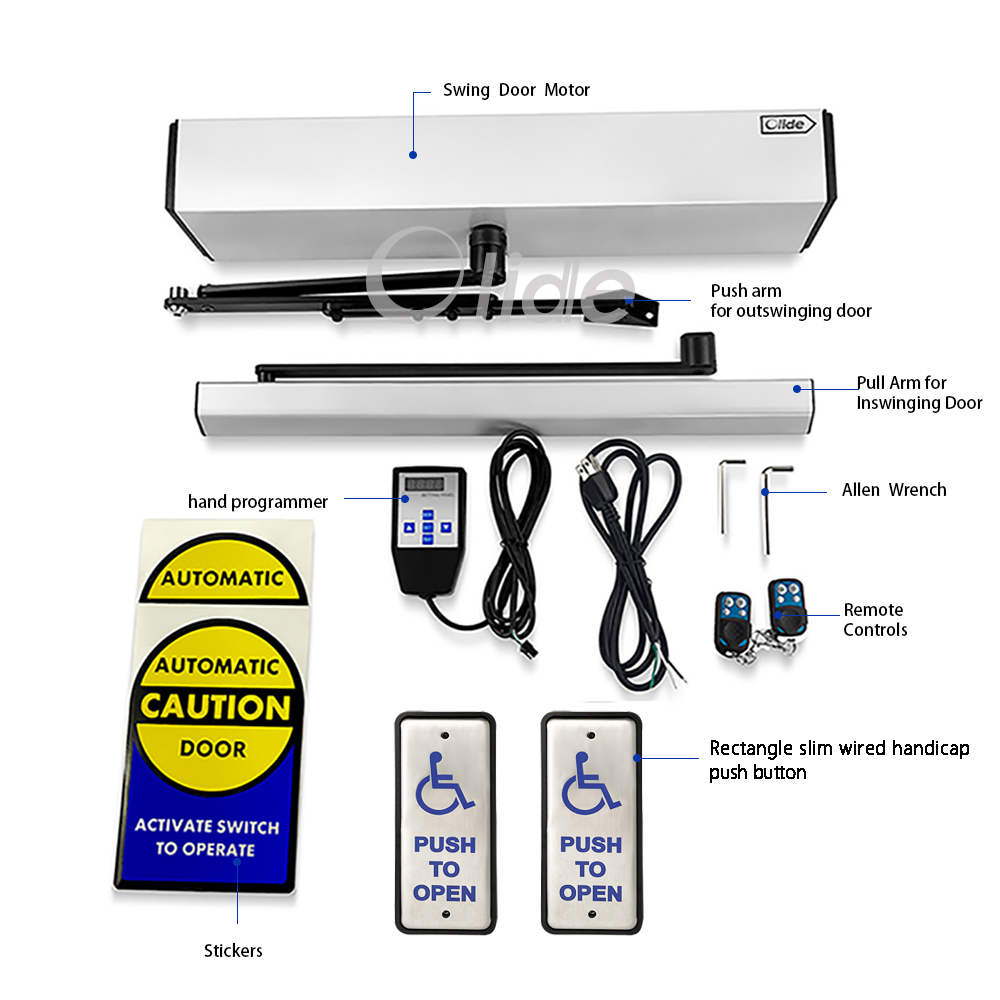

olide automatic handicap door operator

Olide automatic handicap door operator 1

Rectangle Slim Wired Handicap Push Button Features

  • Narrow and long panel design, the whole panel is effective when pressed.
  • Button contact output, can be used in conjunction with automatic doors and access controller.
  • The stainless steel stamping panel is strong and durable.
  • Hidden panel fixing screw setting, the panel surface is neat and beautiful.

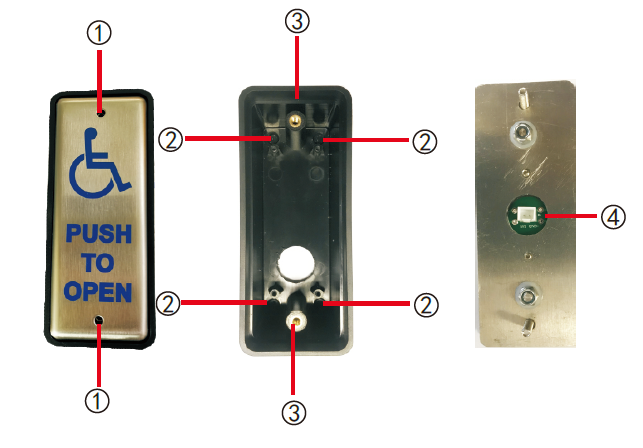

olide slim wired handicap push button

1.Hidden holes for fixing screws on the panel, through which a hexagon socket screwdriver can be inserted into the screw.

2.Fixed screw holes.

3.Panel mounting screw holes.

4.Wire output terminal.

Olide-120B Automatic Handicap Door Operator Features



  1. Wide voltage design, 100-240V voltage is available;
  2. Microcomputer controller, more intelligent. Several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;
  3. Multi-function interface.It can connect with the electronic lock, passive infrared sensor, push button, wifi switch etc... Can meet the different needs of different customers;
  4. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation;
  5. Equipped with remote control, can be controlled within 10 meters;
  6. Suitable for wooden door and aluminum framed door, and doors with frame, max. bearing door weight is 120kg;
  7. Easily adjust parameters with hand programmer, like closing/opening speed, force, and open direction, etc.

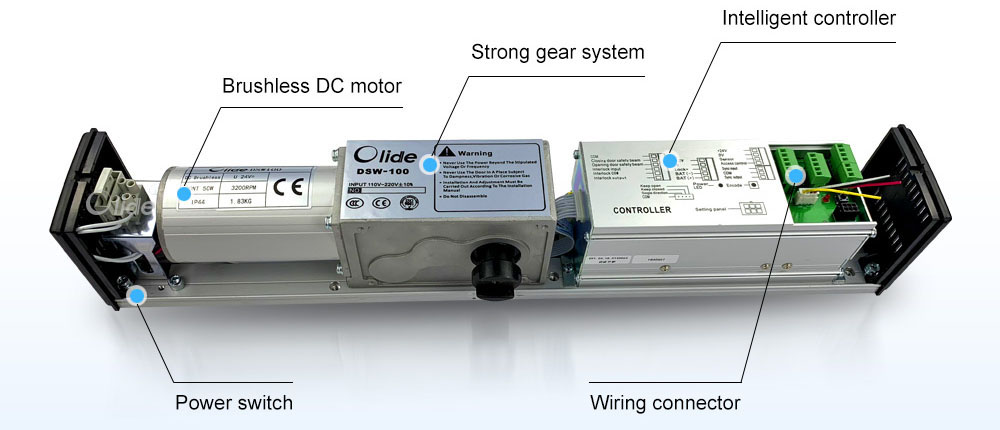

automatic swing door opener with hand programmer 3

hand programmer instruction

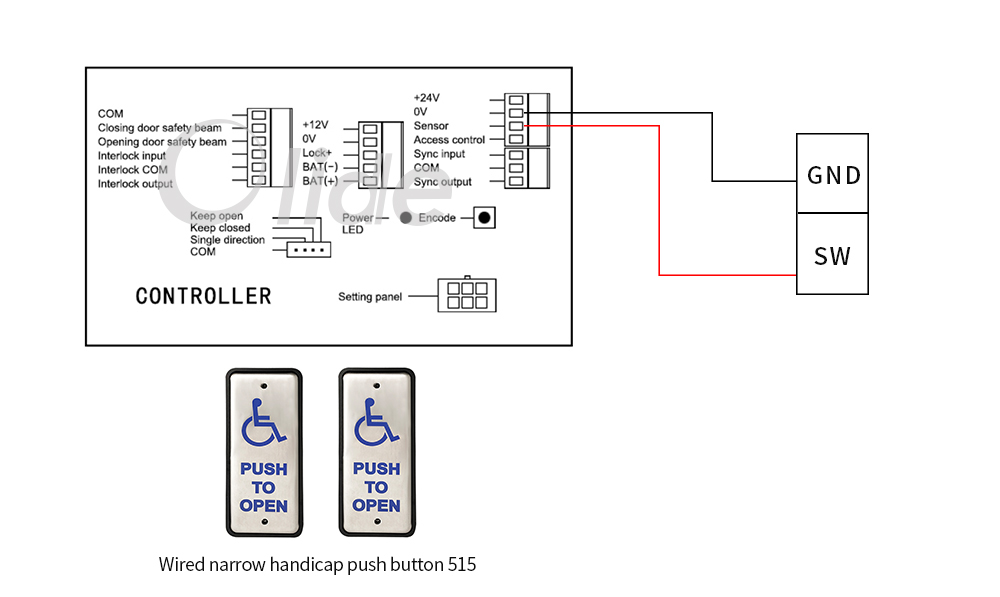

Wiring Diagram with M-515 Wired Slim Handicapped Stainless Steel Switch

Olide-120B wiring diagram with M-515 wired slim handicapped stainless steel switch

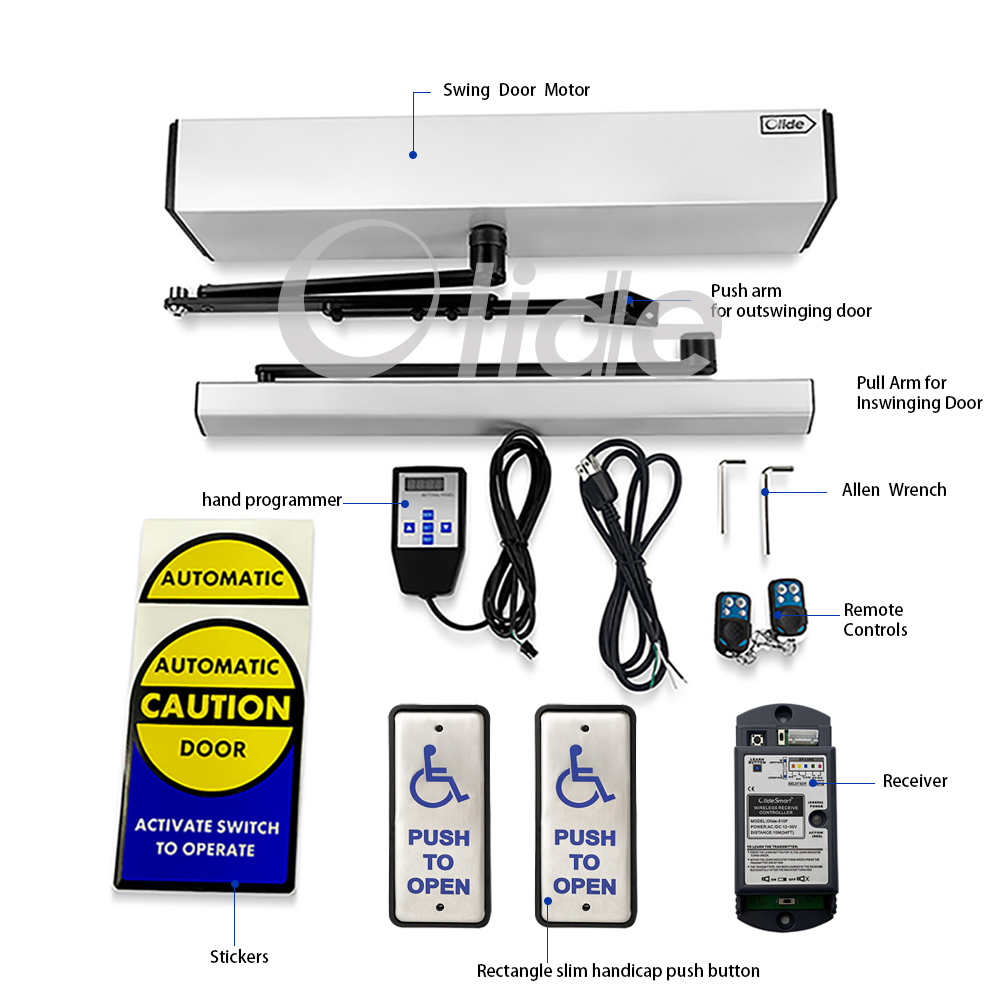

Wiring With M-511 Wireless Slim Handicapped Stainless Steel Switch

Olide-120B wiring with wireless slim handicapped stainless steel switch
