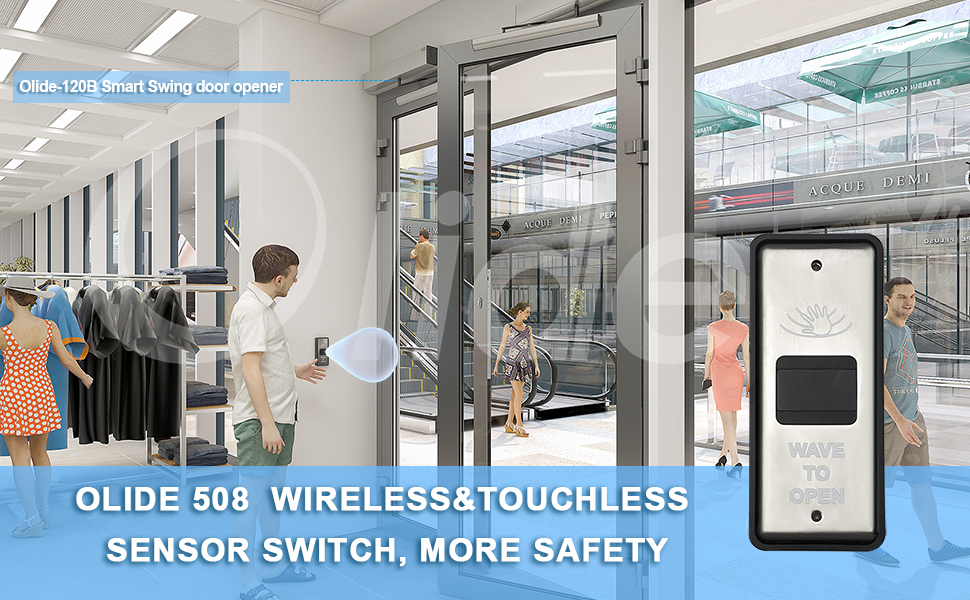

Olide-508 Wireless Slim Touchless Activation Swtiches

Olide-508 Wireless Slim Touchless Activation Swtiches

Olide-508 Wireless Slim Touchless Activation Swtiches

  • Narrow panel design, more flexible installation;
  • Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference;
  • Non - contact induction with hands or reflective objects, clean and hygienic;
  • The induction distance is adjustable from 3-30cm. It can be adjusted for different occasions;
  • High sensitivity infrared , quick response;
  • Wireless transmission adopts 2.4g wireless communication technology, with good frequency consistency and high wireless transceiver stability;
  • Low power consumption sensor panel design, long battery life;
  • Receiver large capacity output, can be used with automatic door, and access control;
  • After receiving the signal, the door opening signal is output for 1.5 seconds. It is equipped with LED indicator;
  • Receiver wide voltage input design, 12 ~ 30V DC power input.

Technical Specifications

Receiver

Power supply:  DC12-30V
Static current:  30mA
Action current:  74mA(DC12V power supply)
Main contact capacity(wireless receiver):                         1A    24VDC

Wireless switch

Power supply:  3V(2pcs AA batteries)  Static current:  <=80uA
Battery life:  200times/day, can use 250days  Emission current:  10mA
Infrared modulation frequency:  38KHz  Infrared scanning interval:  100ms
Response time:  <=130ms  Working temperature: -42°C-45°C
Working humidity:  10-90%RH
Launch distance:

More than 30meters in the open area, partition wall

or metal shielding environment only 10 meters

Size:

121mm(L) x 51mm(W) x 45.5mm(H) (panel)

110mm(L) x 30mm(W) x 15mm(H) (receiver)



Note: there is slim wired version available
