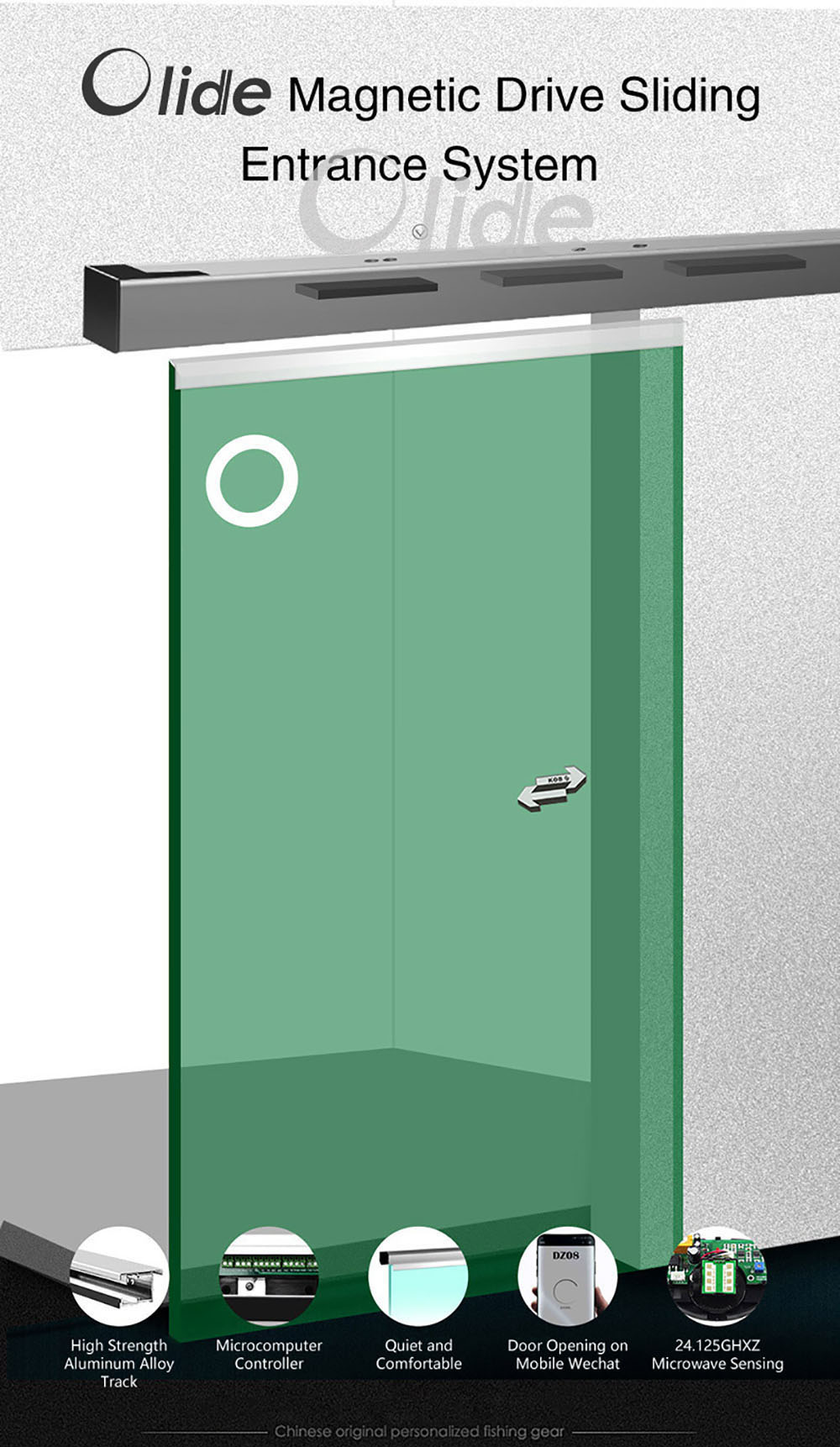

Olide Maglev Automatic Door Opener , Maglev Sliding Door Opener
Olide Maglev Automatic Door
After the suspended magnet, automatic door are powered on, they will be attracted with the suspended magnet of the guide wheel, serving a function of levitation without noise, slipping smoothly.
What's Maglev Automatic Sliding Door ?
Maglev automatic door utilizes the principle of magnetic field :
Like poles repel , unlike polesattract to preduce thrust and tension
through magnetic field transformation to make magnetic field
constantly move. Olide latest release of DZ-08 Maglev Automatic
door takes full advantageof this principle to achieve our goals.

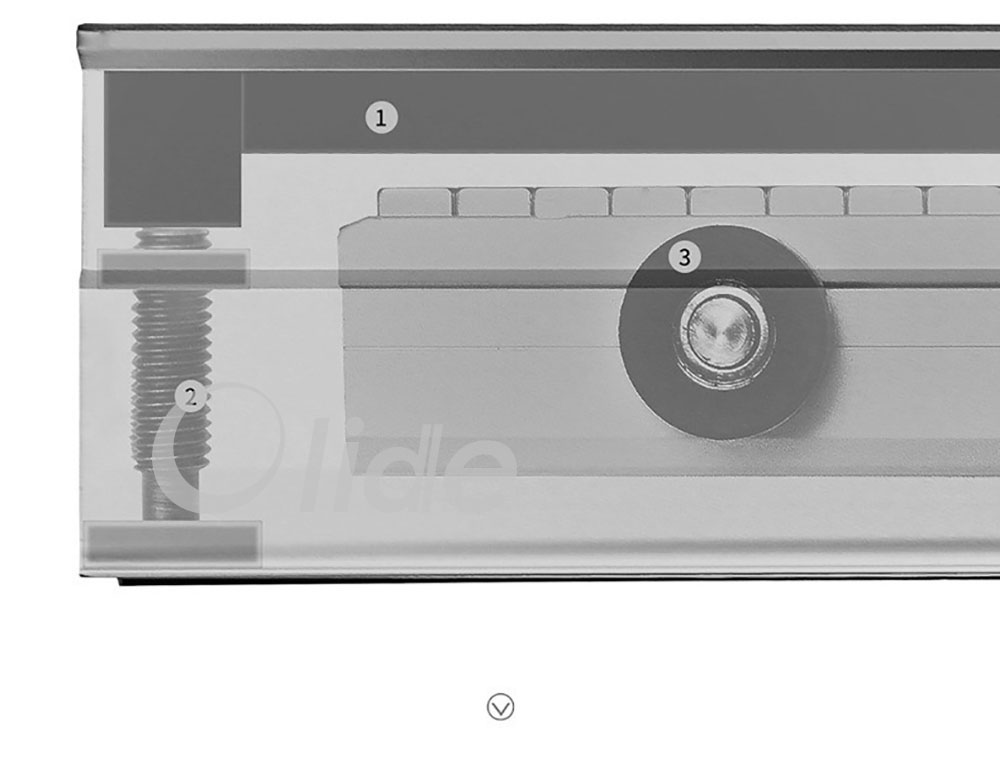

Detailed Instruction for Disassembly of Magnetic Drive Automatic Door
① After the suspended magnet, automatic door are powered on, they will be attracted with the suspended magnet of the guide wheel, serving a function of levitation without noise, slipping smoothly.
② Stopper ③ Guide wheel

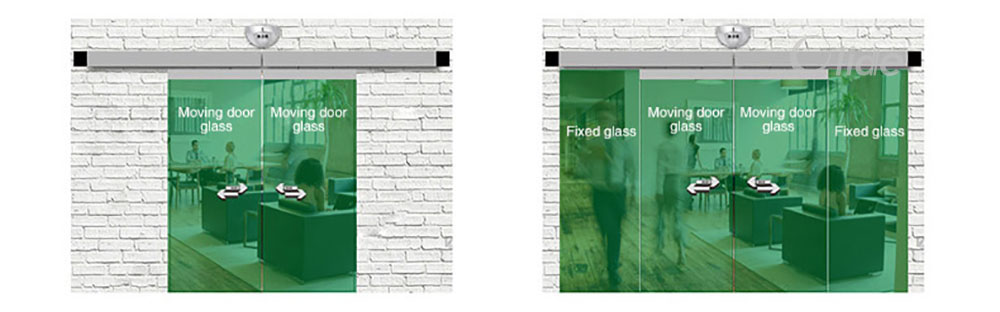

Double Door Mode
► Doors are generally divided into single-opening and double-opening, and two sets of unit shall be purchased for double levitation automatic door for collocation use, please refer to the mode of door opening. (As shown in the figure)

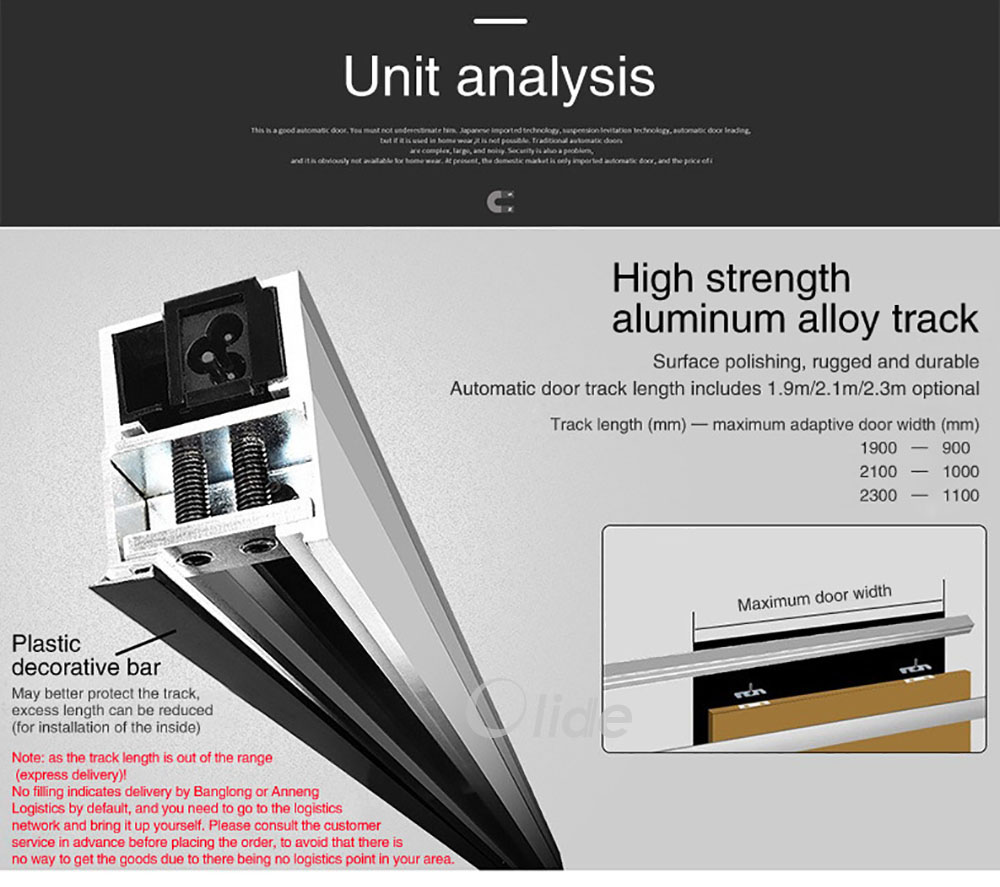

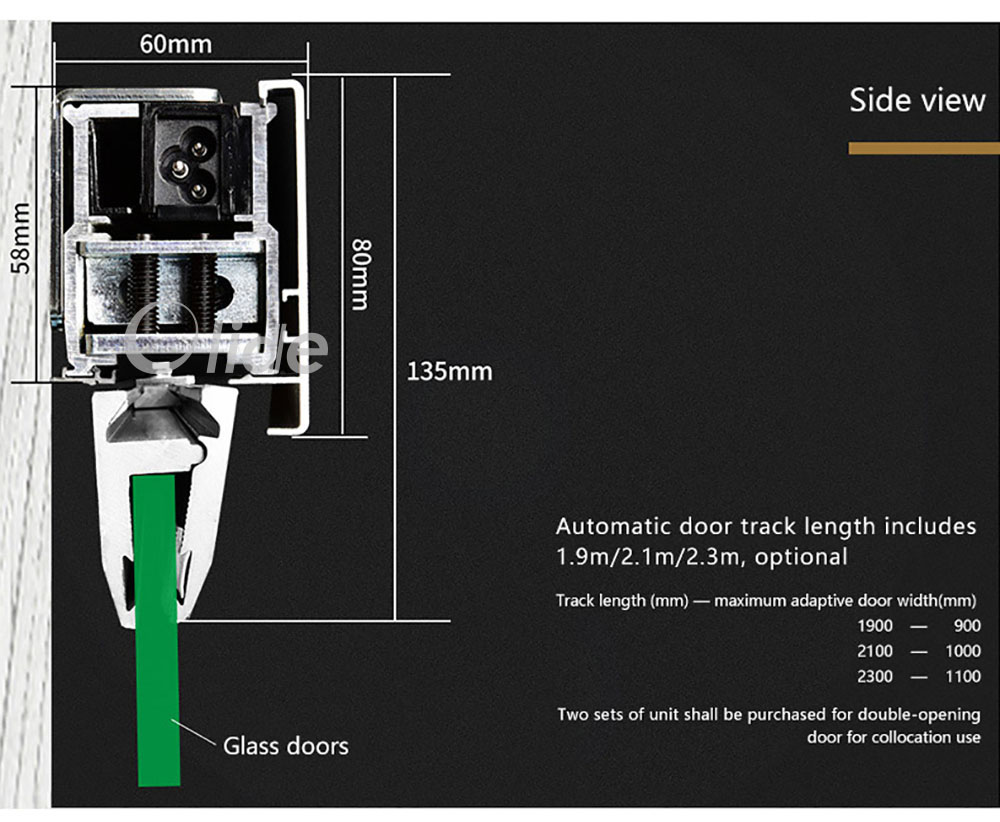

| Track size: | 1.9m | 2.1m | 2.3m |
| Door fan weight: | 50-100KG | 50-100KG | 50-100KG |
| Door fan width: | 800-900MM | 900-1000MM | 1000-1100MM |
| Supply voltage: | 200VAC±10% 50/60Hz | ||
| Rated power: | 80W | ||
| Standby power: | 3W | ||
| Opening speed: | 15~50Cm/s (adjustable) | ||
| Closing speed: | 15~50Cm/s (adjustable) | ||
| Opening time: | 0~20S (adjustable) | ||
| Installation mode: | External hanging type | ||
| Operating ambient temperature: | -20℃- + 50℃ |

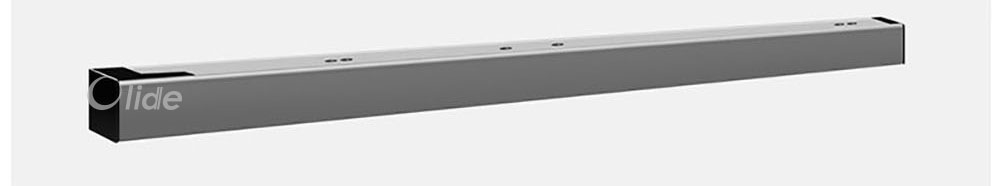

01 Standard Set
- Single Door Magnetic Drive Unit (Track Length l.9m/2.lm/2.3m)
Suitable for installation of wooden doors and framed glass doors

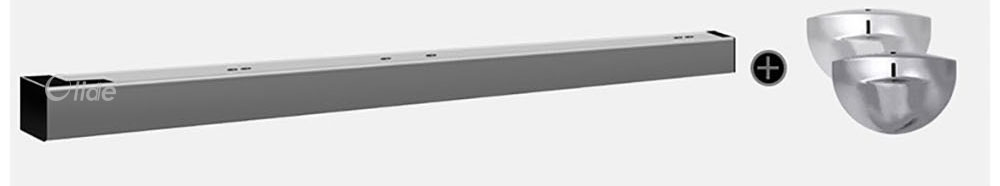

02 Standard Set+ Microwave sensor
- Single Door Magnetic Drive Unit (Track Length l.9m/2.lm/2.3m)
Suitable for installation of wooden doors and framed glass doors
03 Standard Set+ Microwave sensor + Long Glass Clamp
- Single Door Magnetic Drive Unit (Track Length l.9m/2.lm/2.3m)
Suitable for installation of frameless glass doors
04 Standard Set+ Microwave sensor+ Long Glass Clamp
- Single Door Magnetic Drive Unit (Track Length l.9m/2.lm/2.3m)
Suitable for installation of frameless glass door

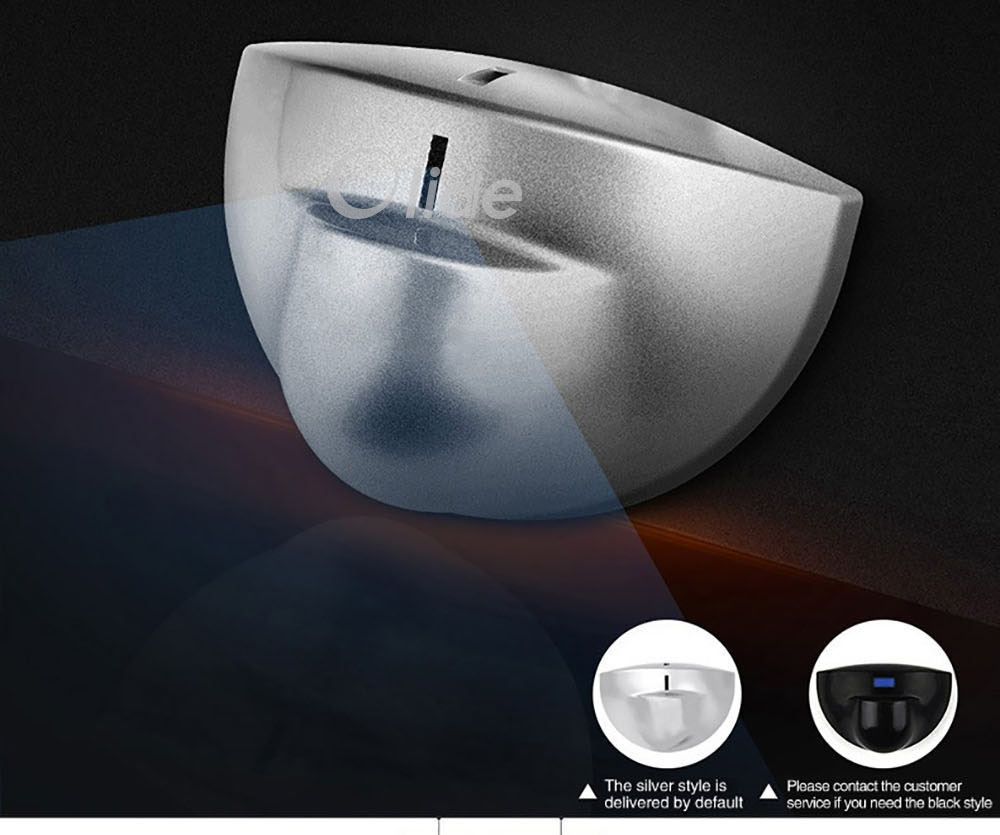

Microwave induction and intelligent scanning
24.125GHZ Microwave sensing module adopts an intelligent and optimized detection and control circuit which is not affected by environmental factors such as temperature, height, humidity, etc. Accurate area induction regulation, reliable working performance. Faster and more stable operation. Emission frequency up to 24.125GHZ, sensitive and accurate induction, high speed, strong anti-interference property.

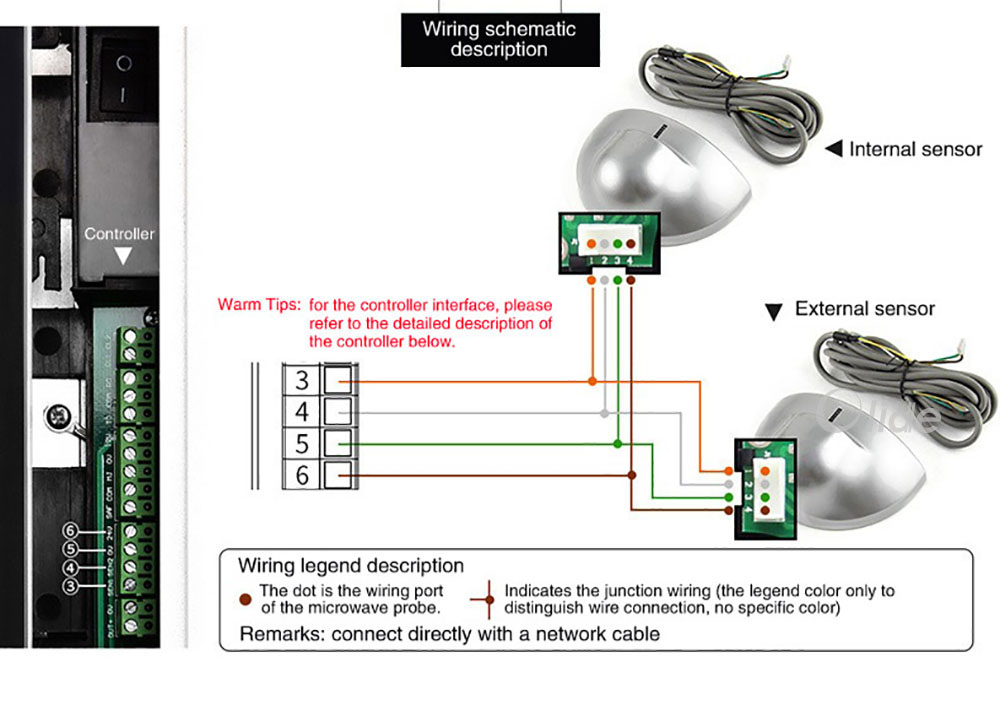

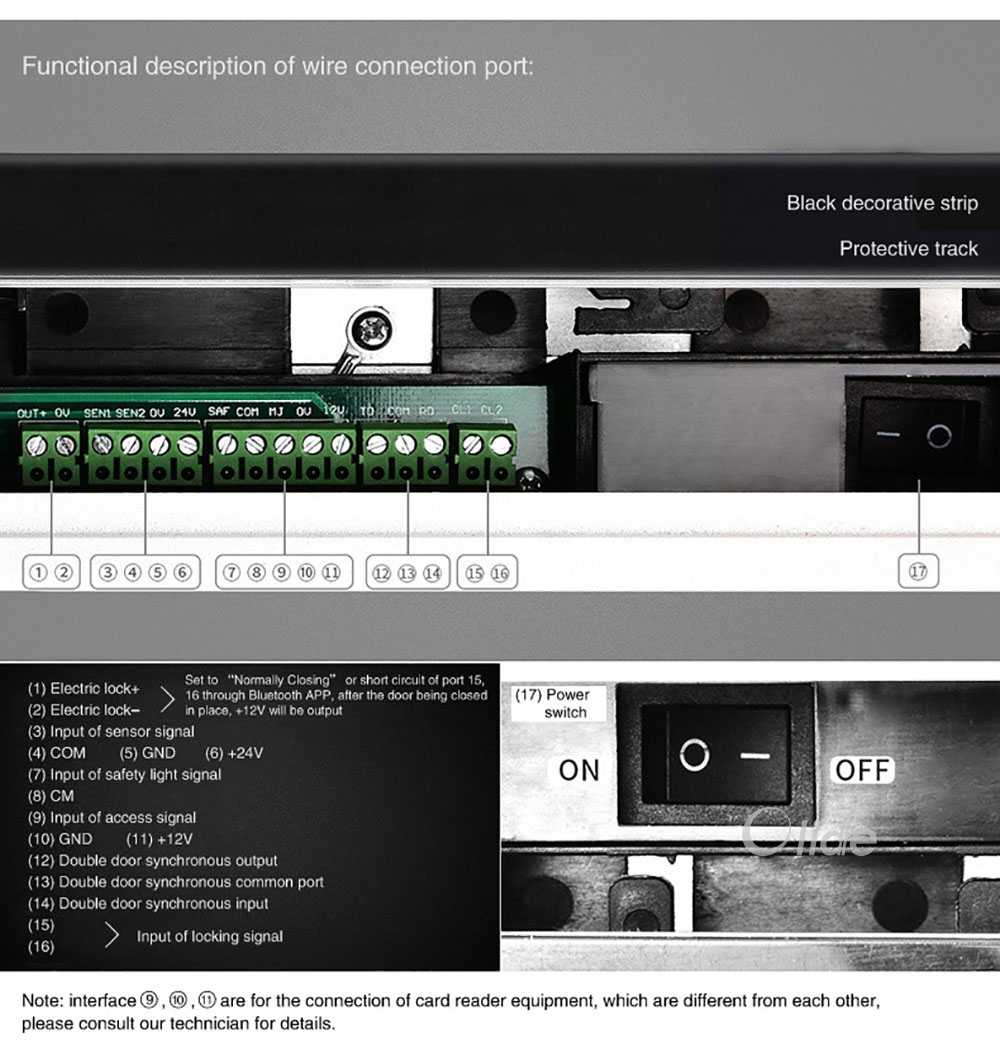

Wiring Schematic Description

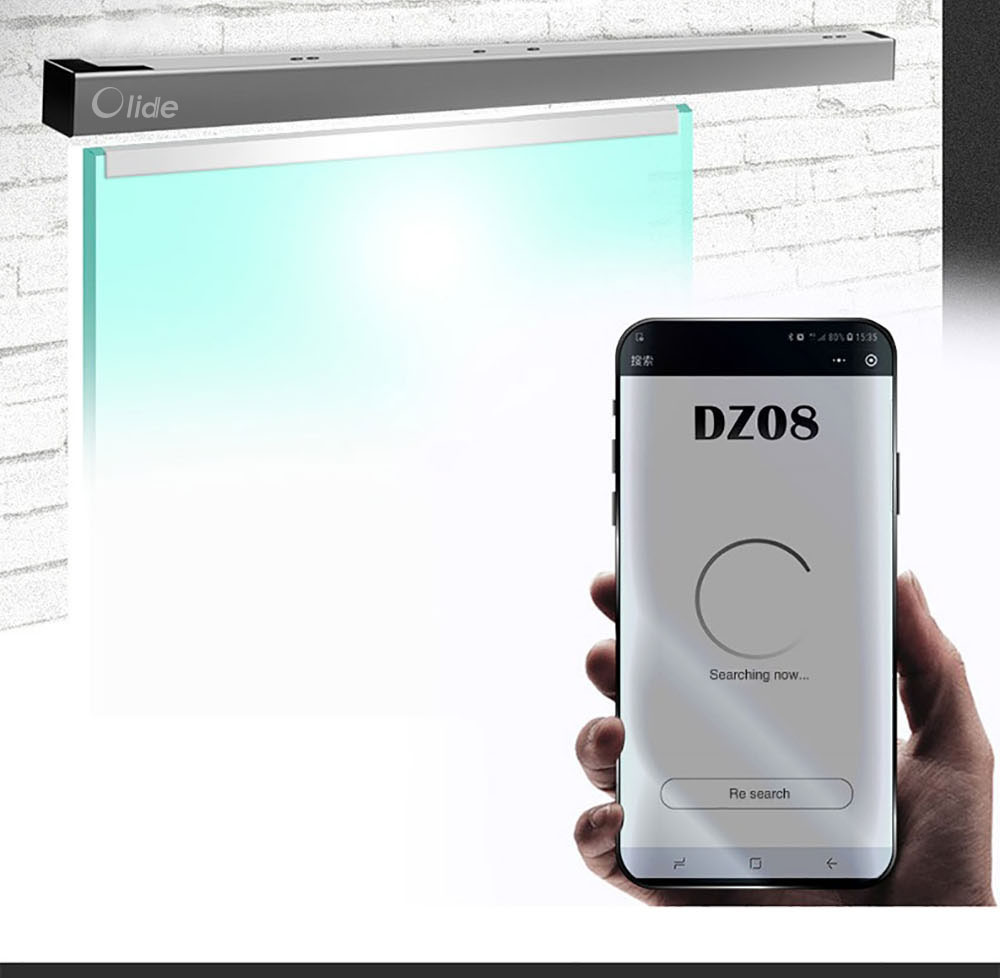

WeChat Bluetooth debugging and door opening
Opening can be achieved through Bluetooth WeChat, intelligent and convenient
Open WeChat to search device with Bluetooth for debugging, and the door state can be set as normally open, normally close, or automatic as needed

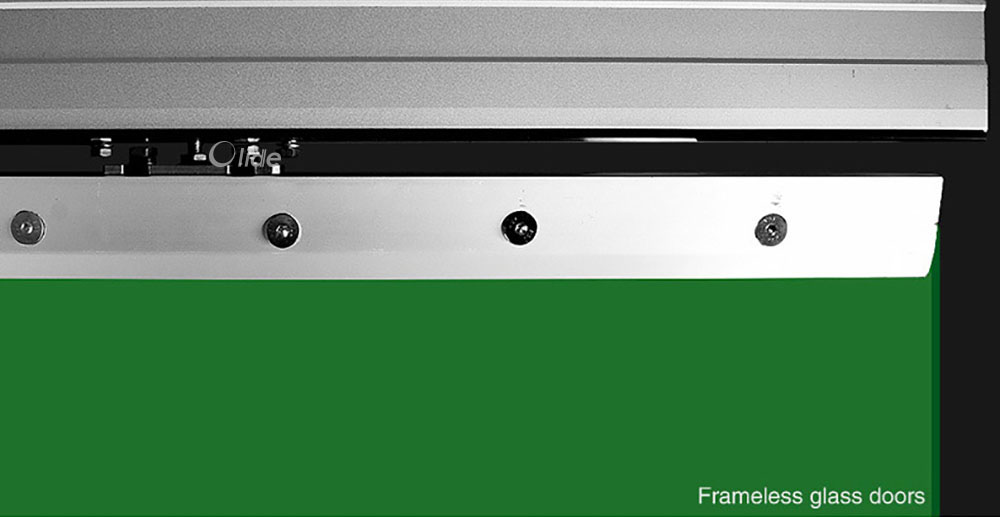

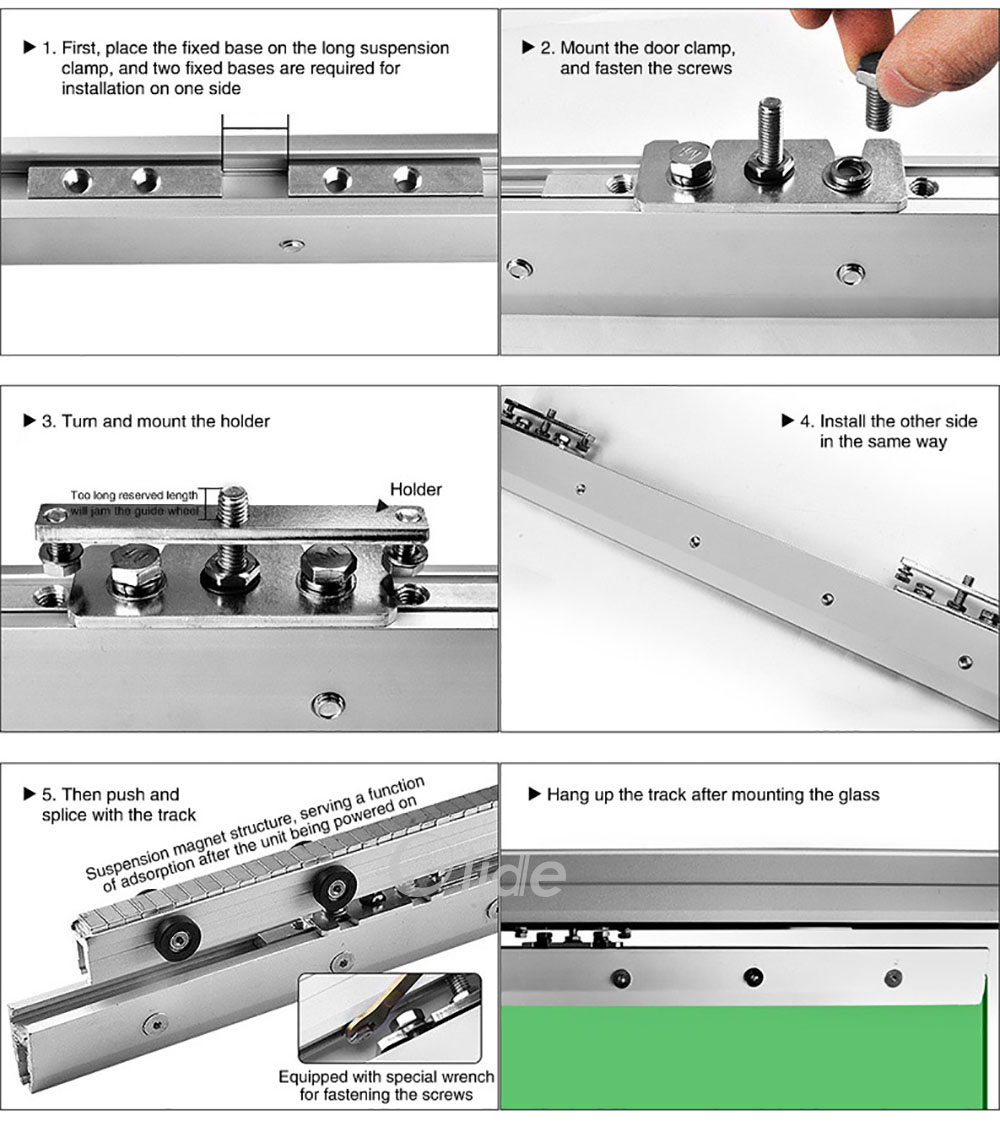

Installation of frameless glass doors:
The package equipped with glass suspension clamps shall be purchased for the installation of frameless glass doors

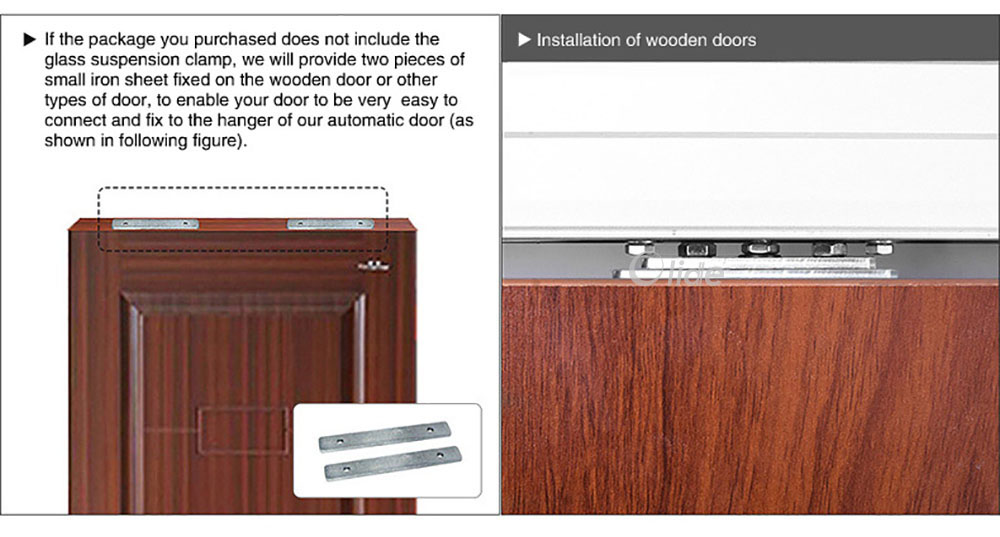

Framed doors and wooden doors

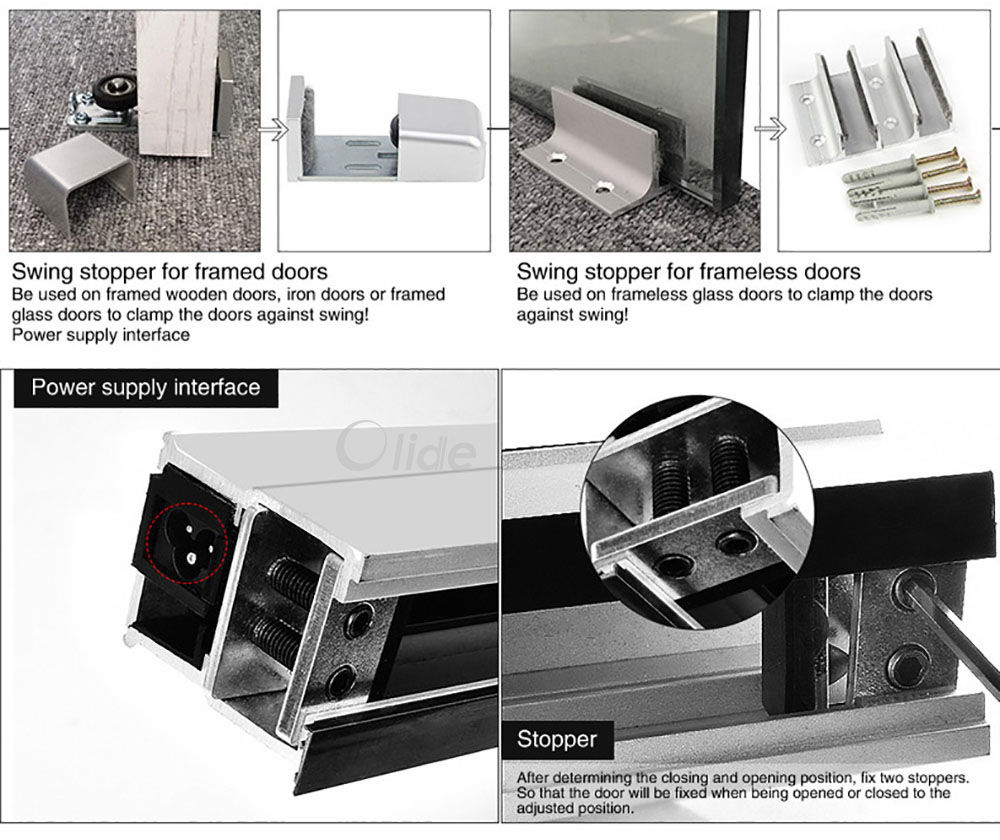

Accessories of swing stopper
► If the package you purchased does not include the glass suspension clamp, we will provide the framed swing stoppers, and if the package you purchased includes the glass suspension clamp, we will provide the frameless swing stoppers, (as shown in following figure).

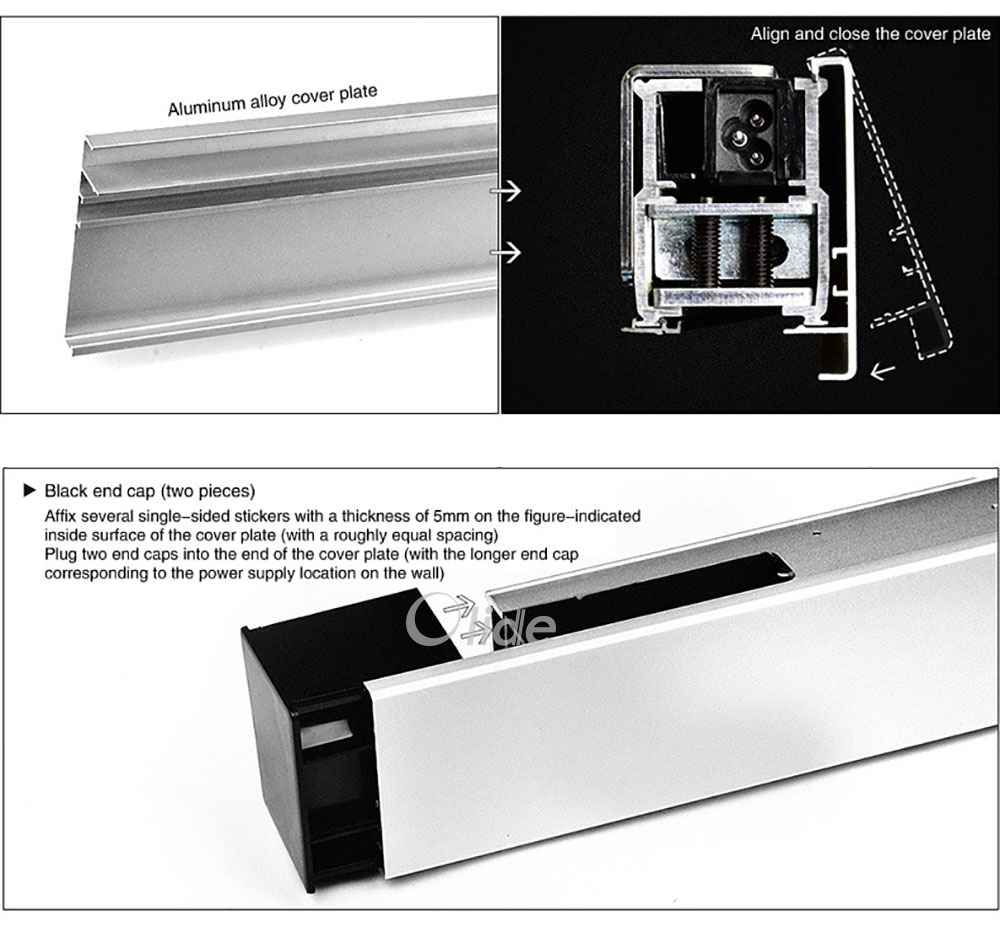

Installation of cover plate and end cap
Maglev Door can be widely applied to pulic place like office ,
restaurant , even home. It suits various gates meets multiple
needs.

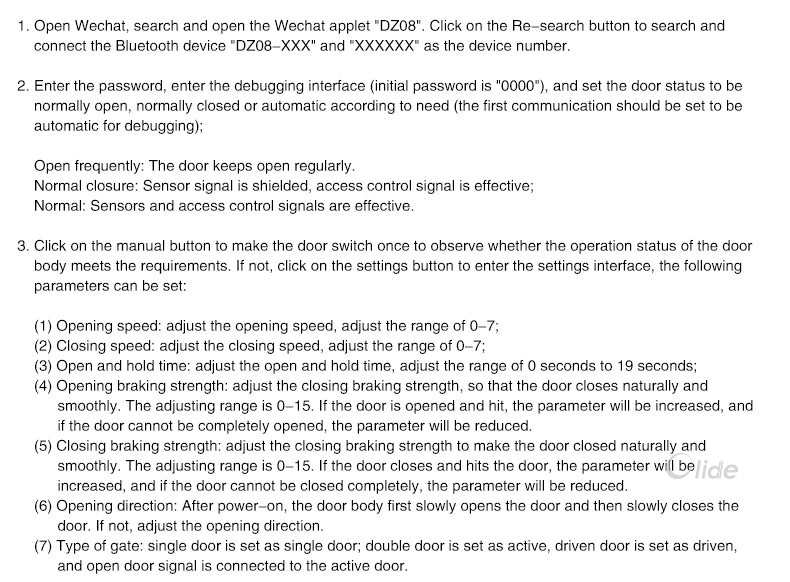

Bluetooth debugging Instruction
Factory Display
