Hand Sensor Switch,Switch For Automatic Door Access Control System

Door Exit Hand Sensor Switch

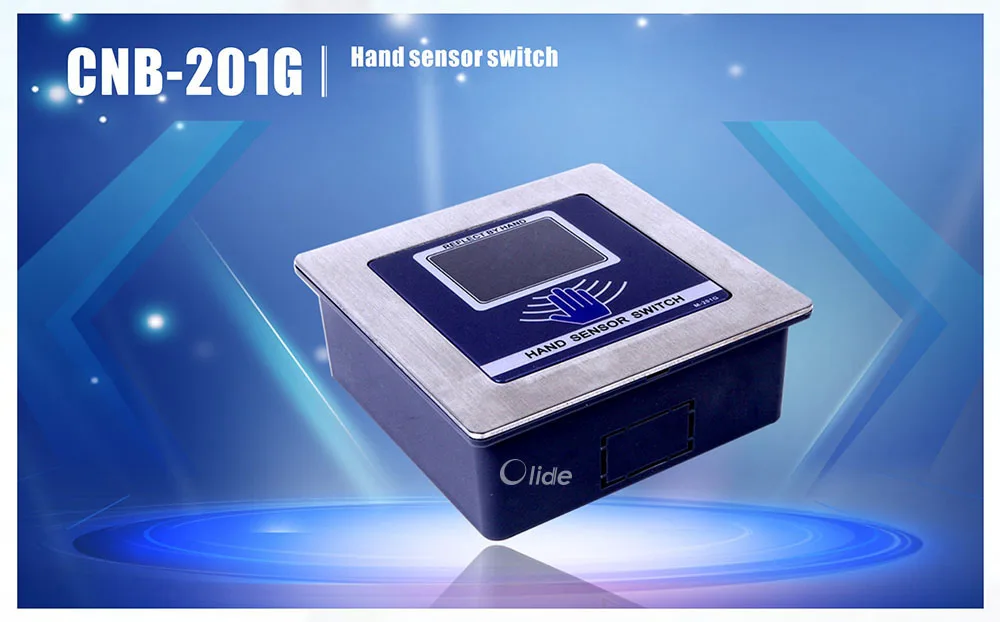

Hand sensor switch 01
Product application

The product can be used for the sensing control of non-contact access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.

General characteristics

►Imported high sensitivity infrared sensor has timely and convenient sensing ability.


►It adopts the design of 86-type switch panel, equipped with a special bottom box, convenient for installing in various occasions.


►The latest magnetic metal panel appearance design is more exquisite and fashionable.


►It has dry relay contact outputs, convenient for connection with various access controllers.

Technical parameters

Sensing distance:

1-20cm(adjustable)

Power supply:

AC/DC 12-36V

Action current(when under DC12V):

55mA

Outline size:

92(L)X92(W)X33(H)mm

Modulation demodulation frequency:

38KHZ

Opening size:

85(L)X85(W)X30(H)mm



Size


Hand sensor switch 02
