Functions key switch

The product is designed for meeting the control requirements of customer for the automatic door in different time section. It is in small volume and easily fastened. The product can able to realize the switch of five working states of fully locking, fully opening, semi opening, induction, and one way of automatic door by means of password to satisfy the demand of customer for the intelligent diversification of automatic door and improve the integral function of automatic door.

Technical data
Supply power  AC/DC 12V-36V
Dimension  92× 2×24mm(Panel)
   86×86×41mm(Bottom)
Details for the five function

Fully locking: internal and external probe induction are invalid and the access panel of external door is also invalid; the electric lock will be automatically closed; the staff inside and outside are totally unable to enter. Use during the night or festival for theft proof locking.
Fully opening: the internal and external probes and the access operator are invalid. The automatic swing door is kept in fully opened without being closed. Use during transportation, temporary ventilation and emergency case.
Semi opening: the internal and external probe inductions are valid but the inductive door is only to be opened to one half of the stated position and closed consequentially. Use during the normal business working period (energy conservation) (Note: the automatic door is of the semi opening function).
One way: the external probe induction is invalid and the electric lock is automatically on; the internal probe is valid but the staff outside can able to exit but no entrance. One way for exit or entrance (the external access panel is valid and the staffs inside can enter by card). Use for clearing before coming off duty.
Automation: the internal and external probe induction are valid; use during the normal business working period.

Five function key selector without LED show:                                          Five functions key selector with LED Show:

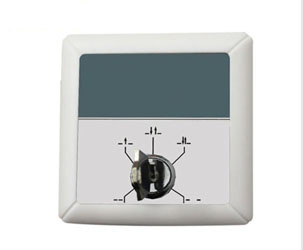

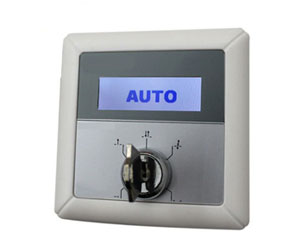

functions key switch without LED five functions key switch with LED

Packaging

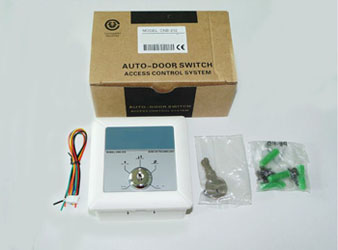

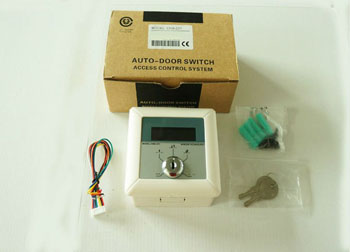

function selector without LED PackagingKey switch with LED packaing
