Friday, 14 December 2018 03:48

Olide Floor Guider ( A Pack of Ten )

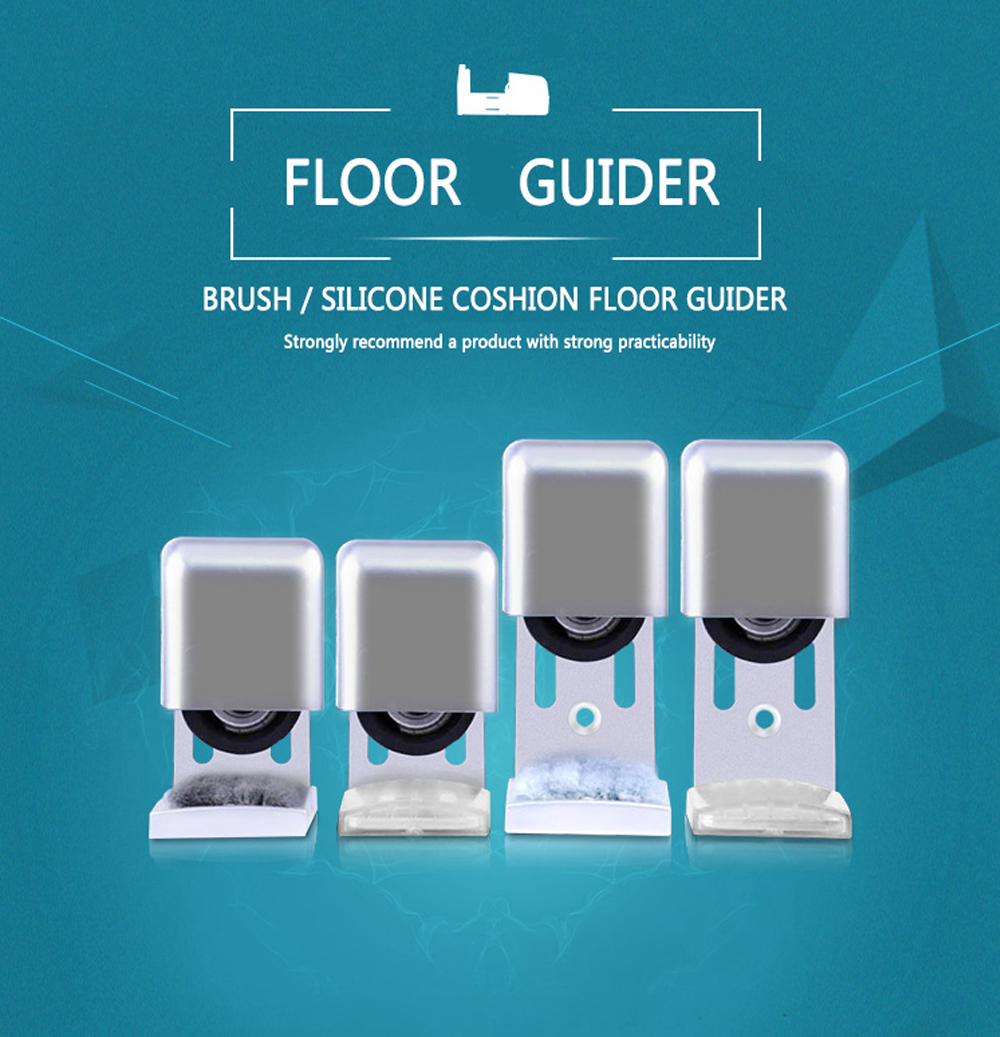

Olide Floor Guider (A Pack of Ten)

The floor guider is specially designed for framed automatic doors. The ground wheel is exposed and fastened to the overlap between the moving door and the fixed door. This ground wheel can hold the 4-6cm door plate.

It is made of galvanized cast iron, and the wheel uses a bearing nylon wheel. Good quality, stable use, strong applicability.

olide floor guider for automatic door system

-5

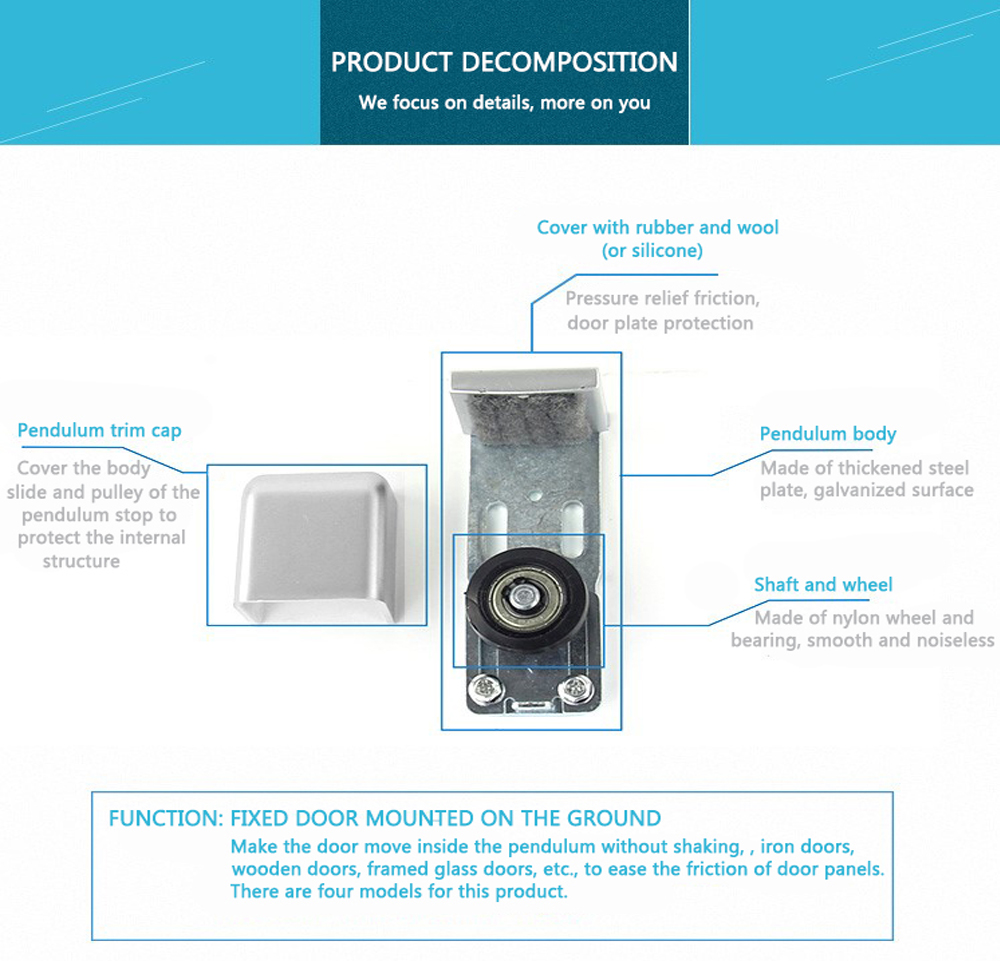

  • Pendulum trim cap

Cover the body slide and pulley of the pendulum stop to protect the internal structure;

  • Cover with rubber and wool

Pressure relief friction, door plate protection;

  • Pendulum body

Made of thickened steel plate, galvanized surface;

  • Shaft and wheel

Made of nylon wheel and bearing, smooth and noiseless;

Function: Fixed door mounted on the ground.

Make the door move inside the pendulum without shaking, iron doors, wooden doors, framed glass doors, etc., to ease the friction of door panels.

Olide floor guider for automatic door system

Floor Guider Parameters

Name: floor guider with silica gel cover

Size: 94*40*31mm

Applicable door frame: >=57mm, <=32mm

Shell material: galvanized cast iron

Internal material: nylon wheel alloy shaft

Rubber cover reduce the friction of the door plate, is more stable and has a long life

2

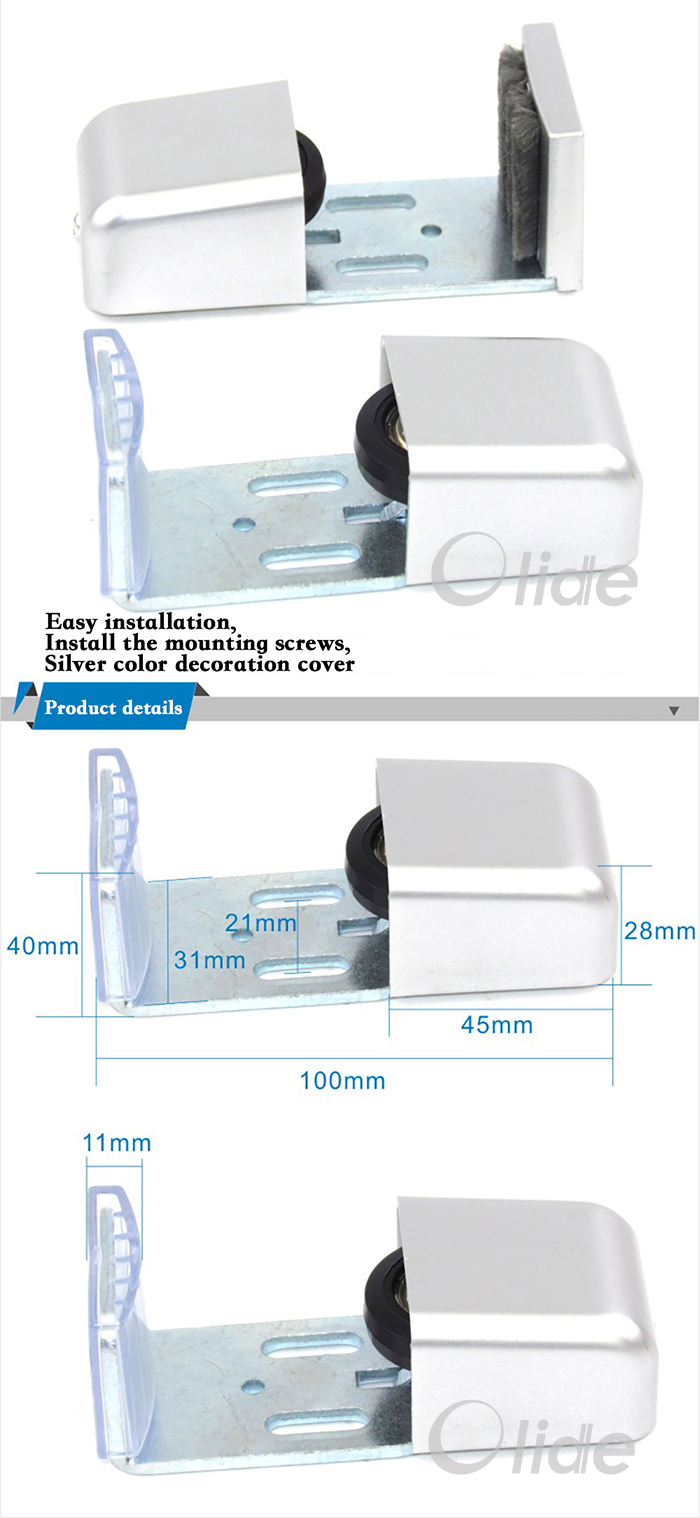

Product Size and Installation

Installation instructions:

Easy to adjust, only need to unscrew the cover screw, unscrew the wheel on the two screw pull out the wheel, tighten the screws. Tighten the cover screw when the cover plate is changed, that is, the installation is successful.

Olide floor guider for automatic door system size

Olide floor guider for automatic door system size 1

Friday, 21 September 2018 06:54

Automatic Door Floor Guider Aluminum Alloy

Are you looking for the best floor guider for your door? The automatic floor guide is perfect for floored and wooden doors. It’s fixed on the overlap of the framed and wooden door. It has an excellent wheel that has the capacity to hold 4-6 cm door panels. The floor guider has nylon wheels that have bearings and rubber sleeve. These are essential in slowing the down the friction of both doors.

You can be sure to gain safety as you use the frame and wooden door. The guide lets you feel comfortable while you’re opening and closing the doors. Hence, there’s a guarantee that you have successful door use.

What makes it Unique?

Excellent Protective Cover

The rubber material has an as durable feature that makes the floor guider effective. You can expect to use it for a longer time. The additional protection assures you to use it successfully. It prevents excess friction for the door.

Decorative Cop

The main body of the guide has a trim cop that makes it stylish but durable. Users would be happy to use it due to the decorative design it offers. But, you have to take note: it’s not only for decoration. The trim cop supports the main body of the guider. Thus, it can perform an accurate function at all times.

Nylon and Bearing

The nylon material is smooth that provides soft and easy use of the guider. You would love to use the stopper with the quality nylon and bearing. The floor guide doesn’t disappoint by having nylon and bearing material that offers comfort to the user. You can feel the satisfaction of using it for a long time.

Easy to Adjust Feature

Not all doors have the same width and length. So, it’s better to have a floor guider that has an adjustable option. Don’t worry! You can have that with the adjustable feature of the floor guider. It meets the standard size of the door due to its adjustable feature. Hence, it’s perfect to install in a door despite the size it has.

Protective Silicon Cover

The protective cover not only adds support to the guider. It also slows down the friction of the door. You would have the advantage of preventing yourself to get hurt as you close the door. The cover also makes sure that the floor guide is in good condition. So, you have a guarantee of installing it in your door.

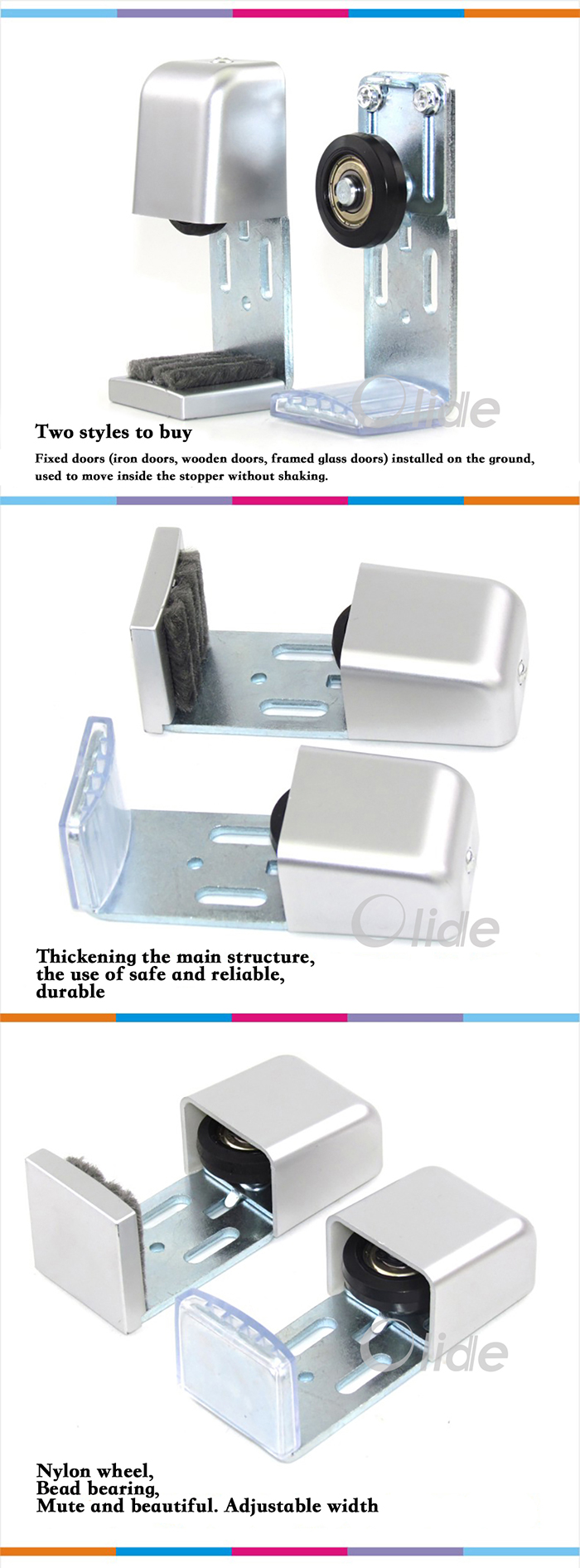

Two Style Option

You would be glad to choose from the two styles of the floor guider. You can maximize your usage of doors from these styles. There’s a sure way for you to achieve excellence as you have it at home or even in a store.

Also, the styles can match the look of your doors. You can have comfort and satisfaction at the same time.   So, it would be excellent to have at your home or office.

Automatic Door Floor Guider Usefulness

The floor guide provides you an easy and effective way to slow down the friction of a door. You can be sure to gain safety as you open or close the door. The door would be in good condition at all times.  You don’t have to worry about the high friction that the door would produce.

The Automatic Door Floor Guider is perfect for any framed and wooden door. Hence, it suits the standards of clients in using the doors with excellence. The automatic door floor guide assures you of good results in using the door.  Therefore, it’s good to have an automatic floor guide at home.

Published in News & Events



Aluminium Alloy Door floor guider For Wooden Door/Framed Glass Door

2

Notice: please notice pictures above are two different type door end stopper, we will send you the kind with gray brush if you do not specify .

Aluminium Alloy Door End Stopper For Wooden Door/Framed Glass Door Features
