Electric Sliding Door Operator

PRODUCT DETAILS

  • Fob Price: US $ 318 - 940 / Set
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 24 Months

There are several electric sliding door operators in the market today. This will allow you to choose the one that will perfectly fit your needs and preferences. It is also highly significant that you take time to do a little research to find the best electric sliding door operator. Some of these operators and manufacturers may mislead you with the quality of the product that they offer. That is why it seriously valuable that you look for a manufacturer that has a good reputation in providing the product.

Video on youtube
FEATURES AND ADVANTAGES OF Electric Sliding Door Operator SD150B

Panasonic motor copy,same quality with low price.

The motor copy the panasonic motor,full enclosed structure ensure long service life.Advanced PWM pulse width control mode providing reliable strong driving force and protect the stable operation of the product.

      Electric Sliding Door Operator sd150b

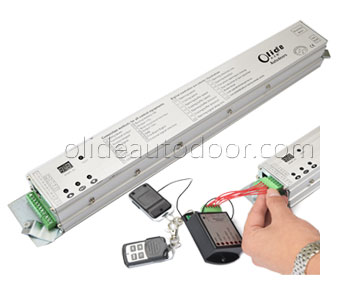

Electric Sliding Door Operator sd150b microprocessor

Built-in transformer,no need extral decoder

32 bit microprocessor in electric board make the door sliding reversely when touch obstacles;

Opening&closing parameters can be intelligently ajusted by control panel without extra programmer;

Various connectors can connect with different optional access control accessory.

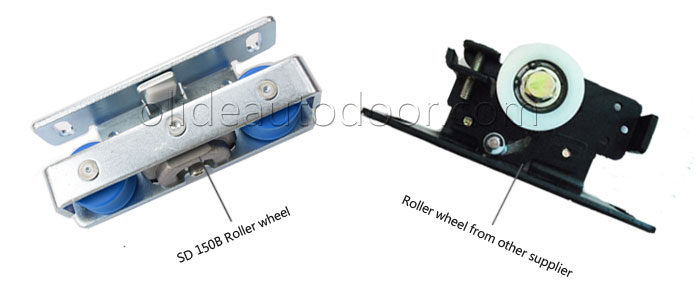

Two rolling wheels,teeth belt operate more stable

Our rolling wheels have two wheels while products from other suppliers have only one. Two rolling wheels can balance the weight of the teeth belts. finally make the teeth belt operate more stable and low operation noise, Ther roller is made of polyurethane,it is durable and light.

Electric Sliding Door Operator sd150b roller wheel



Electric Sliding Door Operator sd280 access control switch



Complete perfect access control system

Only entering the passcode or swiping card on the optional access keypad,people can be entered.

Autodoor can reach the functions of automatic/exit only/partial open/locked and open by the optional five key selector.

Various optional accessories such as foot sensor,touch sensor,push button etc.can be equipped.





Functions of Safty beam and microwave sensor
are perfectly combined.

The optional active rader&infrared safety sensor is combined the function of safety beam and microwave sensor If install it, no need safety beam and microwave sensor.More intelligent and convenient ,only need one wire connection, no need more for safety beam and microwave sensor.

 Electric Sliding Door Operator safety beammicrowave sensor

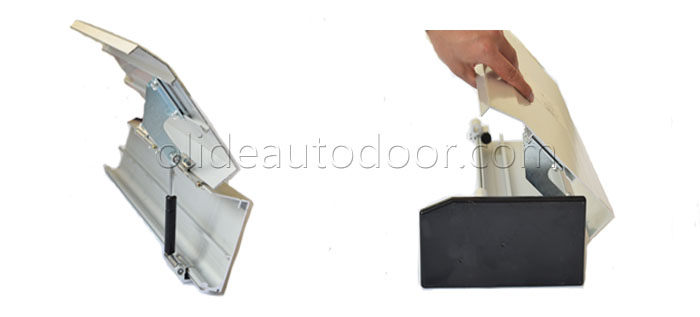

The hydraulic rod between cover and rail make

maintainance&installation easier

The hydraulic rod connect cover and rail make the opener maintenance&installation easier. Made of thermal-break aluminium alloy, it possess better thermal insluation performance and leakproofness than normal aluminium alloy.
The black oblong plastic end panel make the openers look more beautiful, it well match up with the wood, glass door, framed or frameless door.

Electric Sliding Door Operator sd150b cover

                                       The hydraulic rod                                     The beautiful oblong plastic end panel



 TECHNICAL SPECIFICATION of Electric Sliding Door Operator
 Model  SD150b
 Door range  Single leaf Double leaf
 Door leaf weight  Max 160kg*1 Max 120kg*2
 Door width  600~3000mm 600~1500mm
 Opening speed  100~550mm/s(Adjustable)
 Closing speed  100~550mm/s(Adjustable)
 Opening time  0~9 seconds
 Motor  DC 24V Brushless DC Servo Motor
 Supply voltage  Input AC 110V/220V;50-60Hz
 Working temperature  -20~50°C
 Working noise  Less than 50 db

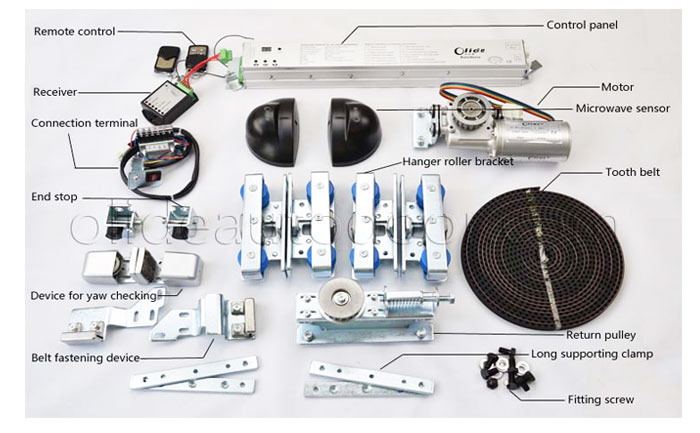

 Electric Sliding Door Operator SD150 COMPONENTS INCLUDING

 Electric Sliding Door Operator sd150b whole set

Components Quantity Componets Quantity
Control panel 1 Reveiver 1
Motor gear box assembly 1 Return pulley 1
Microwave sensor 2 Terminal input assembly 1
Tooth belt 1*7m Power switch 1
End stop 3 Hanger roller bracket 2
Remote control 2 Belt bracket link assembly 2
Device for yaw checking 1 Microwave sensor 2
Transmission rail and cover 2*2.1m



 OPTIONAL ACCESSORIES

Electric Sliding Door Operator accessories

HOW TO CHOOSE THE CORRECT SIZE FOR YOUR DOOR?

Our standard size for the cover and transmission rail is 2*210cm,it is just like the picture one double leaf door shows.If door size is beyond it ,Or if it is single leaf door,please contact us to choose the correct size for you.

           Electric Sliding Door Operator style

                                      Double leaf door                                                                                 Single leaf

PROFILE DRAWING

 sliding door opener profile

You can also find good operators through word of mouth, you can ask for suggestions and recommendations from your friends or colleagues. Another important thing is that you first identify the parts of your house that you want to install with an electric sliding door. It is highly recommended measuring that specific part where the door will be placed to identify the type and size of door needed.

Your house is one of your most valuable assets. Your home serves as your place of safety and comfort that is why it is necessary that you always keep it in a good condition. There are several ways that you can do to improve your home, and one of these is through installing electric sliding doors.

PROJECT FROM CUSTOMER

project from customer

Electric Sliding Door Operator features:

  1. Opening and closing speed can be continuously adjusted.
  2. The residence time of door opening can be adjusted.
  3. The opening width can be adjusted at will when local switch is on.
  4. Automatic doors can maintain working for 2 hours during power failure.
  5. Automatic doors will bounce at once when touching an obstacle, without any clipping (They have the lightest touch force ever, and it is safe for one to have a try with fingers).
  6. Automatic doors can be set in sleep state if unused for a long time, waken up for occasional use and then recover to sleep state.
  7. All states and parameter adjustment can be done on the control panel near the door, with no need to open the case or use other tools.
PACKAGING&SHIPPING

           automatic door orders from customers


Compared to traditional swing doors, the use of electric sliding doors operator has given more advantages to homeowners. These automatic sliding doors are not only convenient but most importantly, they can provide the feeling of security to you. You will be able to avoid undesirable circumstances like robbery and other related crimes. Another advantage of using this kind of door is that you will be able to free up some space in your house. You will no longer exert much effort in opening and closing the doors which makes it easy to use.

Commercial automatic sliding doors can provide you with a huge amount of convenience, privacy and security. They also provide lesser chances of accidents due to sudden opening or closing. They are ideal for studio type condo or apartments for they do not take much space. They can also serve as room dividers in properties with limited space to provide privacy. There are really countless benefits that automatic sliding doors can provide you. You should take advantage of them for your home improvement. Rest assured, your home will be the best place in this world to live in.

Safety precautions:

Automatic doors function through driving systems. The following are safety precautions of using automatic doors.
1. Please walk though the automatic door in order, and do not pass the door by force when it is to close. Walk through the door when there is space for one person.
2. Do not jam and bump against the automatic door, or damage the devices and framework by external force.
3. Children under 1.2m in height, the elderly and the disabled are only allowed to go through the automatic door with the assistance of a guardian. Or face the consequences.
4. Please do not stay in the automatic door for extended period or put any articles in the automatic door.

Chinentech, the automatic entrance expert, Off you with effective and high quality Electric Sliding Door Operator.  Cheap electric sliding door operator for sales.
