Electric Casement Window Opener is a good cost effective solution to windows in a very hard to reach place. This is necessarily useful to less able or even elderly people. It can function perfectly either with the use of remote control and panel switch. This is operated up to 5 windows simultaneously or even individually.
The usual applications of this electric opener are on windows over the kitchen surfaces or above the desks. Also, it can be used in lofty conversions of skylights, windows obscured by blinds, window over staircases and high up on landings.
One complete set Electric Casement Window Opener include the accessory:window opener housing, chain, motor, bracket, screws, the details included in the following picture.
How to choose the most suitable electric window opening mechanisms?
1. Our electric window opening mechanisms is suitable for the below window types.
2. Please refer to the following technical specification to choose the suitable electric window opening mechanisms.
| Model | CSD300 | CSD500 | CSD600 |
| The push and pull force | 400N | 600N | 800N |
| Max load bearing | 40kg | 60kg | 80kg |
| Travel distance | 300mm | 500mm | 300/500mm |
| Speed | 8mm/s | 7mm/s | 7mm/s |

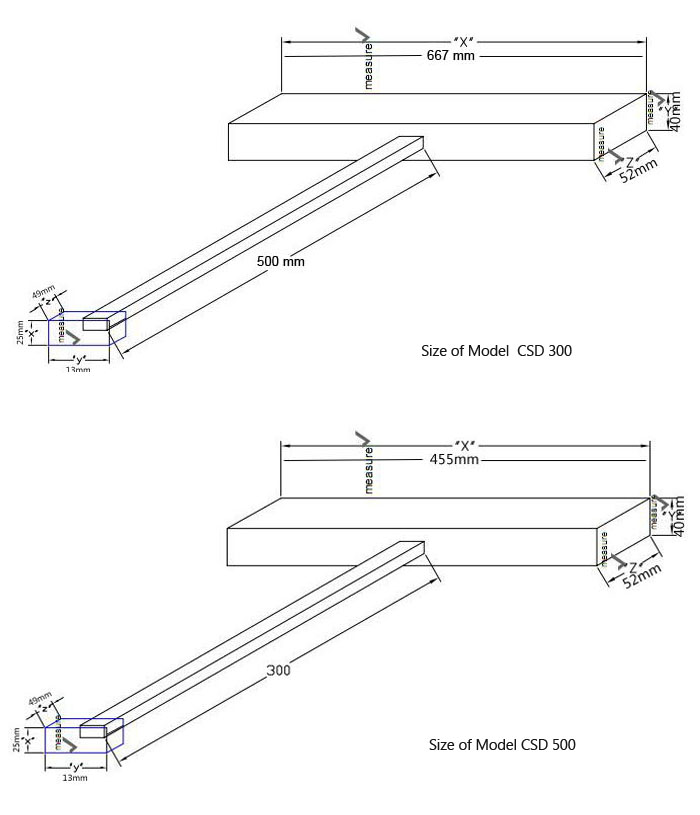

| Size | 455(L)X52(W)X40(H)mm | 667(L)X52(W)X40(H)mm | 574(L)X35(W)X20(H)mm |
| Operating power | 24V DC | ||
| Degree of protection | 42 IP | ||
| Operating ambient Temp. | -10° - +70° | ||
| Material |
Housing is made of aluminum alloy, also stainless steel can be customized, |
||
a.High qualit two-layer stainless steel chain,which make the chain stronger anti-oxidate.
b.The short pitch chain 08B-2 can ensure the low noise and stable operation of the window opener
c.The motor built-in the overload protection system,when the electric current is beyond the scope of rated voltage,the motor will trip itself.It can avoid the motor burning out as the high electric current.
d. The surface of the opener housing has electrophoretic precossed,it is the best way to acid-resistant,akali-resistant,magma-resistant of buildings.Even the window opener in the harshest environment,it can keep 50 years no fading,no aging.
e. Centralized controller for fire,Vent centralized controller,Central controller for wind&rain.Remote centralized controller for window open&close in the whole building can all be customized.Just oen press,the whole building windows can be controlled.
 |
|||
| Receiver | Remote Control | Smoke Detector | Rain&Wind Detector |
A. Receiver
1. The window opener can be closed or open by the receiver.
2. It can convert the 24 V DC to the output voltage 110V or 220V, otherwise the window opener will be burnt.As usual, one window opener need one receiver. 3. It can receive the signal sent from the remote control.
B. Remote control
1.The remote control is wireless, one remote control can control hundreds of windows at the same time if you want them open and close at the same time.
2. Just one press, the window will open or close automatically,it make the house samrter.
C. The smoke, wind and rain detecting system.
The window opener can be equipped with the optional accessory smoke, wind and rain detecting system. When detect the smoke, wind or rain, the window would closed by itself.
1. The products must not be installed outside where would get wet in the rain
2. There are two versions for choice, 24V DC and 110V/220V AC, But as usual, the 24V DC is safer than AC version as the large voltage would harm people. The receiver can convert the 24 V DC convert to the output voltage 110V/220V.
Key Features of Electric Casement Window Opener:
• Openers are very easy to fit within 30 mins. There is no need for wiring. All you need to do is to plug the main sockets.
• It is suitable for opening windows. That includes skylight windows like Fakro and Velux.
• It also suits for top hung windows fanlight within 400 mm high.
• Compact and attractive designs that give stylish upgrade in traditional manual window openers that are very easy to install.
• This kind of window opener has the capacity to operate up to 160 cm wide.
• All the window openers come in 2 years of electrical warranty. This is also CE marked. It also offers 5 years of finish warranty.
• Its remote control panel has key fob. This allows you to operate the window opener from different areas. It can also make the 5 windows move all together and even separately.
• The face fix bracket is available for windows in the small frame depth that ranges from 0-49 mm.
With the use of Electric Casement Window Opener, people are provided with a solution for superior ventilation. It is easy to use for all people whether young or adult. The solution it gives will meet all your specific requirements. This is helpful in all homes, offices, schools, orangeries, care homes, conservatories and other leisure centres. If you are working in a public area or simply a place where a lot of people is expected and appropriate ventilation is necessary, this is a way of accommodating each individual's needs. Due to these importance of the Electric Casement Window Opener, it is a must that it is always maintained at its best working condition. To do that, make sure that the necessary regular maintenance on it is applied. And in case it needs repair or replacement, immediately do this for the total functionality of your electric casement window.
