DSW3/3A Two-ways Open Underground Type Automatic Swing Door Opener

PRODUCT DETAILS

  • Fob Price: From US $ 485 / Set
  • Model: DSW3/3A
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 5 Years

Two-ways Open Underground Type Automatic Swing Door Opener

The unit is a underground type two-ways opening automatic swing door opener.Its working principle is that the output shaft of the unit drives the rotating arm to realize the automatic operation of the door body. It can single open 90° or two-ways open 90° for each way, which is characterized by small size, good waterproof, heavy load,simple construction, etc., and can be applied to both indoor and outdoor.

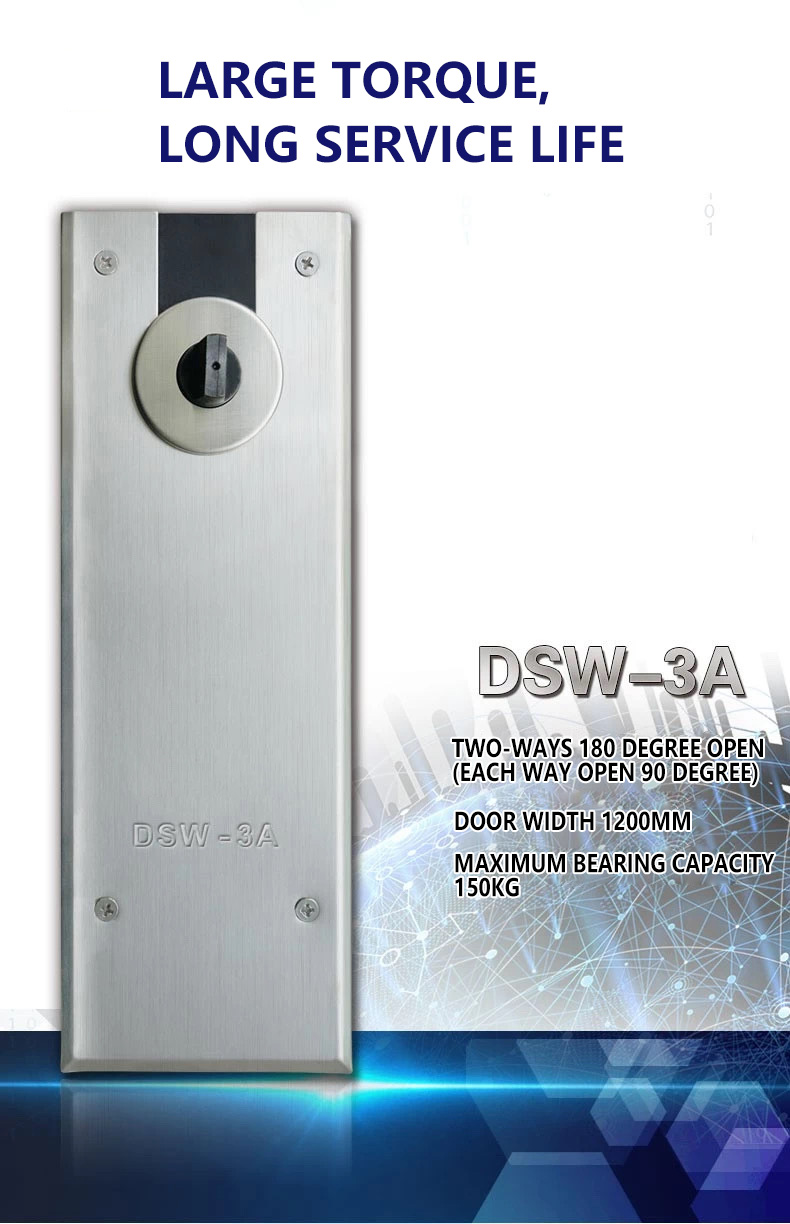

underground type automatic swing door opener

WHY YOU CHOOSE?

  • Maximum bearing capacity 150kg;
  • 90 degree or 180 degree door opening options, easy to install;
  • Motor insulation, waterproof, strong corrosion resistance;
  • English debugging interface of the controller, easy to operate;
  • Super strong signal remote control, 150m remote control distance;
  • Cold and high temperature resistance.

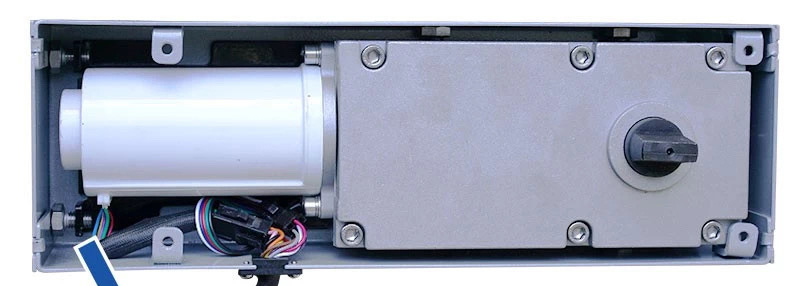

1. DC WATERPROOF MOTOR+GEARBOX

The motor shell is made of BMC injection molding: all DC motors are sealed and super waterproof, insulated and fireproof, with strong corrosion resistance.Our design of every detail makes you impeccable.

two way underground automatic swing door opener motor 790

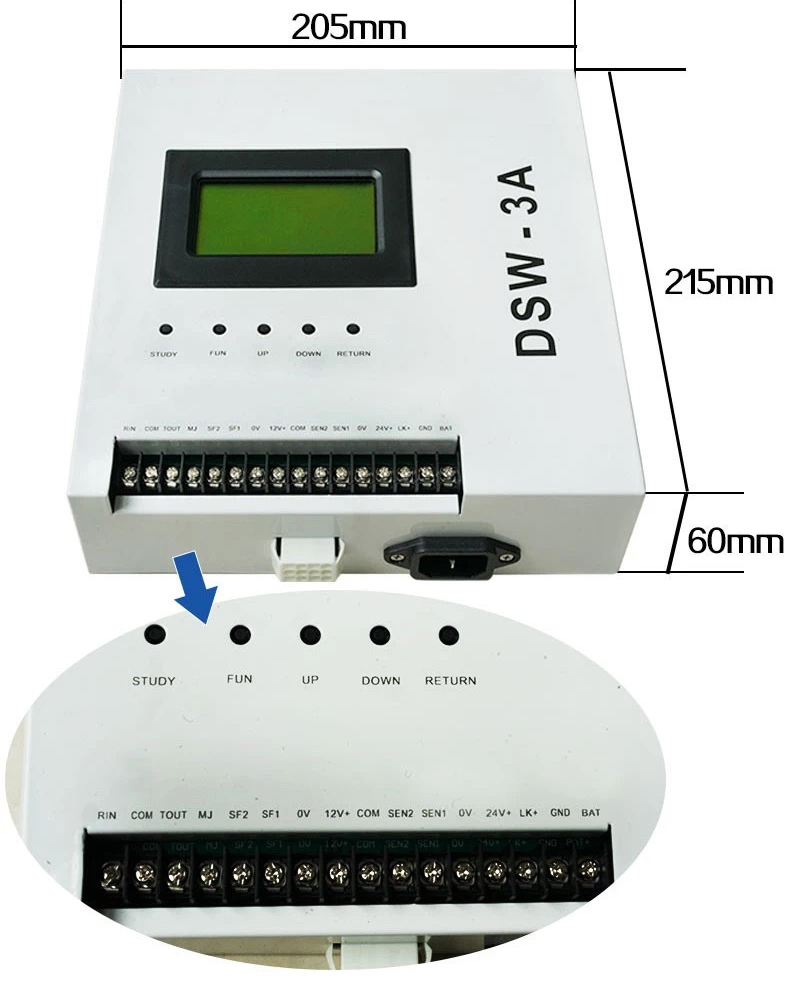

2. CONTROLLER

The controller has an English debugging interface, which is easy to operate and equipped with various functional ports such as electric lock, backup battery,etc

two way underground automatic swing door opener 790 2

3. REMOTE CONTROL

Super strong signal remote control, beautiful shape, working area up to 150 meters, especially suitable for conference center, high-end hotel.

two way underground automatic swing door opener remote 790

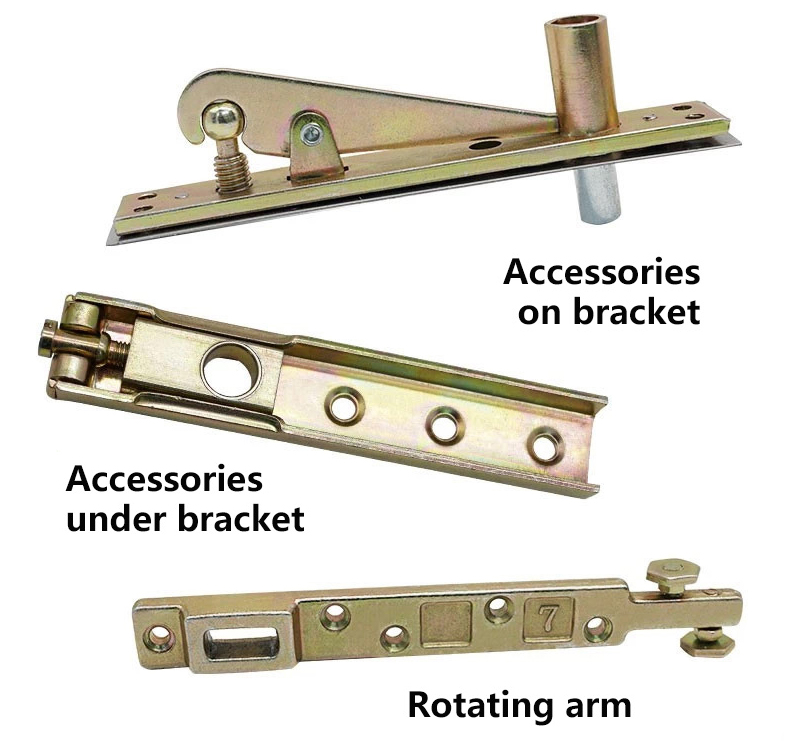

4. MATCHING HARDWARE

Floor spring supporting hardware, meticulously manufactured, fashionable and simple, committed to give you a better experience.

two way underground automatic swing door opener bracket 790

Technical Specifications:

Model Number: DSW-3A Maximum gate weight:   150kg
Maximum gate width:
1200mm Maximum torque: 165Nm
Installation mode: underground embedded    Noise: <60dB
Electric lock output:

DC12V Normally open/

normally closed contact

Opening and closing time:
6-12S
Opening range: 86°-95° Power: AC220V+-10% 50/60Hz
Rated power: 55W Standby power: <2W
Working temerature: -20°C~55°C Protection level: Ip68

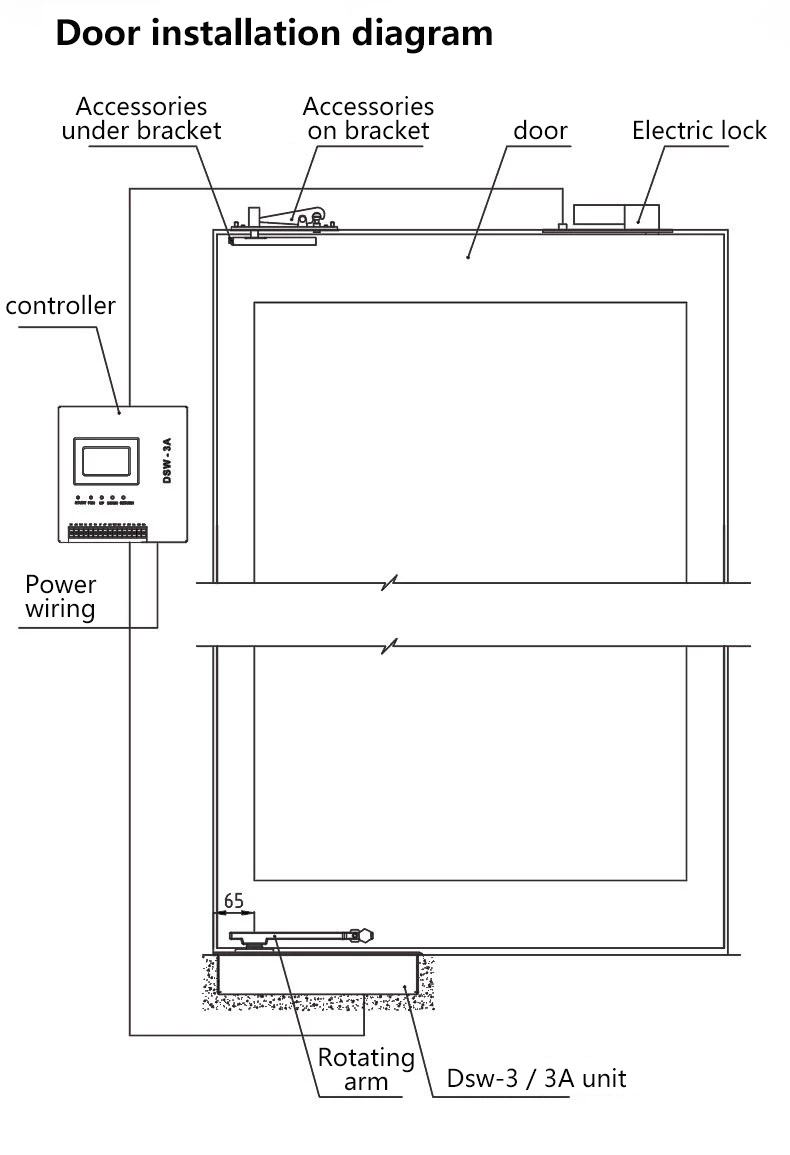

 two way underground automatic swing door opener

two way underground automatic swing door opener 1
