Man's pursuit to continually sustain the fast pace changes of the world has led to very many innovations. These things have made everyone's life more and more convenient. And these revolutionary developments are not only to normal people but also to those who are differently abled. One of these is the accessible door operator that is now no longer limited to doorways but also windows. More importantly, this breakthrough can be used with different designs of windows like the most prevalent single and double hung windows.

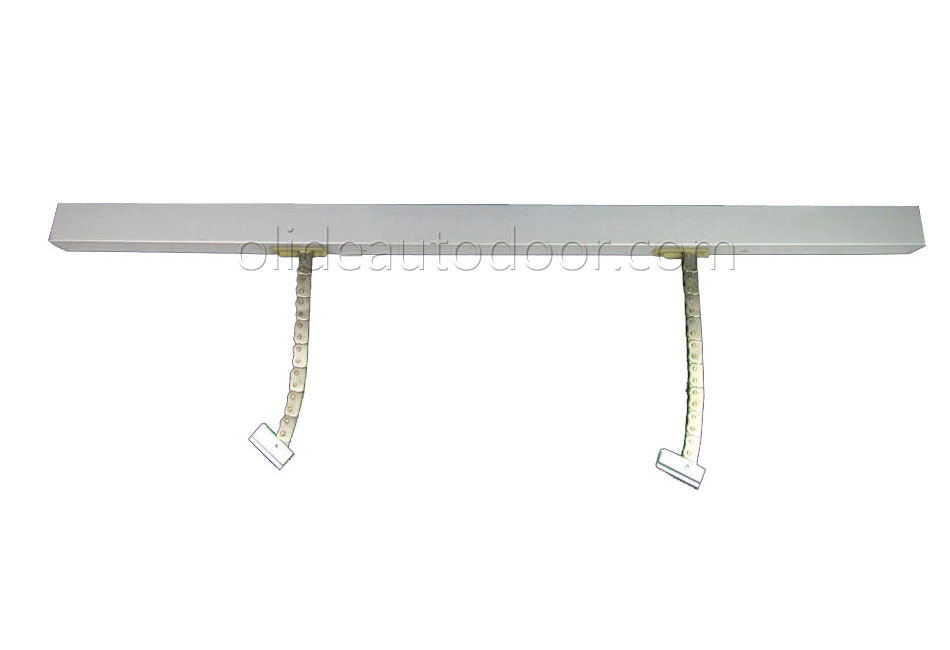

One complete set window opener include the accessory:window opener housing, chain, motor, bracket, screws, the details included in the following picture.
How to choose the most suitable electric window opening mechanisms?
1. Our electric window opening mechanisms is suitable for the below window types.
2. Please refer to the following technical specification to choose the suitable electric window opening mechanisms.
a.High qualit two-layer stainless steel chain,which make the chain stronger anti-oxidate.
b.The short pitch chain 08B-2 can ensure the low noise and stable operation of the window opener
c.The motor built-in the overload protection system,when the electric current is beyond the scope of rated voltage,the motor will trip itself.It can avoid the motor burning out as the high electric current.
d. The surface of the opener housing has electrophoretic precossed,it is the best way to acid-resistant,akali-resistant,magma-resistant of buildings.Even the window opener in the harshest environment,it can keep 50 years no fading,no aging.
e. Centralized controller for fire,Vent centralized controller,Central controller for wind&rain.Remote centralized controller for window open&close in the whole building can all be customized.Just oen press,the whole building windows can be controlled.
 |
|||
| Receiver | Remote Control | Smoke Detector | Rain&Wind Detector |
A. Receiver
1. The window opener can be closed or open by the receiver.
2. It can convert the 24 V DC to the output voltage 110V or 220V, otherwise the window opener will be burnt.As usual, one window opener need one receiver. 3. It can receive the signal sent from the remote control.
B. Remote control
1.The remote control is wireless, one remote control can control hundreds of windows at the same time if you want them open and close at the same time.
2. Just one press, the window will open or close automatically,it make the house samrter.
C. The smoke, wind and rain detecting system.
The window opener can be equipped with the optional accessory smoke, wind and rain detecting system. When detect the smoke, wind or rain, the window would closed by itself.
1. The products must not be installed outside where would get wet in the rain
2. There are two versions for choice, 24V DC and 110V/220V AC, But as usual, the 24V DC is safer than AC version as the large voltage would harm people. The receiver can convert the 24 V DC convert to the output voltage 110V/220V.
As everyone knows, windows—specifically double hung designs—can be difficult to open for those who have minimal arm strengths. Thus, this is not only useful to those who have physical disabilities but also to children and elderlies. At the same time, opting for double hung window opener is a lot safer for these people than the regular means of rolling up or down windows. Accidental opening or closing can definitely hurt someone, not only kids, elders and those with physical disabilities but also normal people. Having operators, mechanical or remotely triggered, can definitely save time, effort and of course, is a lot safer.
There are basically two types of double hung window opener, the mechanical and the automatic. Both are the same in general features and configuration although there are manufacturers that are continuously improving the designs and styles. Aside from the brands' alterations, the mechanically operated openers employ levers or hand cranks. Like the use on mechanical automobile doors, these parts serve as the handle where users can trigger the gears that slide the window up and down. The automatic double hung window opener, on the other hand, has a switch or sensor where the actuator can be triggered.
The application of the double hung window opener is not only applicable to homes but also commercial properties like restaurants, shops, and all other commercial buildings. Its integration with the building designs can definitely provide convenience and comfort not only to normal people but also to those who have physical abilities. With operators on the windows of every building in town, everyone can enjoy the smell of fresh air and rays of the sun without asking for help from the nearest physically abled person or the building administrator. Thus, everyone can feel and enjoy the normal life even those with physical disabilities and minimal arm strengths, including kids and elderlies.
