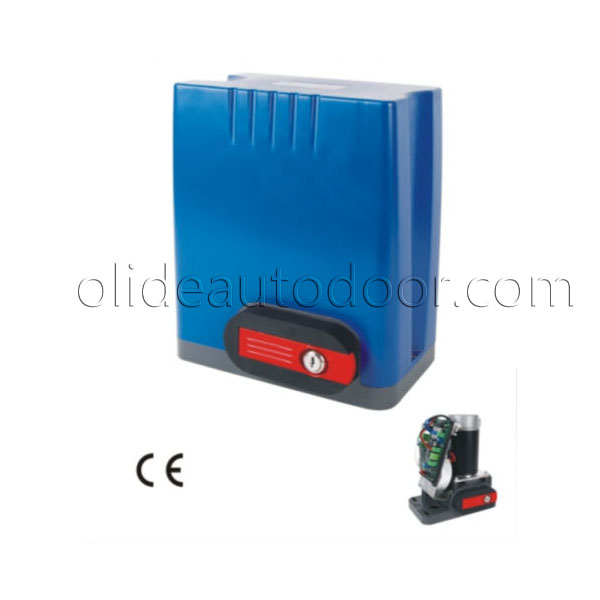

SLIDING GATE OPENER DKC500DC
FEATURE AND ADVENTAGE
1. This gate opener contains transformer, control board and radio control,can connect extra battery.
2. In case of power of failure, the operator is powered by extra battery.
3. Intelligent charging system supplied.
4. MCU is supplied to control the gate operator
5. Keypad / single button interface.
6. Photo beam safety beam interface.
7. Electronic Soft Start & Stop
8. Manual key release design for emergency purposes.
9. Gate operator has auto-reverse function, and the reverse power can change by user.
TECHNICAL SPECIFICATION
Model | DKC500DC | ||||
Power supply | 110V AC/220V AC | ||||
Max. gate weight | 500kg | ||||
Output Torque | 14N.M | ||||
Gate move speed | 11m/min /13m/min | ||||
remote control range |
>= 30 meters | ||||
extra remote control |
25 | ||||
Frequency | 433.92 MHZ | ||||
Noise | <= | ||||
Working temperature | -20°C-+70°C | ||||
Weight | 11kg |
ACCESSORIEs

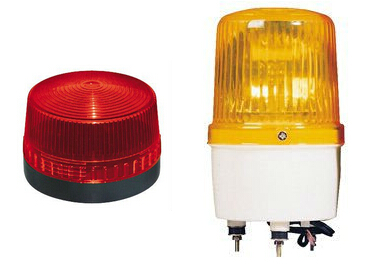

Flashing Light |

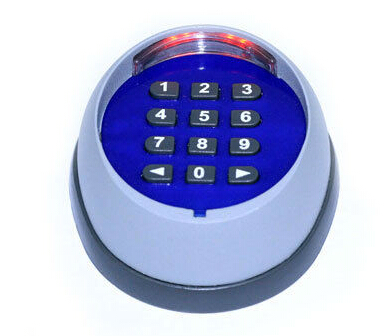

Wireless keypad |
