Automatic Telescopic Door

PRODUCT DETAILS

  • Fob Price: From US $ 850 / Set
  • Port: Shanghai or Ningbo
  • Model: Telescopic Sliding Door
  • Lead Time: 3~15 Days
  • Warranty: 5 Years

Automatic Telescopic Door

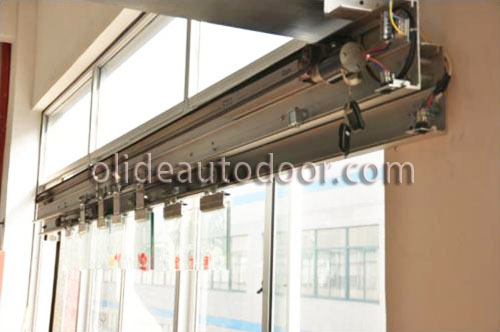

 telescopic door opener

Automatic Telescopic Door  FEATURES and advantages

 1. Intelligence

The Microcomputer Controller and Power Control integrated to one module. It is easy to install and use. The operator can automatically adapt itself to different door weight.

 2. Strong

 With Cover and Base, The whole system be more stronger and steady.

 3. Safety

The sliding operator have the alarm system which can prevent people from nipping, so it is safe for users. With motor self lock function, the operator can lock the door without mechanical locks.

 4.Reliability

Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work very well with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit , the door moves very stably.

 5. Energy Saving

With the help of semi-open function, so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well.

TECHNICAL SPECIFICAITON of Automatic Telescopic Door
    Door configuration  two leaves, four leaves
 Door leaf weight 2*150kgs~4*100kgs
 Clean open width   1200-2700mm, 2200-3900mm
 Power voltage  AC220V±10%, 50-60Hz
Power consumption 100W
 Opening speed 300-500mm/s(adjustable)
Closing speed  200-500mm/s(adjustable)
 Hold-open time 1-10s(adjustable)
Closed force F >100N
Manual push <100N
Working environment temperature -20~50°C


Video on youtube:

Automatic Telescopic Door  COMPONENTS INCLUDING
Components Quantity Componets Quantity
Beam 1 Belt 1
Motor device 1 Track stopper 1
Control device 1 Connection terminal 1
Tension wheel device 1 Device for yaw checking 1
Hanger device 1 Remote control receiver 1
Remote control 1 Remote controls 2
Microwave sensors 2 Belt fastening device 1

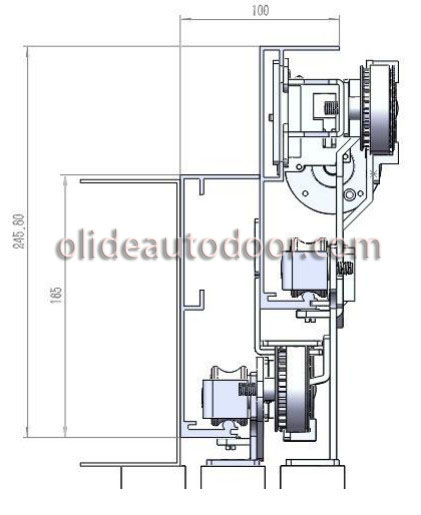

 PROFILE DRAWING

 telescopic door profile
