Nowadays, the world faces issues regarding security. This is the reason why your premise must be safe and secured. An exterior automatic sliding gate is quite well-known and used in most offices and homes. Doors can be designed with varieties of colors, sizes and materials. The most traditional sliding door is made from glass, but those people who would like to have it in their garage or front door prefer the metal or wood exterior automatic sliding gates. If it's for office and hospital use, the basic purpose is to be in trend and incomparable with others and state of the art doors. It must be also rust free and durable so that no matter how much is the price, it will guarantee complete protection and longer lifespan.

.SLIDING GATE OPENER INSTALL
There are lots of considerations you need to consider in choosing an exterior automatic sliding gate. You can choose a remote controlled exterior automatic gate. An essential feature of this kind of automatic gate is that it only takes minimal space. So, if you have a small space in your office or home, this can be the most recommended type of automated gate. You can manually operate this remote controlled sliding gate. You can easily close an exterior automatic sliding gate using the remote programmed to control the gate itself. You can operate your exterior automatic sliding gate with the use of your programmable remote control, which opens and closes the gate. The price of this kind depends on the style, the materials used and the type of automated gates.

You can also have a sensor and motor based sliding doors and make it easier for you to open and close the gate for there is no effort needed. It opens and closes the gate automatically. The operation of an exterior automatic sliding gate is so simple and does not require so much effort on your part. You will just push the button on the remote control as you enter or leave your home. Persons with disability and those who are in wheels are benefited by this kind of sliding gate as they can comfortably enter and leave their home automatically without worrying too much. Using the remote, they can open and close the gate without even locking it using the traditional locks. An exterior automatic sliding gate is truly beneficial and essential for all people who are quite busy with their works and unable to check their homes and offices due to some circumstances.

With more and more application of automatic doors, many users offer new demand for electric lock. For the convevience of new automatic doors installing companies, the following are some suggestions for selecting and using electric lock.

The locking function of automatic doors is realized in several ways: electric lock, magnetic lock, self lock of eletric motor.

Electric lock

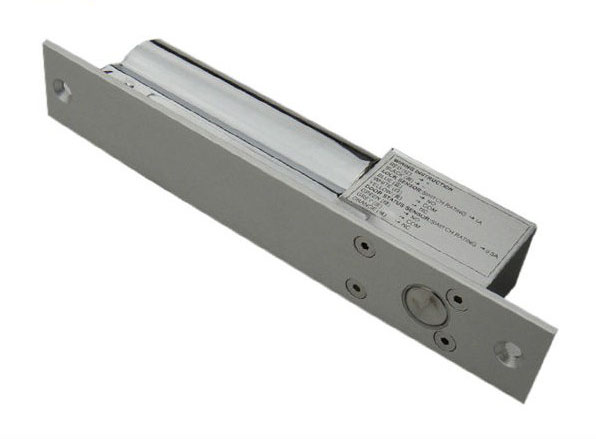

electric bolt

The earliest automatic doors apply the electric locks. There are two kinds of electic locks in the market: dedicated and nondedicated. Dedicated electric locks were first imported from Taiwan and is especially designed for all kinds of automatic door. The working principle is that after recieving the signal from an inductor or access controller, the electric lock opens the lock first and then open the door. Such working principle can avoid the case that the door is opened while the lock is not. And the control unit of lock can delay the trasmission of door-open signal, which is why it is called dedicated lock. Dedicated electric locks have the advantage of making it more difficult to open the door destructively or by force.

However, such locks have complex connection modes, are expensive and provided only by manufacturers specialized in automatic doors. Domestic manufacturers can try independent research and development, and the lock body can be equipped with general electric lock. Common electric lock can not delay the tramsmission of door-open signal, and lock-open signals are transmitted by at the same time. Thus the door might be opened faster than the lock, and the spreader bumps into the unopened lock that causes the malfunction of automatic doors. The news reports that people are locked in self-service bank are of the same situation.

Magnetic lock

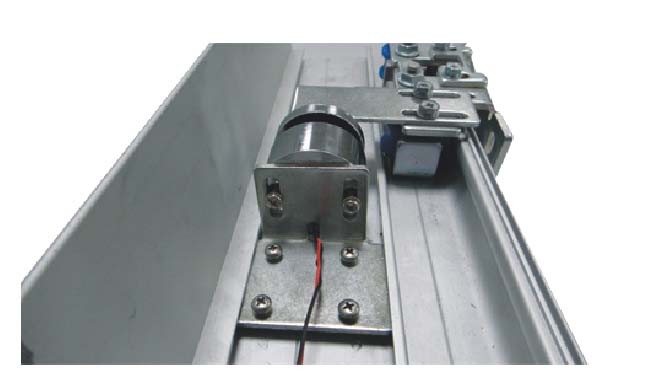

Magnetic lock for sliding door installationMagnetic lock installation

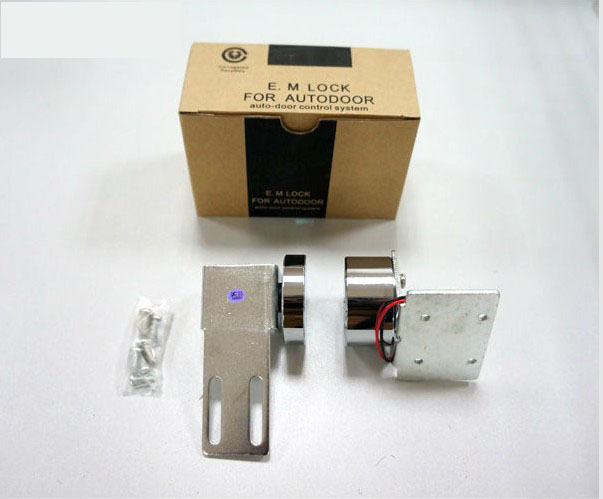

Magnetic locks for automatic sliding doors


Magnetic locks, like electric doors, are also designed for dedicated and nondedicated use. But the former works by sucking doors with magnetic force while the latter works by stucking doors with locks. Magnetic locks provide the advantage that the doors are clozed without any space, so that accidents made by children can be avoided. The shortcoming of magnetic locks is that the doors will be opened when the bearing capacity is surpassed.

Thursday, 04 July 2013 08:53

Heavy duty automatic sliding door system

Heavy duty automatic sliding door system kit STM20-200, The high-performance motor and gearbox free from maintenance ensure the safety of driven device and reliable operation. Theweights of two leaves of automatic sensing door are 2 x 200kg.

European design, with strong aluminum beam and cover. The system including the motor, control board, hangers, belt, rollers, stoppers, transmission rail and cover, microwave sensors,push button, safety beam, function selectors etc. It is completely kit. The price is about 900 usd.

Video on youtube
 FEATUREs AND ADVANTAGE OF Heavy duty automatic sliding door system STM20-200

DC 24V Brushless Motor

Worm gear reduce make it low noise;
Advanced PWM Pulse width control mode providing reliable
strong driving force and protect the stable operation of
the product;Full enclosed structure ensure long service life.

Heavy duty automatic sliding door system STM20 200 motor



Heavy duty automatic sliding door system microprocessor STM20 200

Intelligent 32 bit microprocessor,
            Pass more safty.

32 bit microprocessor in electric board make
the door sliding reversely when touch obstacles;

Opening&closing parameters can be intelligently
ajusted by control panel without extra programmer;

Various connectors can connect with different
optional access control accessory.




One more reducer wheel,more stable and low noise

One more reduce wheel make the teeth belt more stable and low operation noise,
The roller is made of polyurethane,it is durable and light.

Heavy duty automatic sliding door system STM20 200 roller wheel



Heavy duty automatic sliding door system access control system



Complete perfect access control system

Only entering the passcode or swiping card on the
optional  access keypad,people can be entered.

Autodoor can reach the functions of automatic/exit
only/partial open/locked and open by the optional five
key selector.

Various optional accessories such as foot sensor,touch
sensor,push button etc.can be equipped.




Functions of Safty beam and microwave sensor
         are perfectly combined.

The optional active rader&infrared safety sensor is combined the   function of safety beam and microwave sensor
If install it, no need safety beam and microwave sensor.More intelligent and convenient ,only  need one wire
connection, no need more for safety beam and microwave sensor.

Heavy duty automatic sliding door system safety beam and mocrowave sensor




Special LM-shaped girder,”Record”similar quality
Heavier and strong beam and cover
Heavy duty automatic sliding door system STM20 200 cover

STM 20-200 beam and cover

 Weight of 4.2 meters cover is about 16kg

Normal beam and cover from other suppliers

Weight of 4.2 meters cover is only 10 kg

 TECHINICAL SPECIFICATION of Heavy duty automatic sliding door system
 Model  STM 20-200
 Door range  Single leaf Double leaf
 Door leaf weight  Max 200kg*1 Max 180kg*2
 Door width  600~3000mm 600~1500mm
 Opening speed  100~550mm/s(Adjustable)
 Closing speed  100~550mm/s(Adjustable)
 Opening time  0~9 seconds
 Motor  DC 24V Brushless DC Servo Motor
 Supply voltage  Input AC 110V/220V;50-60Hz
 Working temperature  -20~50°C
 Working noise  Less than 50 db



 Heavy duty automatic sliding door system STM20-200 COMPONENTS INCLUDING

 Heavy duty automatic sliding door system STM20 200 whole set



Components Quantity Componets Quantity
Control panel 1 Reveiver 1
Motor gear box assembly 1 Return pulley 1
Microwave sensor 2 Terminal input assembly 1
Tooth belt 1*7m Power switch 1
End stop 3 Hanger roller bracket 2
Remote control 2 Belt bracket link assembly 2
Device for yaw checking 1 Mcrowave sensor 2
Transmission rail and cover 2*2.1m
OPTIONAL ACCESSORIES of Heavy duty automatic sliding door system

 Heavy duty automatic sliding door system accessories

HOW TO CHOOSE THE CORRECT SIZE FOR YOUR DOOR?

Our standard size for the cover and transmission rail is 2*210cm,it is just like the picture one double leaf door shows.If door size is beyond it ,Or if it is single leaf door,please contact us to choose the correct size for you.

           Heavy duty automatic sliding door system style+

                                      Double leaf door                                                                                 Single leaf

PROFILE DRAWING of Heavy duty automatic sliding door system



  profile

PROJECT FROM CUSTOMER

project from customer

 Security design of automatic sliding door:

1. Auto-reversing safety device: door leaves will reverse automatically when touching obstacles or human body, and run at a safe speed when approaching resistance area next time to avoid clipping or machine damage. Thus, the safety of people entering and leaving is improved and the life length of automatic doors is prolonged.
2. Easiness and convenience to open the door: women and children can smoothly and safely open the door during power failure. The opening and closing force is less than 3.5 kg.


Nowadays, there are several business facilities that use heavy duty sliding doors. Such as shop mall, factory, office, public buildings, air port, school etc. In industrial setting, this type of sliding door is usually found in warehouses. Our heavy duty automatic sliding doors offer effective, efficient and safe way to monitor or control getting access inside their building while in other cases may add up some aesthetic look to the building.

Usually, the Heavy duty automatic sliding door system can be triggered through the microwave sensor. The door will definitely open when a certain user or person approaches it and then close automatically. The control system be specialized for the heavy duty doors. It Can operate smoothlyand quietly, the life cycle is about 3 millions.
