Automatic Swing Door Opener SW120 Featured

PRODUCT DETAILS

  • Fob Price: From US $ 395 / Set
  • Model: SW120
  • Port: Shanghai or Ningbo
  • Lead Time: 3~15 Days
  • Warranty: 5 Years

Electric Swing Door Opener With Hand Programmer

push door closer system with push button
One set electric door opener includes: Opener, 2 arms, 2 remotes, 2 push buttons,1 hand programmer.




SW120 Automatic Swing Door Opener Features

  •  Reinforced high strength aluminum alloy and imported original parts used.
  • Imported motor from Germany with fast speed and service life of more than 1 million times, it can work stable and with smooth operation.
  • Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.
  • Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.
  • Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
  • The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).
  • The swing door opener model SW120 can bear withstand the door weight of 120kgs(264.55lbs).
swing  door opener with  hand programmer details

Product Advantages

swing  door  opener  control panel

SW120 Control Panel Details

adjust with hand  programmer

Parameters easily adjustable by hand programmer:

①Opening or closing speeds​

②Manually open force (Push go function)

③Opening direction

④Hold-open time

detail 03details 04

Optional Accessories

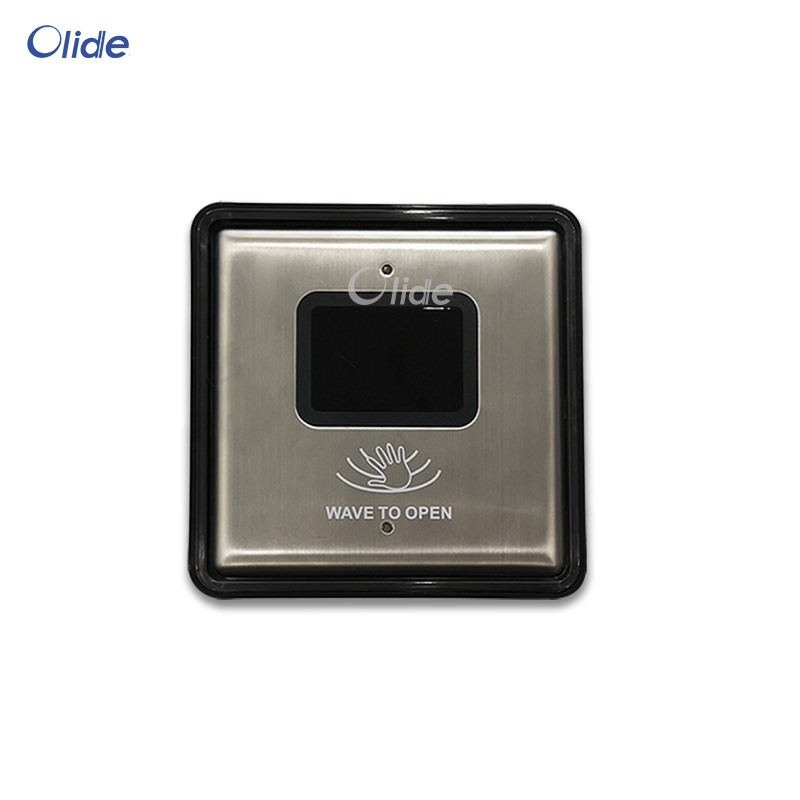

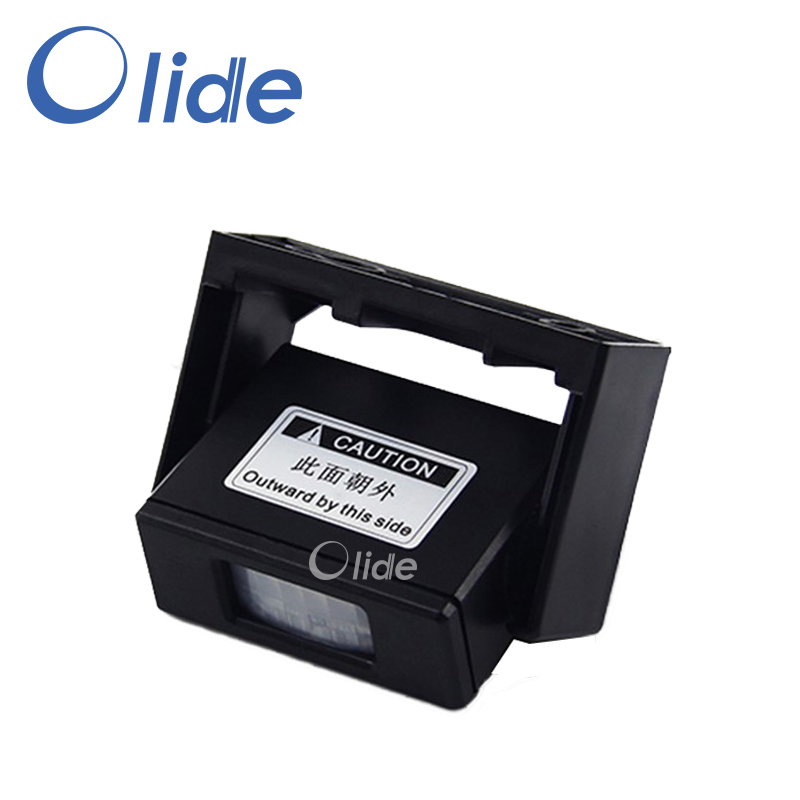

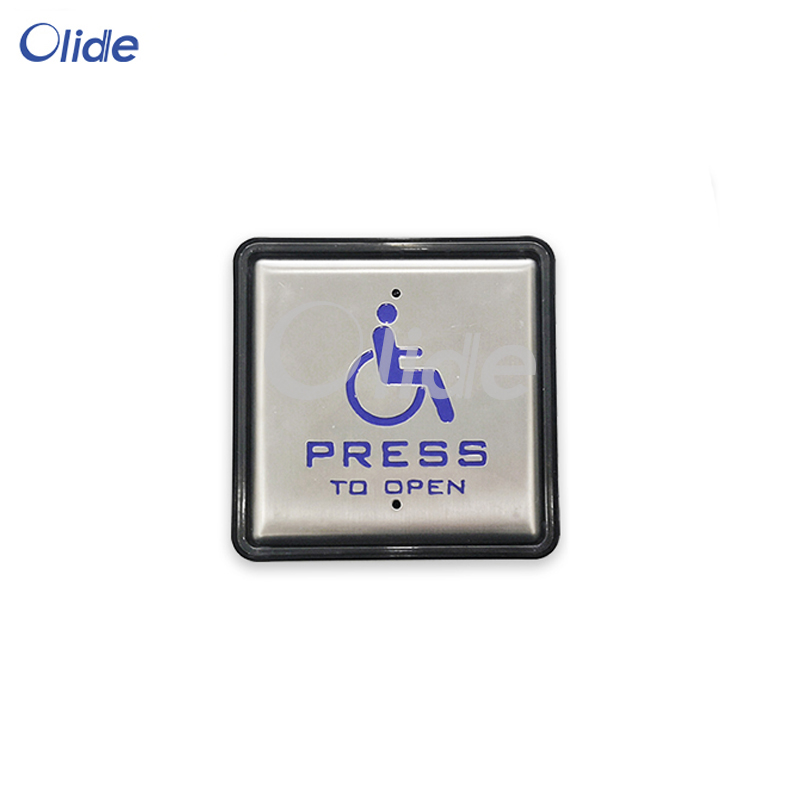

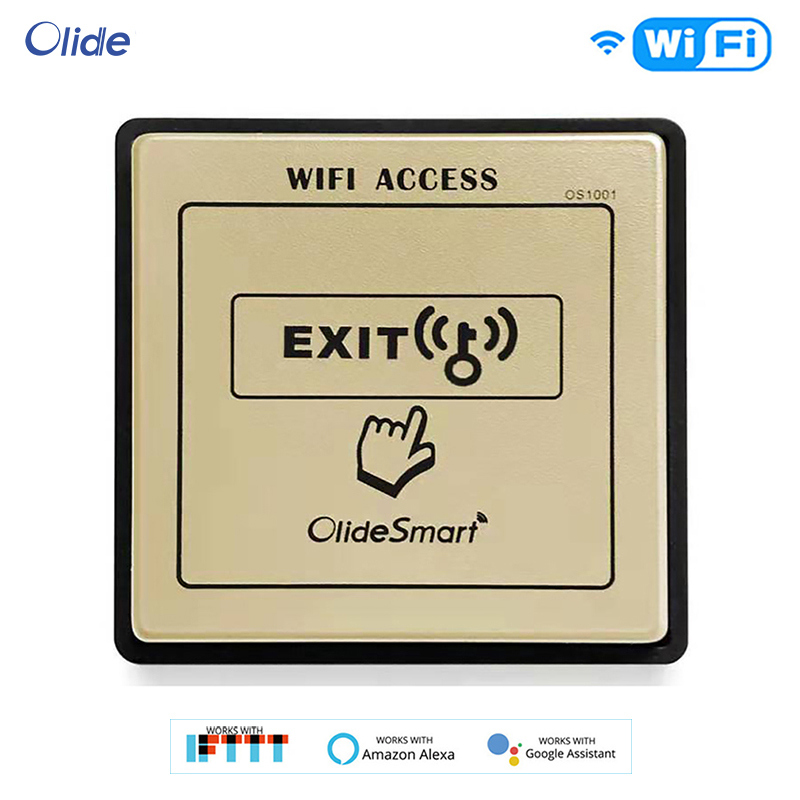

olide OS1001 smart wifi switch  olide passive infrared sensor   Olide wave to open infrared switch  Olide 510 WirelessWired Stainless Steel Handicapped Switch
Work with door opener, can connect with Alexa and Google assistant, also can control the door opener via Phone APP"e-Welink"  Passive infrared sensor, when people approach the door, it opens automatically; Wave to open switch, no touch to open the door Stainless handicapped switch for the disabled, applicable to all kinds of public places

DSW120 Wiring Diagram

sw120 swing door opener accessories wiring


SW120 Installation

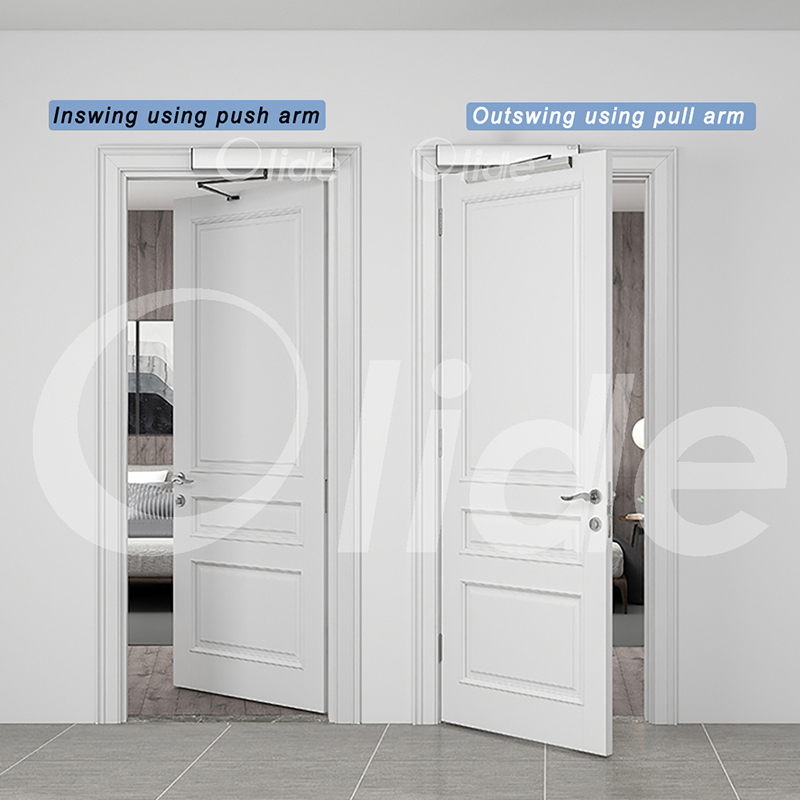

Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.



Swing-door-opener-SW100-details-2(2)SW100  with  hand programmer factory
