Olide DSW120 Automatic Swing Door Opener With Motion Sensor
Olide DSW120 Automatic Swing Door Opener With Motion Sensor

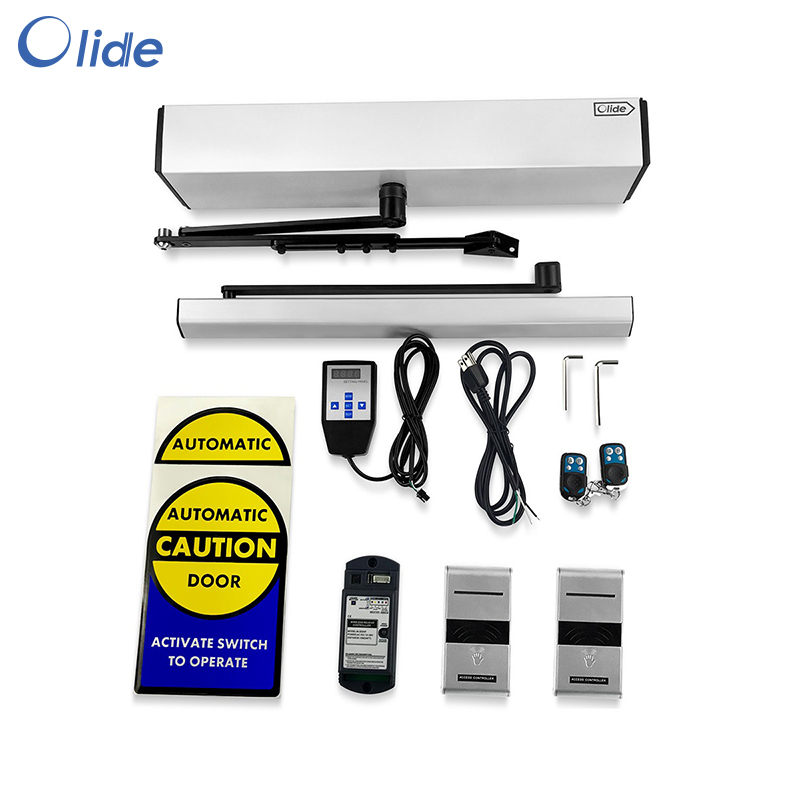

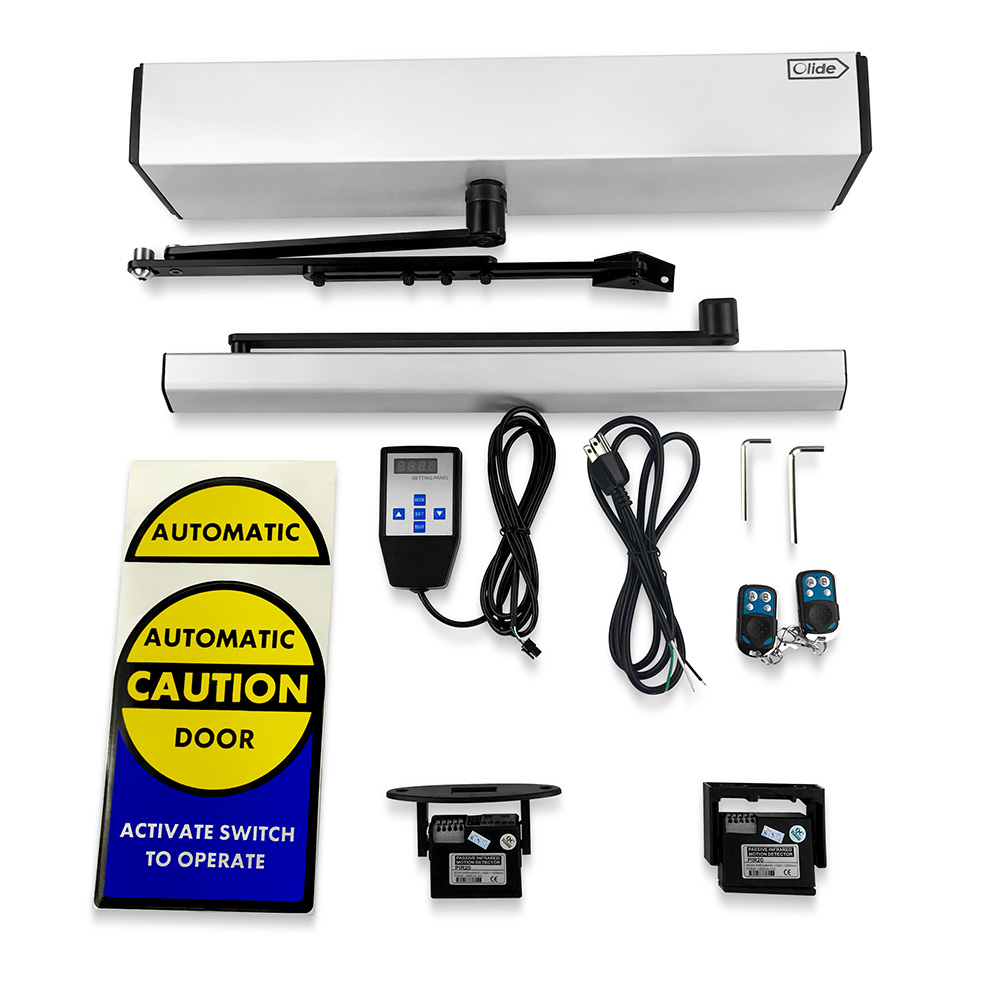

One set electric door opener includes: Opener, 2 arms, 2 remotes, 2 push buttons,1 hand programmer, 2 body sensors,1 plug
Push arm and pulling arm both available, can be mounted on the hinge side and opposite hinge side.
How it work with PIR sensor Videos
Product Advantages

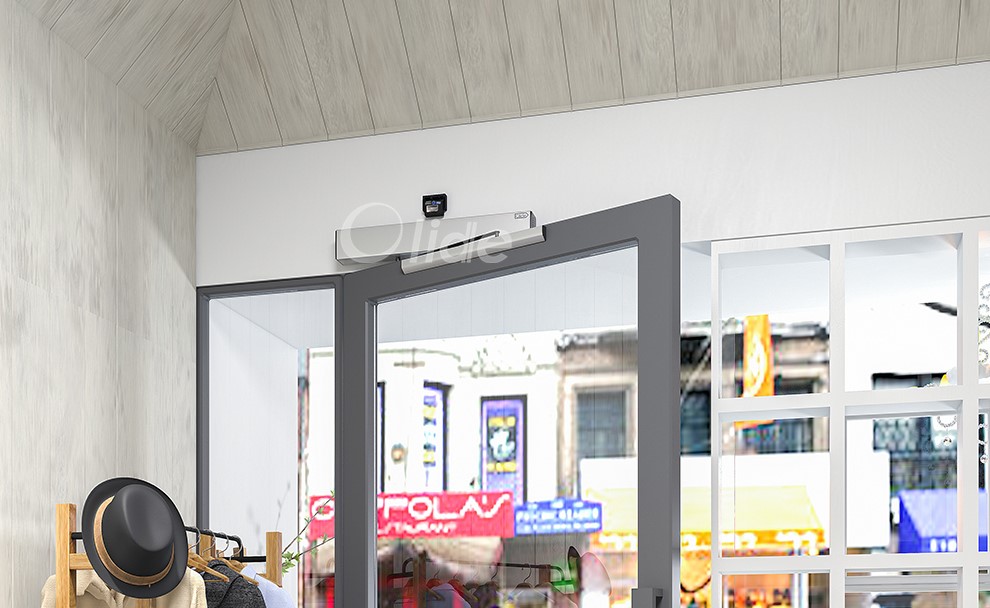

Automatic swing door pair with passive infrared sensor, when someone close to the door, it will automatically open,especially suitable for crowded shopping malls, office buildings and other places.

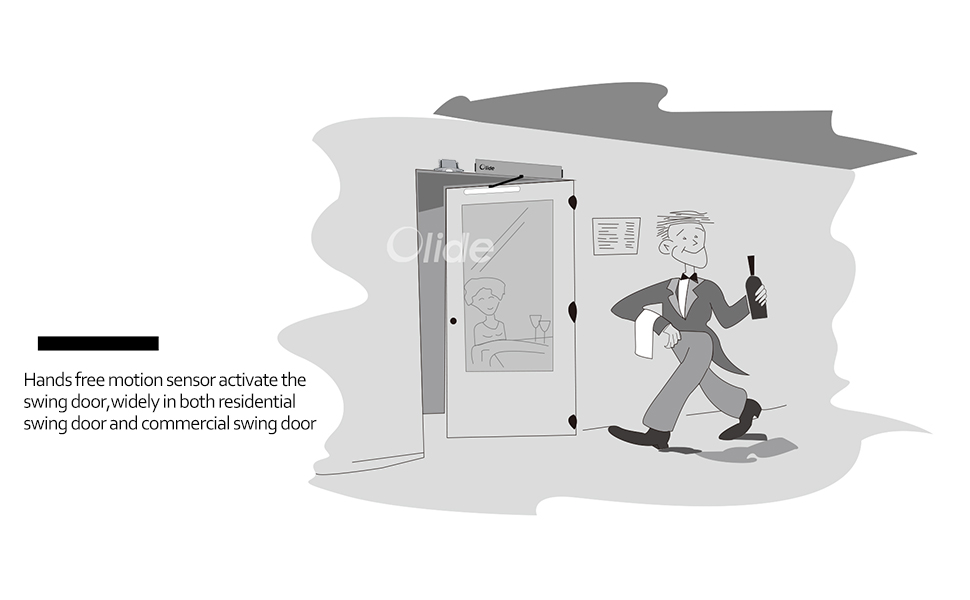

Hands free motion sensor activate the swing door, widely in both residential swing door and commercial swing door, such as bathroom,front door, bedroom; office building, shop mall, store front door, apartment door, hospital, etc.

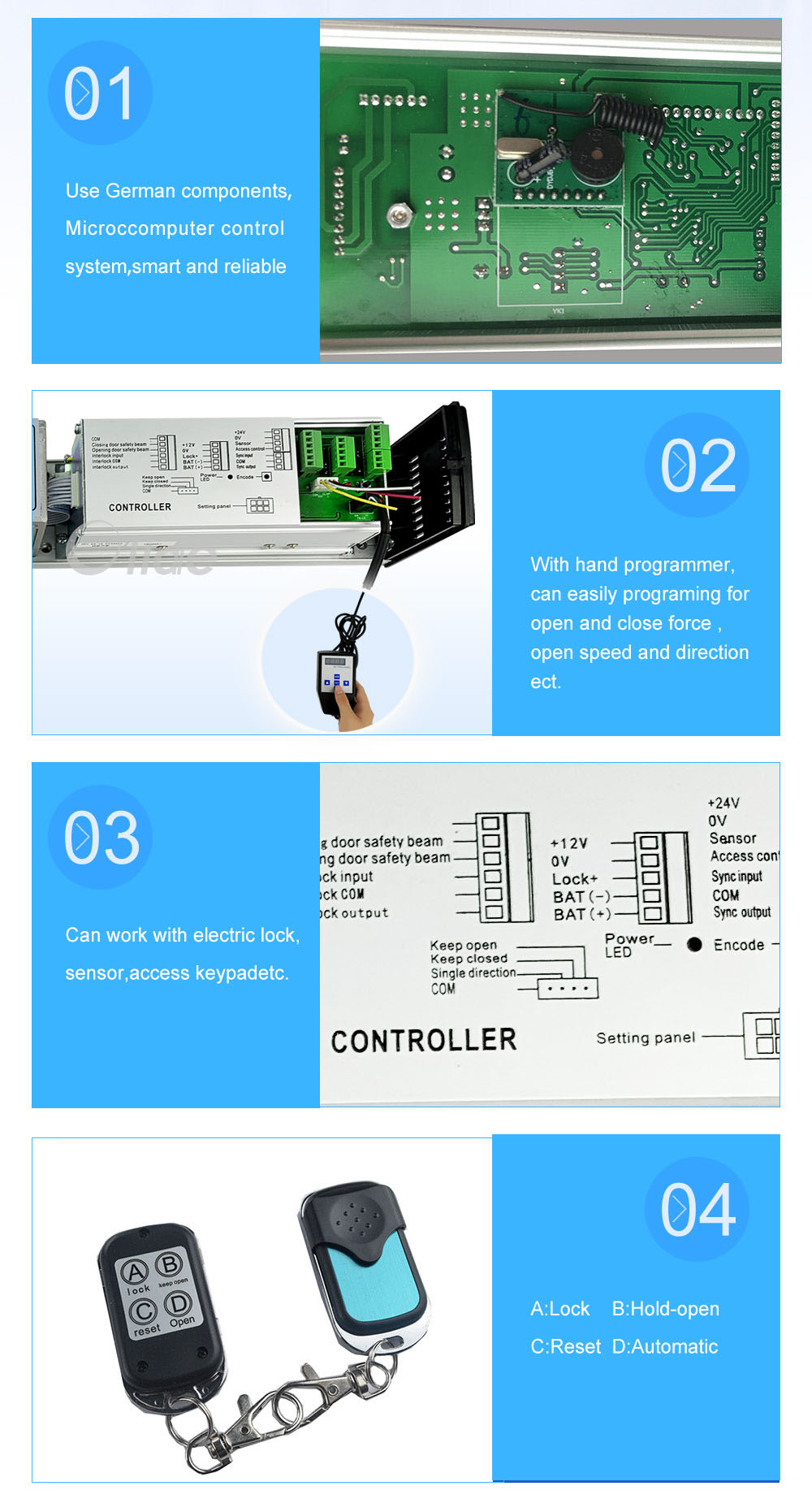

DSW120 Automatic Swing Door Features
1. Reinforced high strength aluminum alloy and imported original parts used.
2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation.
3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.
4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.
5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).
7. The swing door opener model SW100 can bear withstand the door weight of 120kgs(264.55lbs).

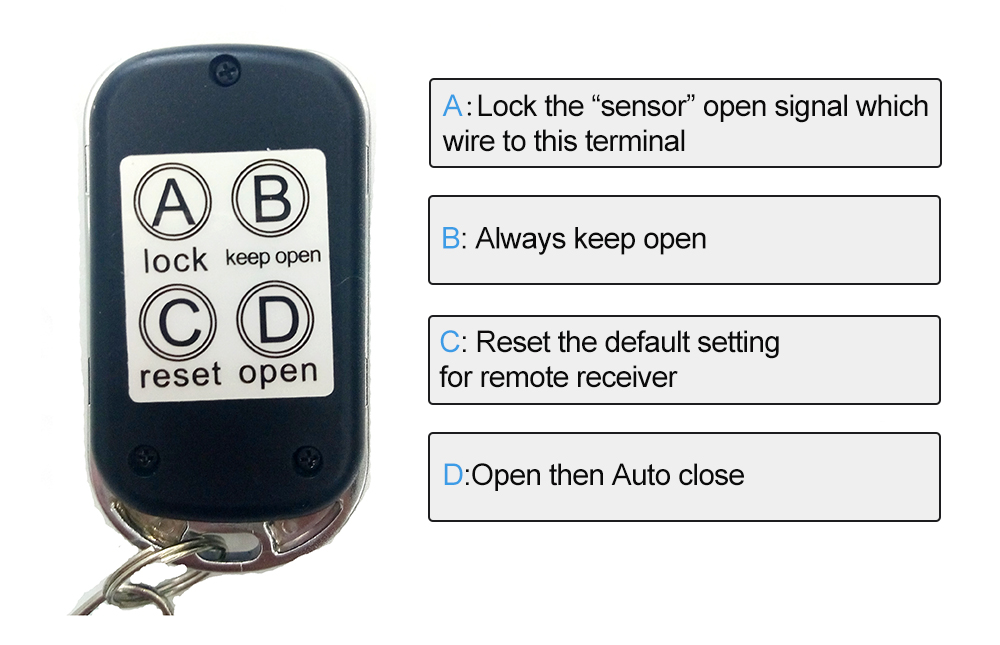

Remote Control Description

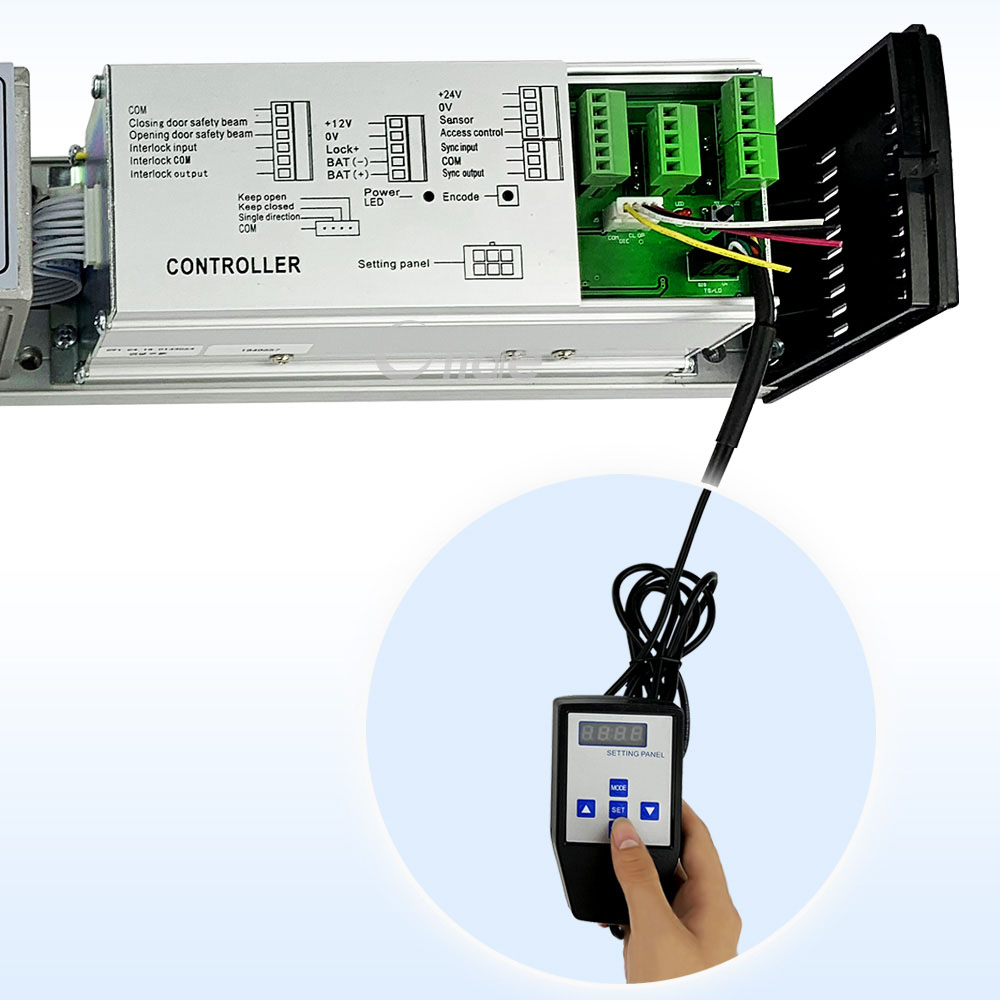

Hand Programmer
Parameters easily adjustable by hand programmer:
①Opening or closing speeds
②Manually open force (Push go function)
③Opening direction
④Hold-open time
Technical Specifications
Open way: Single open or double open
Max door weight: 120kg
Max door width: 1200mm
Power input: AC110V/220V; 50-60Hz
Power consumption: 50W
Open speed: 250-450mm/s (adjustable)
Close speed: 250-450mm/s (adjustable)
Open time: 3-7s (adjustable)
Hold-open time: 1-30s (adjustable)
Manually open force:<30N
Running noise: <=55db
Environment temperature: -20°- +50°C

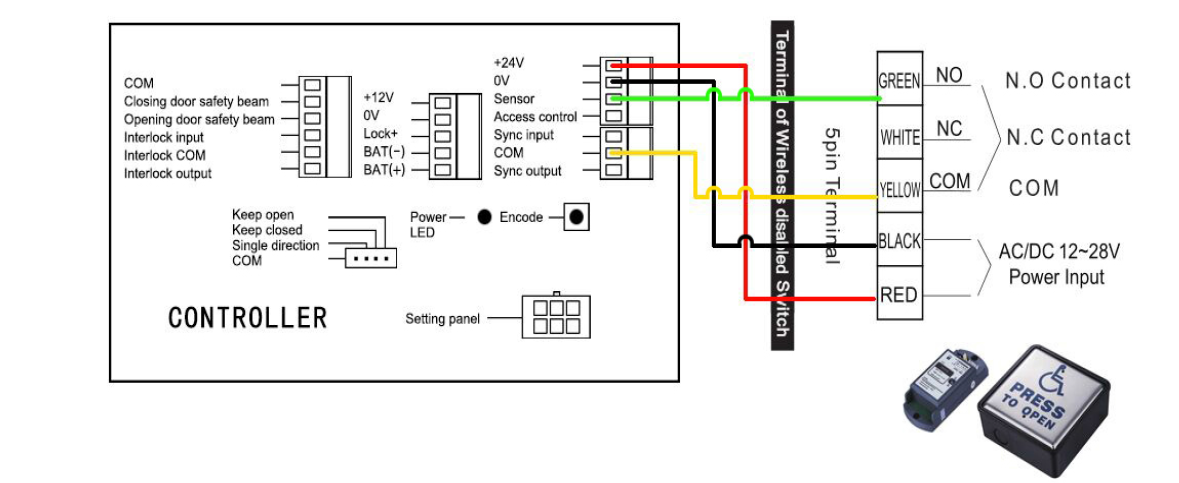

Wiring Diagram
Automatic Swing Door Opener For Disabled
Automatic Swing Door Opener For Disabled
Automatic door opener equipped with handicap door button, once you push the button,it will sends a brief signal to the wireless receiver connected with the ADA door opener, then the door will open and keep open so that people with disabilities can go in and out of places freely and safely.
PUSH&GO FUNCTION:Manually push force can be adjusted Automatically re-open door if it notices an object in the closing path;
Easily set all of parameters by hand programmer;
Wide voltage technique workable with input voltage AC100V to AC240V;
Interfaces with handicapped push switch,electric strike (lock),wireless push switch,body sensor,access lock,etc.
OLIDE DSW120 ADA AUTOMATIC SWING DOOR OPENER FEATURES
-
WIDELY APPLICABLE
Suitable for office buildings, shop, banks, hospitals, restaurants, factories, hotels, shopping centers, laboratories, etc., to ensure maximum walking and cargo transportation.
-
RELIABILITY
The microcomputer controller uses the top technology, can detect the condition of the door (size, weight), set the optimal operating parameters, keep the door in the best running state, and have the function of memory and correction; high intelligence. With the use of the remote control, it is possible to limit the entry and exit of personnel, and to eliminate the safety of unmanned lock doors.
-
SAFETY
When the door leaf is in the process of closing the door, if an obstacle or an abnormal situation such as the human body is encountered, the door leaf can be immediately reversed and retracted to prevent the occurrence of pinch events or mechanical damage, and ensure the safety of personnel entering and leaving. When the power is off, you can open the door with your hand.
-
ENERGY-SAVING
High-quality design and production ensure unimpeded flow. At the same time, excellent sound insulation, heat insulation and dustproof effect can ensure the building's energy consumption.
-
AESTHETICS
The shape, appearance and function of the door can be adjusted according to your requirements to achieve the best results.
-
CONVENIENCE
Provides interfaces such as sensors, access control, and safety sensor protection, and is equipped with an electric lock and a power output interface. Can choose the wireless remote control to open the door.
Arms Optional
Technical Specifications
Operation Noise: | Less than 55db | Voltage: | 110-220 VAC +/-10% |
Motor: | DC 24V brushless motor | Power Consumption: | 50W |
Opening Time: | 3-7 sec. @ 90 degrees | Hold Open Time: | 1-30 sec. Adjustable |
Max. Door Frame Depth: | 450mm / 17.7" | Door Width: | Max. 1200mm / 47.2" Min. 660mm / 26" |
Max. Opening Angle: | 120 degrees | Environment Temperature: | -20C to 50C -4F to 122F |
Swing application: | one-way inswing or outswing open, single leaf and double leaf standard doors |
Wiring Diagram
Touchless Open Automatic Swing Door Opener DSW120 with Hand Sensor
Touchless Open Automatic Swing Door Opener DSW120 with Hand Sensor
Due to the long-term interaction between the indoor door and people, the automatic swing door can protect a variety of people (old people, children, disabled people).
Especially during the new coronavirus, non-contact opening and closing doors can reduce the risk of infection.
The product can be used for the sensing control of non-contact access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.
Features of hand sensor switch
- The infrared modulation and demodulation sensor will absolutely not generate any interfering or interfered signals.
- Front non-contact sensing with a hand (or reflectance), clean and sanitary.
- Adjustable sensing distance between 1cm and 20cm can be set freely adjusted according to different occasions.
- Imported high sensitivity infrared sensor has timely and convenient sensing ability.
- Wireless transmitting using RF 315MHZ can realize long and stable transmitting distance.
DSW120 Automatic Swing Door Opener Features
- No transformer drive device has a wider voltage range.
- Low operating noise, reliable performance, and safe use.
- Providing more convenience for living and working environments.
- The service life of more than 1 million times ensures that the equipment can be used for a long time.
- The design of the mechanical part is innovative, making installation easier and faster.
- Provide sensors, access control, safe light protection and other interfaces, and can equipped with electric locks and power output interfaces.
You can choose the door opening method of the wireless remote control. You can open the door by hand when the power is off. It can also be configured with various sensors, card readers, push switches, smart switches, electric locks, etc. to realize the interlocking function between doors and support multiple access control systems.
With the continuous popularization of smart homes and smart buildings, we are constantly upgrading and expanding the ports. At present, our machine can be connected to the smart speaker Alexa, and can be opened and closed using a mobile phone.
Product Applications
Generally used in: hospital swing doors, restaurant, garage swing doors, household swing doors, residential quarters, public places, factory production areas, laboratories and other places.
Technical Specifications
Open way: | Single open or double open | Max door weight: | 120kgs |
Max door width: | 1200mm | Power input: | AC110V/220V; 50~60Hz |
Power consumption: | 50W | Open speed: | 250-450mm/s(adjustable) |
Close speed: | 250-450mm/s(adjustable) | Open time: | 3-7s(adjustable) |
Hold-open time: | 1-30s(adjustable) | Manually open force: | <30N |
Running noise: | <=55Db | Environment Temperature: | -20°C~50°C |
