Why do you think automatic swing door mechanism products are making their way to the market? They are safer and more convenient to use where they are needed. And just where these places may be? Here are some of the places where you can use an Low energy ADA swing door operator:
• At home. This is especially beneficial if there are old people or disabled persons living in the house. They don't have to exert a lot of effort to swing the door with an automatic door device. It will be as easy as pushing a button that will energize an actuator to release the swing motor in motion.
• In hospitals. Hospitals are not just very busy places but these are where disabled people are mostly found, so the need for very easy to use swing doors is highly necessary. Their installation in every room will even make the lives of attending doctors and nurses easy not only during emergency times, but every day.
• Rehabilitation centres. Though rehabs do have a bad connotation as it normally suggests centers for those who have gone the extremes say addiction to drugs or liquors, these places may also represent areas for those who are recuperating from temporarily or permanently handicapped conditions. For this reason that easy to use swing doors are very important.

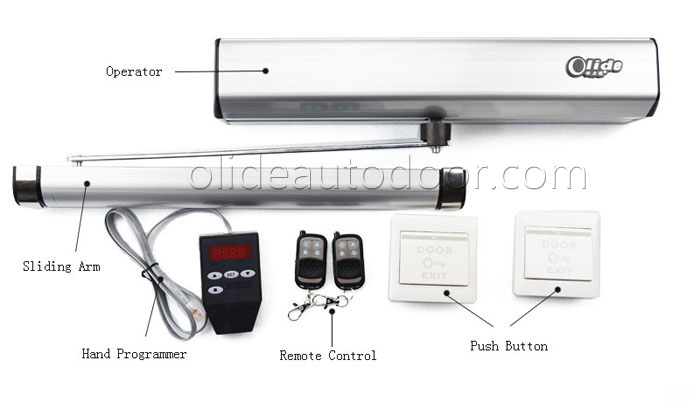

One set Automatic Swing Door Mechanism includes: Opener, 2 arms, 2 remotes, 2 push buttons. Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.

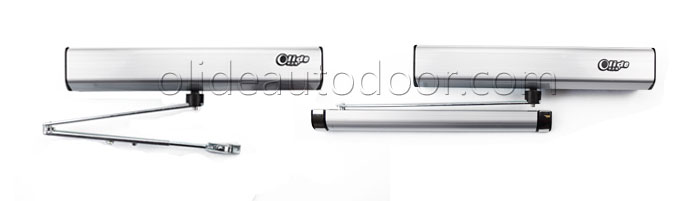

Articulated Arm Sliding Arm

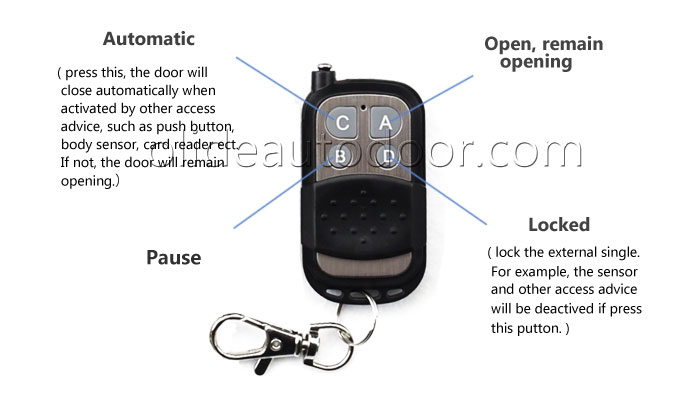

Remote control Introduction
| Model | SD3108 |
| Swing application | One-way open, single leaf and double leaf standard doors |
| Power supply | 220V/AC 110V/AC 50/60Hz |

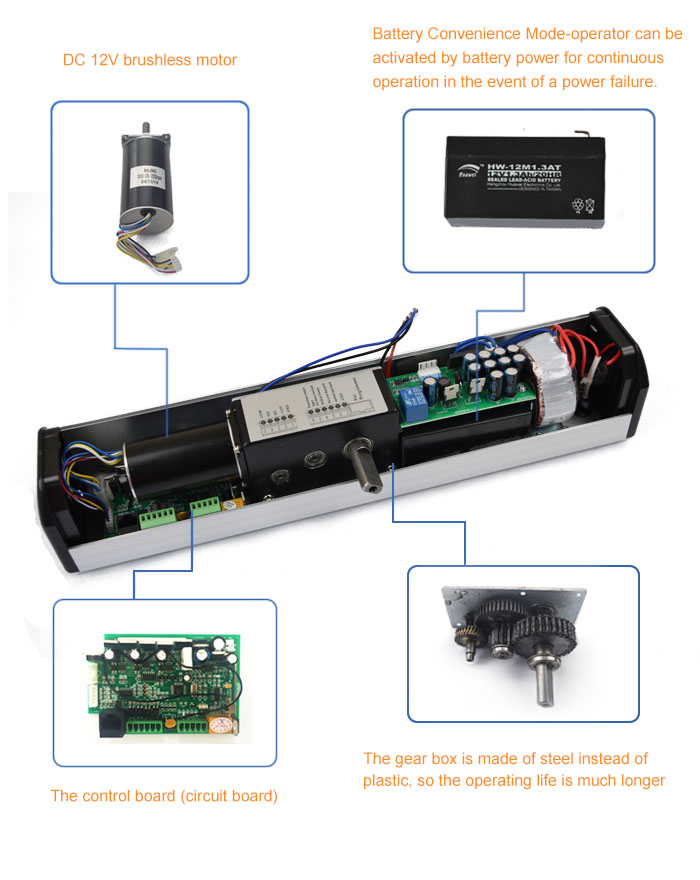

| Motor | DC 12V brushless motor |
| Rated power | 45W |
| Door width | 1200mm |
| Door weight | 120kgs |
| Opening/Closing speed | 2-8 seconds (adjustable) |
| Opening time | 0-120seconds (adjustable) |
| Hold-open time | 1-30seconds (adjustable) |
| Environment temperature | -20 ~ +50°C |
| Manual force | <30N |
| Operation noise | <55db |

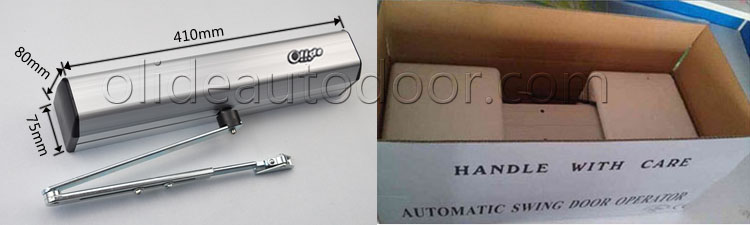

| Opener size | 410mm(L)*80mm(W)*75mm(H) |
| Packaing size | 460mm(L)*200mm(W)*120mm(H) |
| Opener weight | 5.5 kgs |
1. surface mounting
2. Push-Go: Automatic activation by pushing or pulling door panel
3..Quiet and aesthetically pleasing
4. Electric strike integration
5. Efficient and cost-effective
Note: backup battery is optional accessory, not included in one complete set.

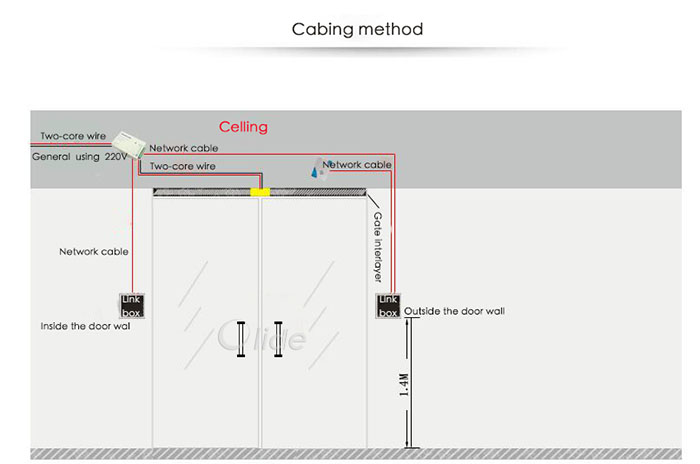

1. Access keypad (card reader)
Designed for the control of office building,office,residential house, security system.Card reading and password inputting.Great power of card reading with the distance no less than 10cm.
2. Wire&wireless push button

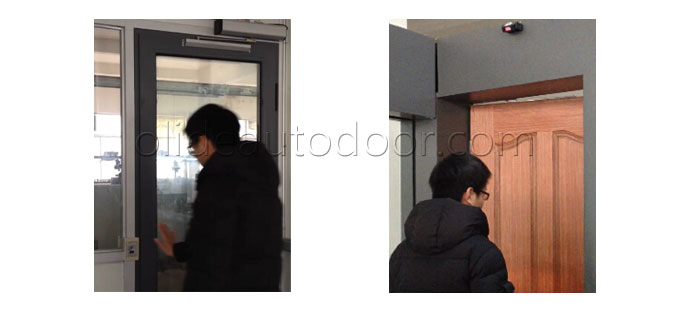

3. Hand sensor switch
With the non-contact induction design, door can be open in an easy and clean way.Transmit distance is adjustable from 1 to 15 cm.
4. Passive Infrared sensor (Body sensor)
Just induce the movement of human body only.When someone moves, the sensor will react and door operator will be triggered to operate.Maximum detection speed: 5cm/s.
5. Foot sensor
When feet is detected, beam will be cut off and thereby trigger the signal for door opening.
5. Electric lock
Make your doors more security. Easy installation. Provide with bracket for installation.Holding force: 280Kg(600Lbs).

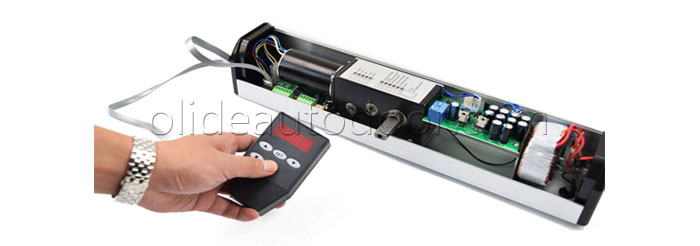

6. Hand programmer
Easily adjustable opening&closing speed, opening angle,hold open time by hand programmer.
| S/N | Value scope | Initial value | Function description |
| 1 | 10-100 | 65 | Opening speed |
| 2 | 10-100 | 55 | Closing speed |
| 3 | 1-10 | 2 | Damping opening speed |
| 4 | 1-10 | 2 | Damping closing speed |
| 5 | 1-60 | 20 | Damping opening distance |
| 6 | 1-60 | 20 | Damping opening distance |
| 7 | 0-120 | 2 | Hold-open time |
| 8 | 0-3 | 1 | Delay open time |
| 9 | 0-1 | 1 | Left and right directions of door opening |
| A | 0-1 | 1 | Fire alarm signal to open/close door |
| B | 30-200 | 90 | Opening/Closing angle |
| C | 0-30 | 20 | Locking force |
| D | 0-60 | 20 | Opeing braking force |
| E | 0-60 | 20 | Closing braking force |
Know more about the operator, function, programming, please visit our videos on Youtube:
 |
A safety feature is built-in to each door opener. When an obstacle is detected during the Operation of the opener,it will stop the opening or closing cycle immediately,until the opener is activated again and the obstacle is |
 |
| Manually open when power off |
• Public buildings like airports and stations. Because public places are where the most people are expected, it is a must that easy access on these places are guaranteed. And that is where the automatic swing door mechanisms are needed. These devices will be installed into every swing door to make them as effortless to swing out and back for all the people going in and out of these buildings.
• Schools. Schools are also very busy places and though it is best that they are secured, it is also important that the entrance and exit to these places are also very easy and effortless. Besides, no one wants to make every little child suffer in pushing out and back a swing door. Installing in an electromechanical swing door operator is then the next best thing in these places.
• Comfort rooms, both private and public. Toilets and baths are supposed to be very accessible because of the importance of their duties. Therefore, it is best that they are equipped with automatic swing door mechanism so as to help every user in getting access to the comfort room a lot easier.
If you want to get the Automatic Swing Door Mechanism price or more details, feel free to contact with us.
