1.It adopts various forms of door edge wrapping, is equipped with high-strength durable seal strips, and satisfies with purification requirements.
2. The operator track rail of on-wall type is directly mounted onto the wall, easy and fast for installation.
3. It adopts high-quality hardware, and is beautify, delicate, practical and reliable.
4. Unique design of handles to reduce manual opening force when power off.
5. Operating quietly and fast, the sound insulation effect is good.

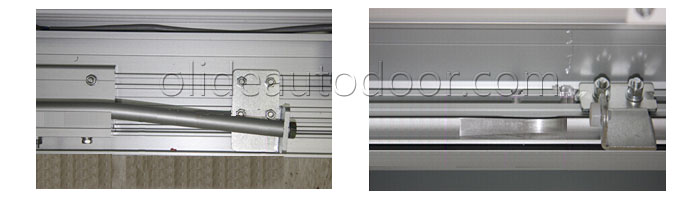

6. Rubber lining sealing technology combined with groove on the guide rail enables the door completely sealed when the door closed.
Rubber lining sealing technology combined with groove |

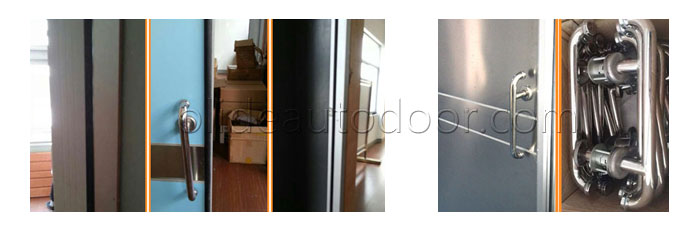

Unique design of handles to reduce |

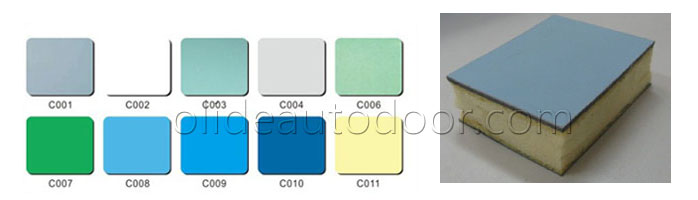

Choose color on the door body surface | Xray door lead lined inside 1.5mm |
Door sliding modes | Single-opening | Double-opening |
Dooe leaf weight | ≤1*195 kg | ≤2*185 kg |
Door leaf width | 600-1200mm | 500-1150mm |
Opening speed | 150-500mm/s(Adjustable) | 150-450mm/s(Adjustable) |
Closing speed | 100-450mm/s(Adjustable) | 150-430mm/s(Adjustable) |
Motor | 24V 100W brushless DC motor | |
Opening time | 0-9s(Adjustable) | |
Automatic function | Automatically reverse upon obstruction | |
Voltage | AC220V 50Hz-60Hz | |
Operating ambient Temp. | -20°C~60°C |
video on youtube:
High dynamic acceleration, low moment of inertia extremely |
1. Indepent power supply makes the door more efficiency and |

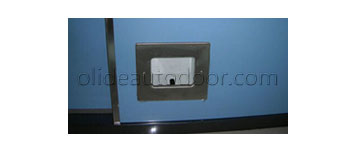

Foot sensor makes doctors and nurses more covenient enter |

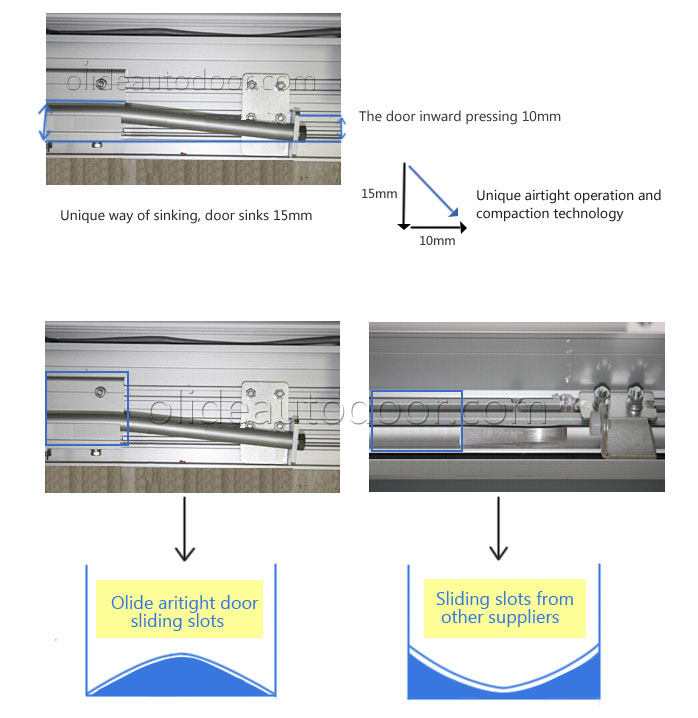

Olide air tight door guide rail use unique technology, which makes door completely sealed when door closed. |
|
Olide airtight door sliding slots use convex structure, which makes altering trajectory more flexible, also can be dust proof. |
|

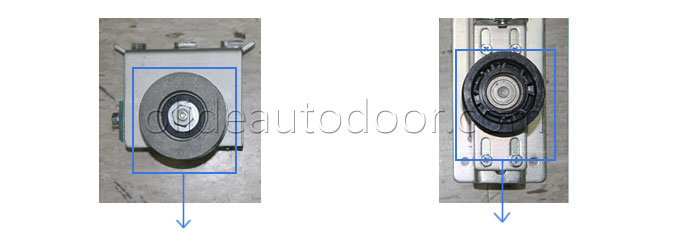

Olide tensioning wheel material is galvanized steel, reliable and long-lasting |
tensioning wheel from other supplier material is plastic, fragile and lower use life. |
