Olide-120B Automatic Glass Swing Door Opener

One set electric door opener includes: Opener, 2 remotes, 2 pcs push buttons,1 hand programmer,1 plug, sticker, push arm for outswing door,push arm glass clamp,pull arm for inswing glass door

olide 120B automatic glass swing door opener

1. Reinforced high strength aluminum alloy and imported original parts used.

2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation

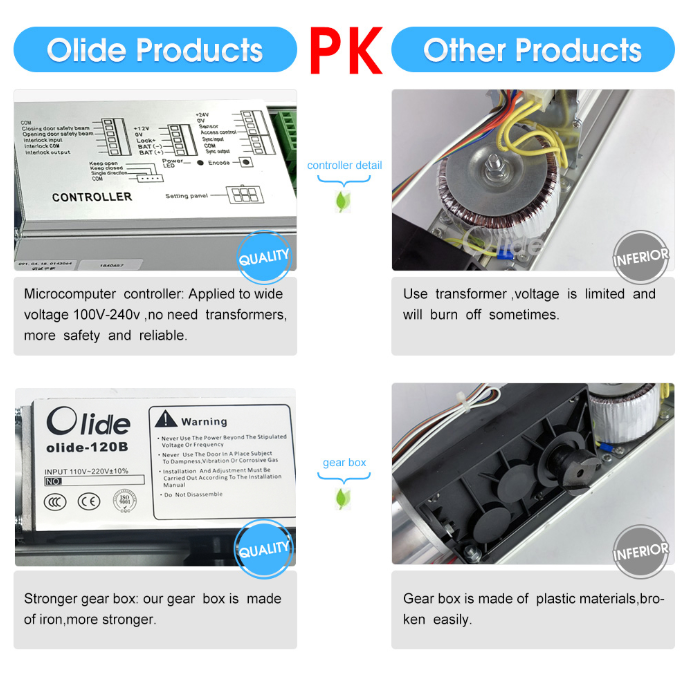

3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.

4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensors.

6. The remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

7. The swing door opener model Olide-120b can bear withstand the door weight of 120kgs(264.55lbs). Widely used for glass swing door.

olide-120B automatic glass swing door opener

Technical Specifications

Voltage: 110-220V AC+-10% Power Consumption:  50W
Opening Time: 3-7 sec.@90 degrees Hold Open Time: 1-30 sec. Adjustable
Max. Door Frame Depth:     450mm/17.7" Min. Door Width: 660mm/26"
Max. Door Width: 1200mm/47.2" Max. Opening Angle:     120 degrees
Environment Temp.: -20°C-50°C   -4F-122F    Protection Class: IP12D

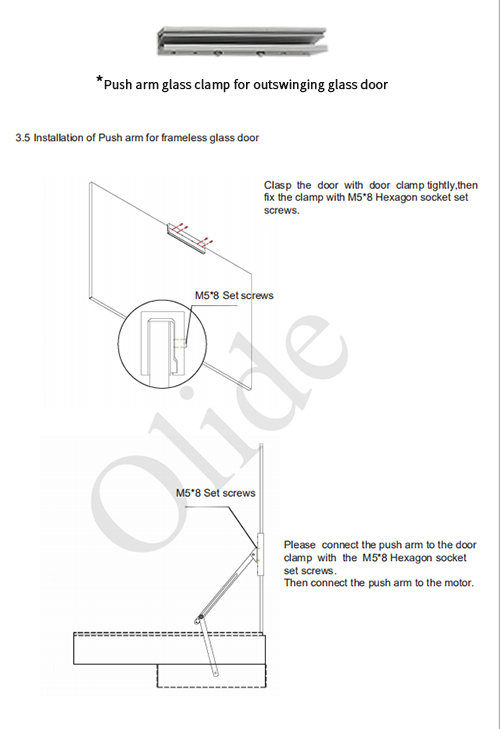

Olide-120B Installation For Push Arm

olide 120B push arm Installation

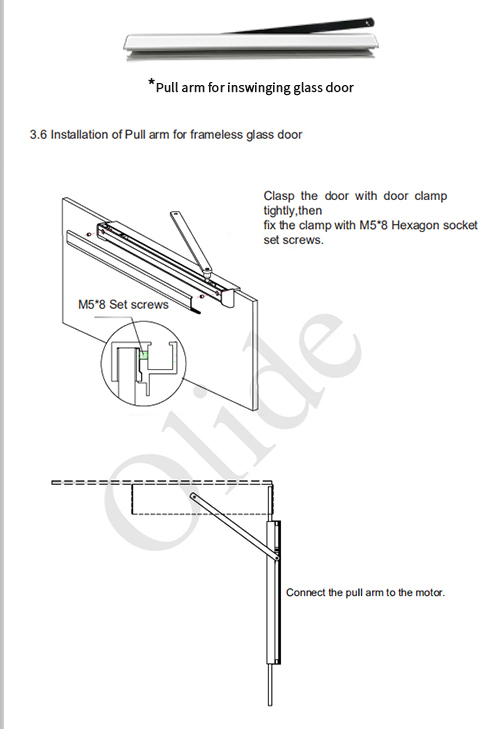

Olide-120B Installation For Pull Arm

olide 120B pull arm Installation

Wiring Diagram

swing door opener olide-120B wiring connection details
