Products Automatic swing doors automatic door
1. The motor adopts DC24V turboworm motor with one grade variable speed and long service life. The controller can be directly connected with the access control, electric lock, etc., without additional 12V power supply.
2. The automatic sswing door opener model SW200 can hold up to 200kgs of weight, making it more powerful to run. If it is a frameless glass door, which can be equipped with a frameless glass clip,and door can run smoothly.
3. Reinforced high strength aluminum alloy and imported original parts used. -- Whole machine adopts the imported original parts, with reinforced high strength aluminum alloy shell design, anti-pressure and anti-wear, firm and durable.
4. Imported motor from Germany -- The motor are imported from Germany with fast speed and service life of more than 1 million times. The motor adopts optimized design, which has higher efficiency and can produce considerable energy saving effect.
5. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage. You don't need extra hand programmer to adjust the parameters, you can adjust the parameters directly on machine.
6. Universal voltage can widely used -- The motor design takes into account the variation of voltage in different regions, makes the motor adapt to the use of voltage in multiple regions, and guarantees the user performance.(It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.)
7. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
8. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).
More Details
 |
 |

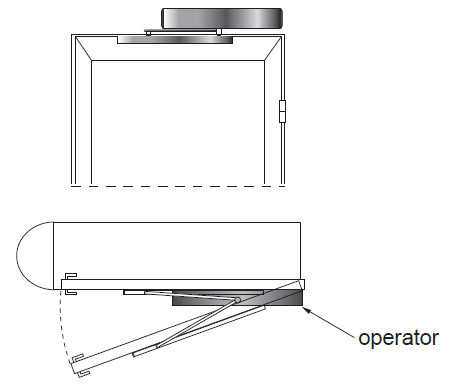

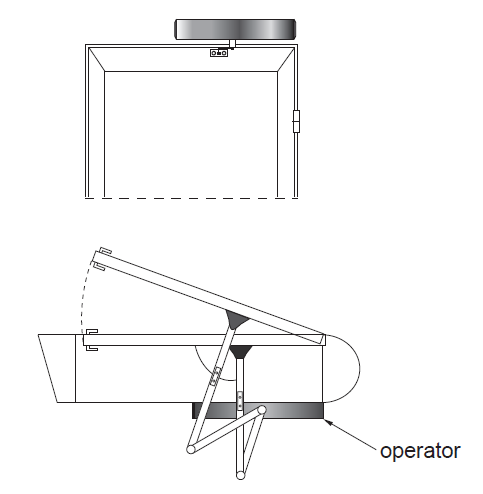

| Pull Arm Installation | Push Arm Installation |
| Operation Voltage: | AC220V - 250V |
| Power Supply External Consumer: | 24V DC (+-10%), 3A |
| Door Opening Angle: | Max 120° |
| Opening Speed: | 45°/s |
| Closing Speed: | 45°/s |
| Hold-open Time: | 0-60s |
| Protection Class: | IP42 |
| Ambient Temperature: | -20°~+50°C |
Know more about the operator, function, programming, please visit our videos on Youtube:
One set electric door opener includes: Opener, 2 arms, 2 remotes, 2 push buttons. Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.
Articulated Arm Sliding Arm
Remote control Introduction
| Model | SD3108 |
| Swing application | One-way open, single leaf and double leaf standard doors |
| Power supply | 220V/AC 110V/AC 50/60Hz |
| Motor | DC 12V brushless motor |
| Rated power | 45W |
| Door width | 1200mm |
| Door weight | 120kgs |
| Opening/Closing speed | 2-8 seconds (adjustable) |
| Opening time | 0-120seconds (adjustable) |
| Hold-open time | 1-30seconds (adjustable) |
| Environment temperature | -20 ~ +50°C |
| Manual force | <30N |
| Operation noise | <55db |
| Opener size | 410mm(L)*80mm(W)*75mm(H) |
| Packaing size | 460mm(L)*200mm(W)*120mm(H) |
| Opener weight | 5.5 kgs |
1. surface mounting
2. Push-Go: Automatic activation by pushing or pulling door panel
3..Quiet and aesthetically pleasing
4. Electric strike integration
5. Efficient and cost-effective
Note: backup battery is optional accessory, not included in one complete set.
1. Access keypad (card reader)
Designed for the control of office building,office,residential house, security system.Card reading and password inputting.Great power of card reading with the distance no less than 10cm.
2. Wire&wireless push button
3. Hand sensor switch
With the non-contact induction design, door can be open in an easy and clean way.Transmit distance is adjustable from 1 to 15 cm.
4. Passive Infrared sensor (Body sensor)
Just induce the movement of human body only.When someone moves, the sensor will react and door operator will be triggered to operate.Maximum detection speed: 5cm/s.
5. Foot sensor
When feet is detected, beam will be cut off and thereby trigger the signal for door opening.
6. Electric lock
Make your doors more security. Easy installation. Provide with bracket for installation.Holding force: 280Kg(600Lbs).
7. Hand programmer
Easily adjustable opening&closing speed, opening angle,hold open time by hand programmer.
| S/N | Value scope | Initial value | Function description |
| 1 | 10-100 | 65 | Opening speed |
| 2 | 10-100 | 55 | Closing speed |
| 3 | 1-10 | 2 | Damping opening speed |
| 4 | 1-10 | 2 | Damping closing speed |
| 5 | 1-60 | 20 | Damping opening distance |
| 6 | 1-60 | 20 | Damping opening distance |
| 7 | 0-120 | 2 | Hold-open time |
| 8 | 0-3 | 1 | Delay open time |
| 9 | 0-1 | 1 | Left and right directions of door opening |
| A | 0-1 | 1 | Fire alarm signal to open/close door |
| B | 30-200 | 90 | Opening/Closing angle |
| C | 0-30 | 20 | Locking force |
| D | 0-60 | 20 | Opeing braking force |
| E | 0-60 | 20 | Closing braking force |
 |
A safety feature is built-in to each door opener. When an obstacle is detected during the Operation of the opener,it will stop the opening or closing cycle immediately,until the opener is activated again and the obstacle is |
 |
| Manually open when power off |
|
DC 24V Brushless Motor
|
 |
|
|
|
 |
Separete transformer,electric voltage and
|
|
|
|
|
One more reducer wheel,more stable and low noise
|
|
 |
|
|
|
|
 |
Complete perfect access control system
|
|
|
|
|
Functions of Safty beam and microwave sensor
|
|
 |
|
|
|
|
|
SD 280 cover and beam SD 280 cover and beam |
|
| Model | SD280 | |
| Door range | Single leaf | Double leaf |
| Door leaf weight | Max 180kg*1 | Max 180kg*2 |
| Door width | 600~3000mm | 600~1500mm |
| Opening speed | 100~750mm/s(Adjustable) | |
| Closing speed | 100~750mm/s(Adjustable) | |
| Opening time | 0~10 seconds | |
| Motor | DC 24V Brushless DC Servo Motor | |
| Supply voltage | Input AC 110V/220V;50-60Hz | |
| Working temperature | -20~50°C | |
| Working noise | Less than 50 db | |
| Components | Quantity | Componets | Quantity |
| Control panel | 1 | Reveiver | 1 |
| Motor gear box assembly | 1 | Return pulley | 1 |
| Microwave sensor | 2 | Terminal input assembly | 1 |
| Tooth belt | 1*7m | Power switch | 1 |
| End stop | 3 | Hanger roller bracket | 2 |
| Remote control | 2 | Belt bracket link assembly | 2 |
| Device for yaw checking | 1 | Tansformer | 1 |
| Transmission rail and cover | 2*2.1m | Mcrowave sensor | 2 |
Our standard size for the cover and transmission rail is 2*210cm,it is just like the picture one double leaf door shows.If door size is beyond it ,Or if it is single leaf door,please contact us to choose the correct size for you.
Double leaf door Single leaf
 |
