active&safety sensor

Technical Data

Power Input

            AC/DC 12 to 30V (-/+10%)

Cable Length

 2.5m

Protection

I p54

Signal Output

Re I ay

Max Installation Height

2500mm

Static Current

65mA

Action Current

130mA

Dimension

260 (L) X57 (W) X45 (H) mm

Cover

ABS





 RAY TYPE

Reflect infrared

Ray Source

Infrared940mm

Quantity of Ray

8 emit rays and 8 receive rays

Self-learning time

10 s

Operation Indicate

Standy by Blue LED, Action by Red LED

Temperature

-40°C to 60°C

Detection Range

1600 (W)  X800 (D) mm

Output time

500ms

Respond

100ms

Optical surface

PMMA



Product overview

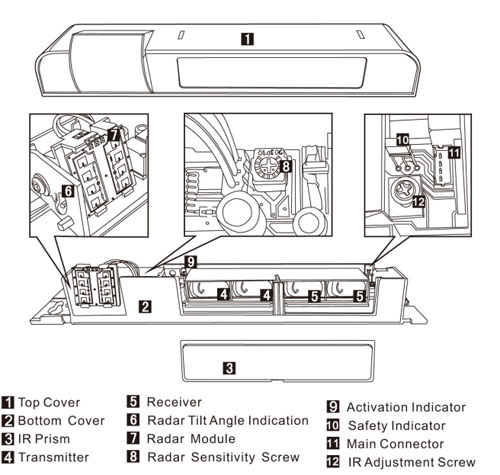

 product overview


1.Combined radar activation and Infrared safety sensor is used for automatic sliding door, folding door and Curve door. Radar technology is for  door activation. Infrared technology is for door safety entrance.

2. Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions. Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable.

3. Microwave technology adopts the Germany Microwave sensor module, ignore the influence by temperature and humidity with reliable working performance.



Activation And Safety Detection Range and sensing field

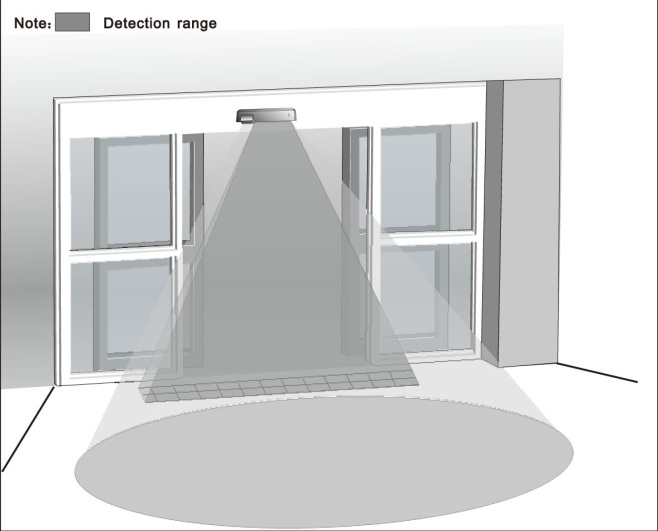

activation and safety detection range

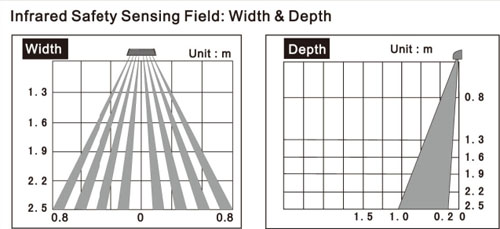

infrared safety sensing field

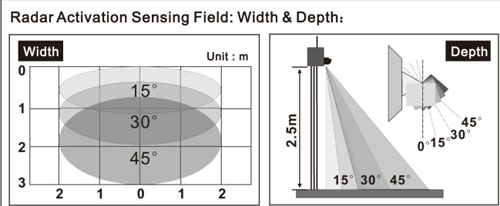

radar activation sensing field



Installation

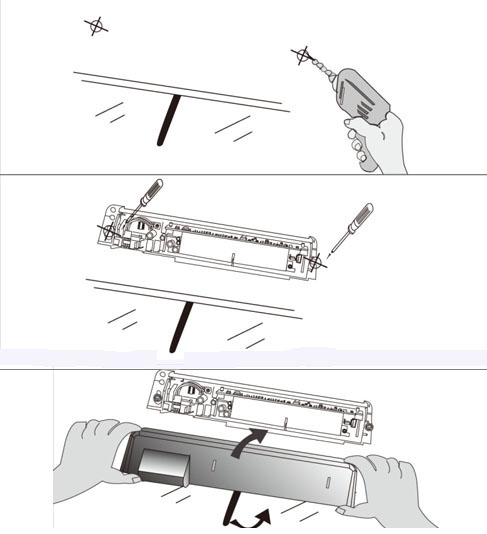

dual sensor installation
