Olide Dual Automatic Swing Door Closer

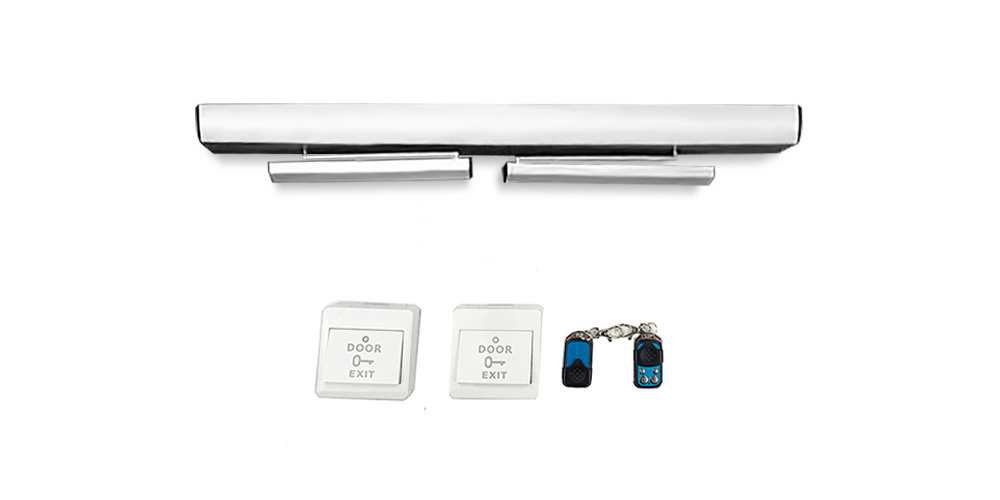

SW200 double swing door opener

Notes:

Please choose your door opening type (push opening or pull opening) so that we can send you right arms.

Complete set included:Opener, 2 arms(push arms or pull arms), 2 remotes, 2 push buttons,1 hand programmer.

Automatic Double Swing Door Closer working video

Automatic Swing Door Closer with Push Buttons Advantages

SW200 automatic swing door opener
1.The motor adopts DC24V turboworm motor with one grade variable speed and long service life. The controller can be directly connected with the access control, electric lock, etc., without additional 12V power supply.

2.The automatic sswing door opener model SW200 can hold up to 200kgs of weight, making it more powerful to run. If it is a frameless glass door, which can be equipped with a frameless glass clip,and door can run smoothly.

3. Reinforced high strength aluminum alloy and imported original parts used. --  Whole machine adopts the imported original parts, with reinforced high strength aluminum alloy shell design, anti-pressure and anti-wear, firm and durable.


4. Imported motor from Germany -- The motor are imported from Germany with fast speed and service life of more than 1 million times. The motor adopts optimized design, which has higher efficiency and can produce considerable energy saving effect.


5. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage. You don't need extra hand programmer to adjust the parameters, you can adjust the parameters directly on machine.


6. Universal voltage can widely used -- The motor design takes into account the variation of voltage in different regions, makes the motor adapt to the use of voltage in multiple regions, and guarantees the user performance.(It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.)


7. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.


8. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

 double automatic swing door opener

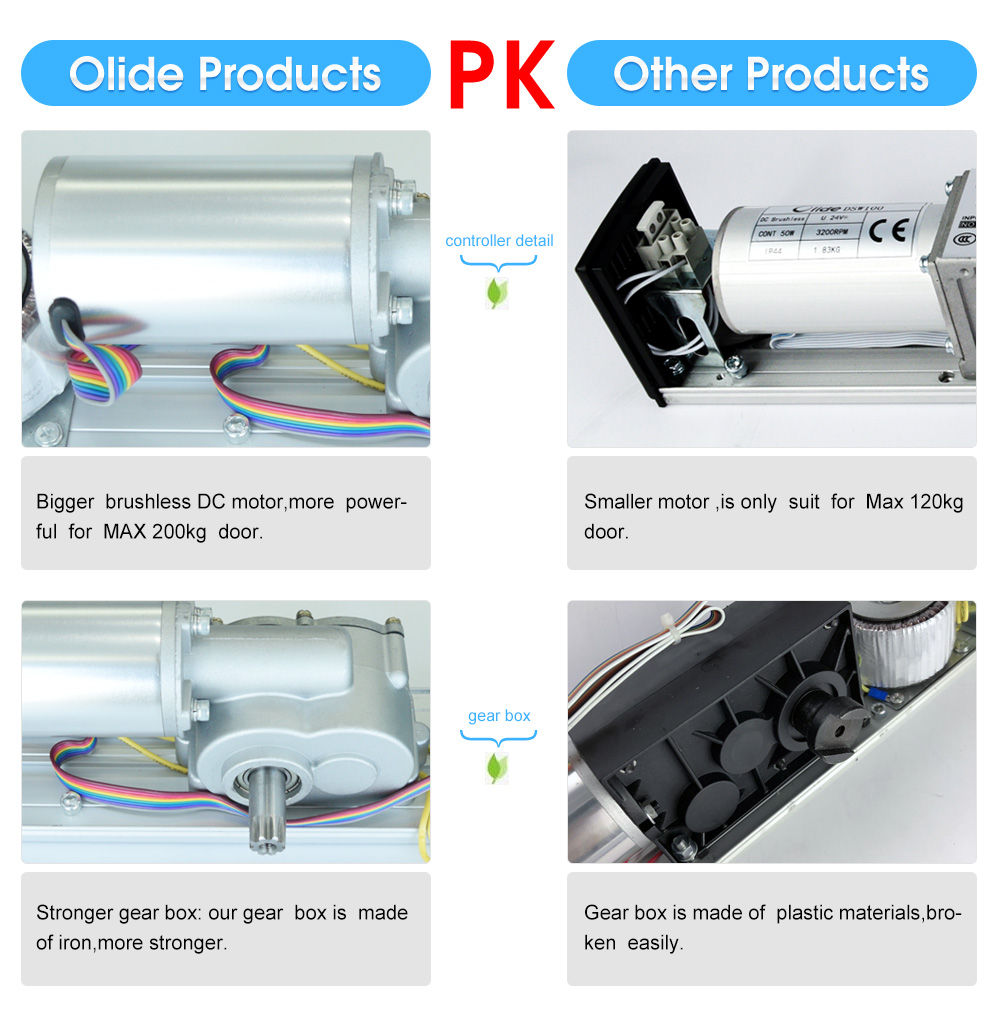

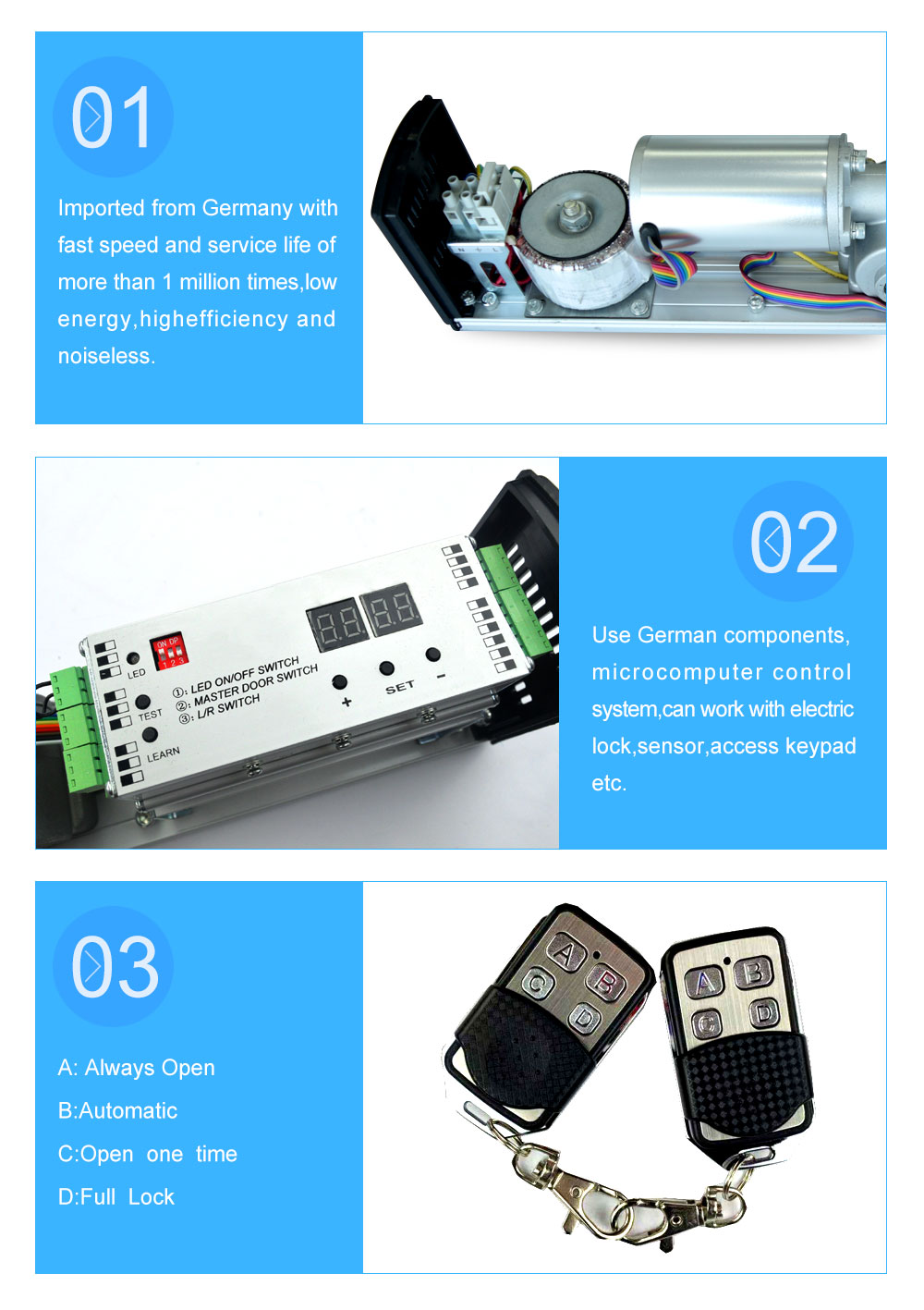

Double Automatic Swing Door Opener Detail

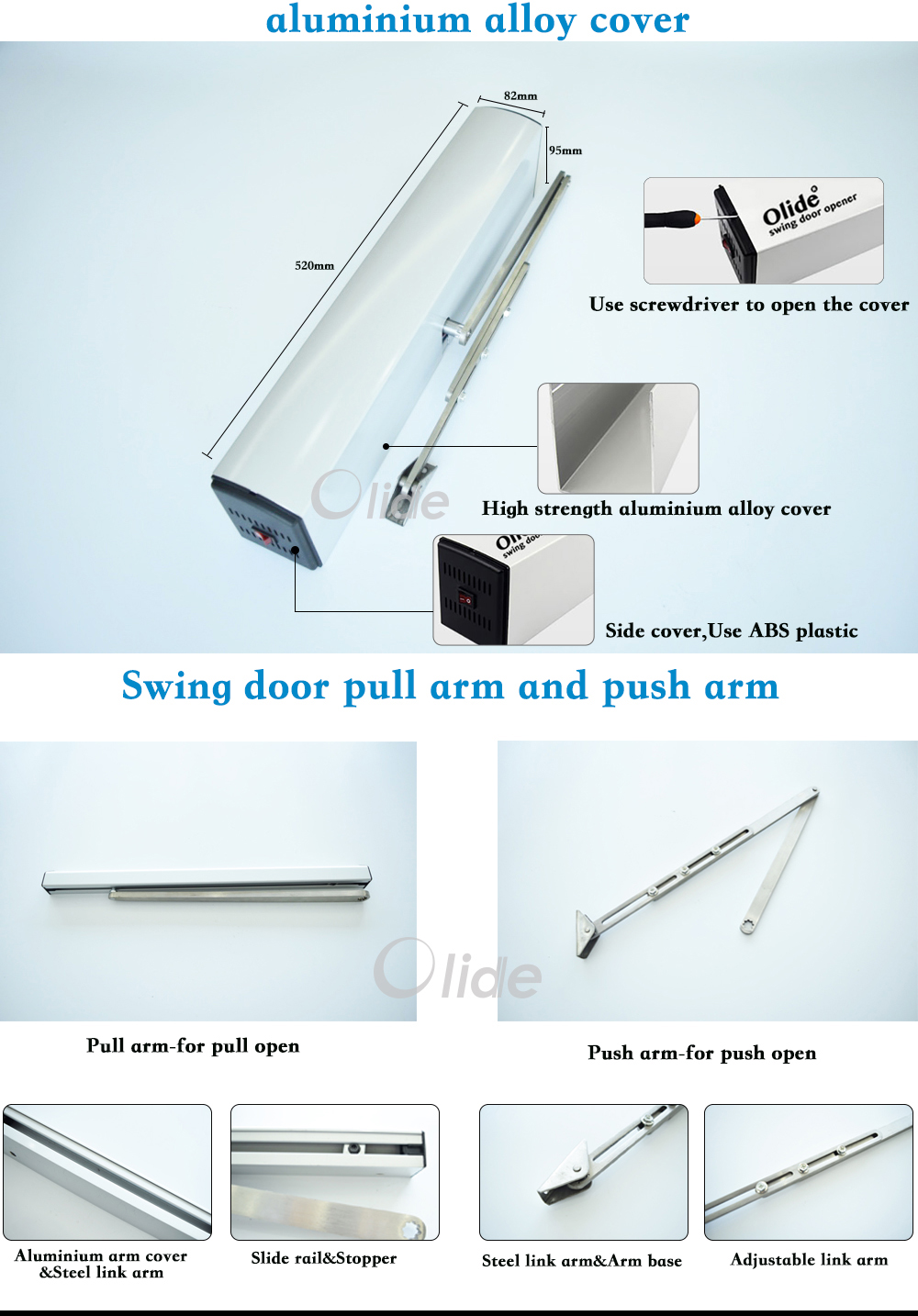

SW200 olide automatic swing door opener Double

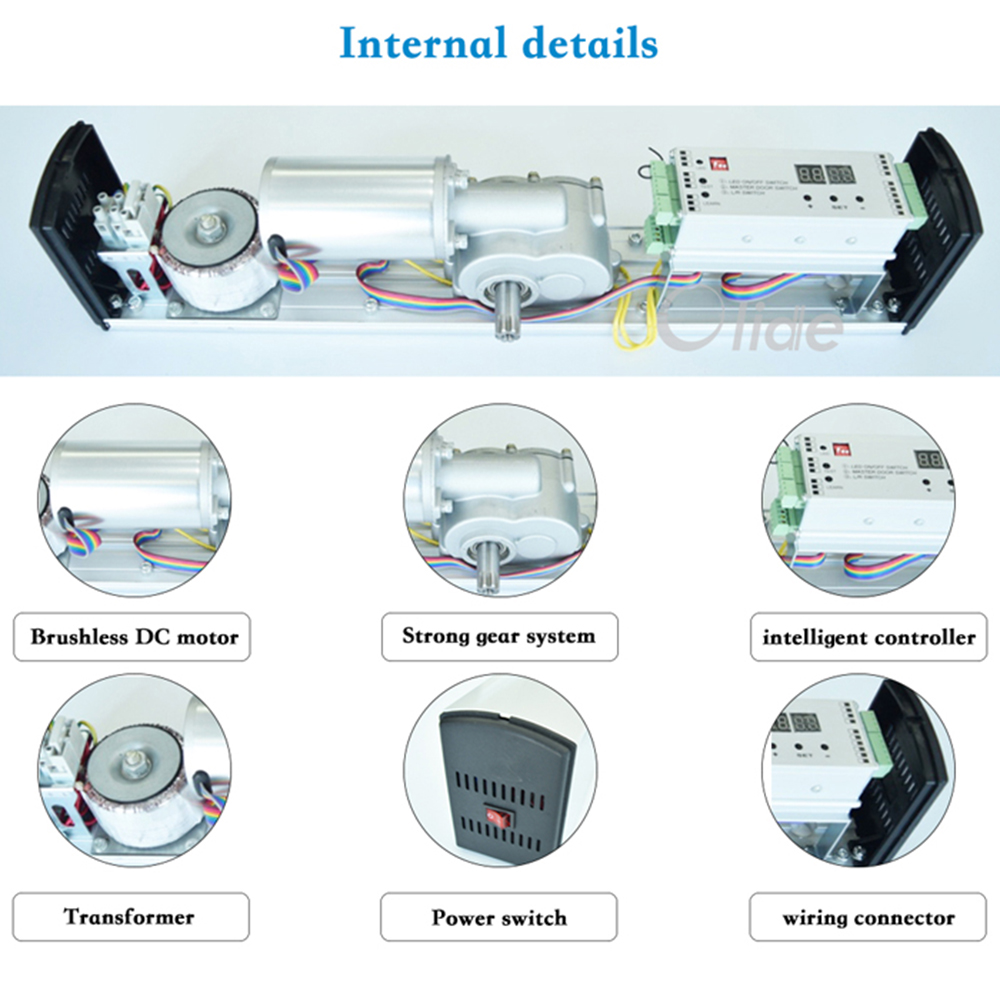

SW200 swing door opener details 05

Dual Automatic Swing Door Opener Installation

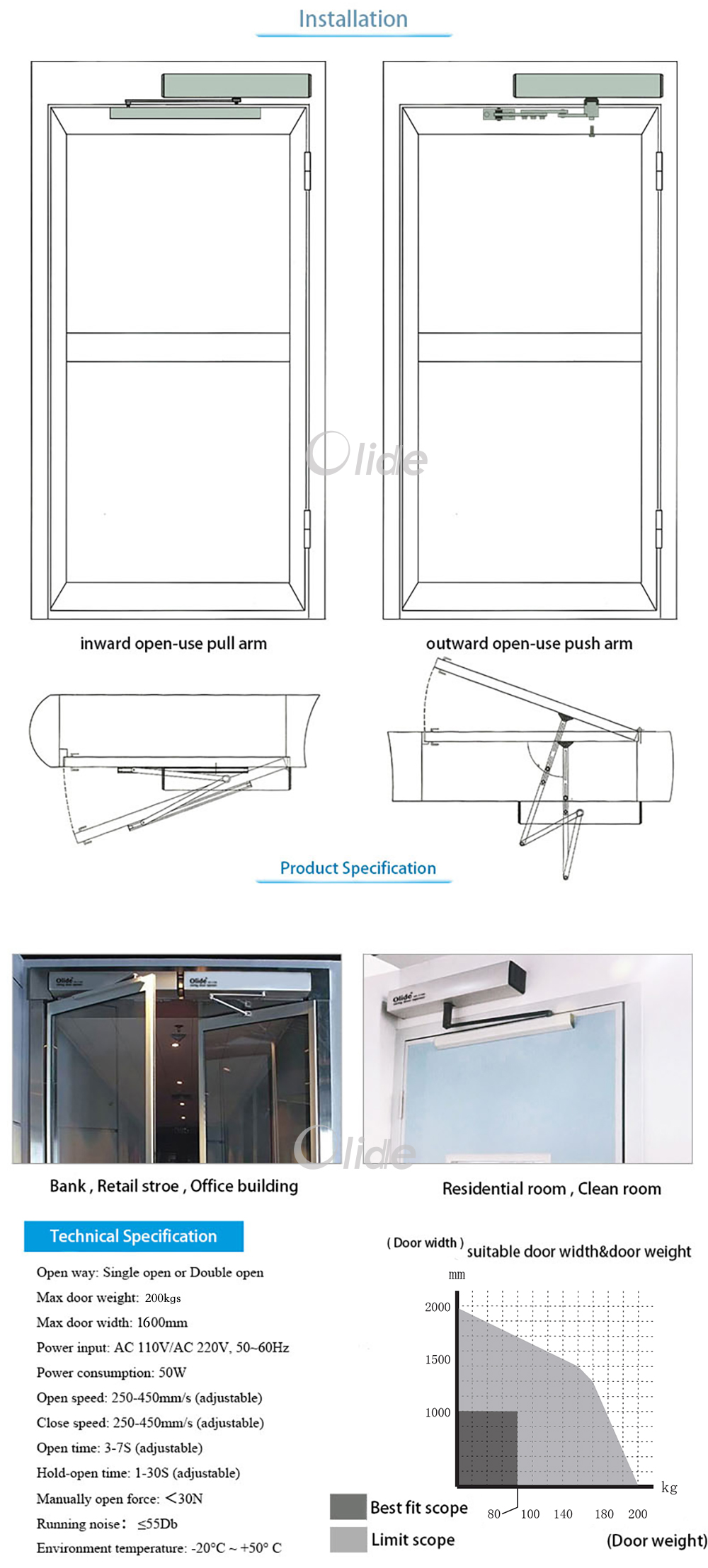

swing door opener installation details

Installation Examples

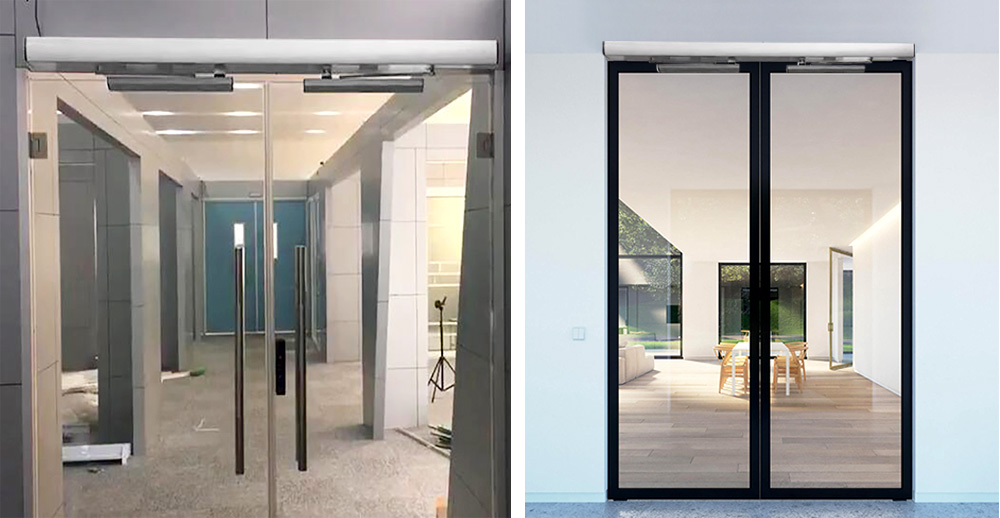

Installation example

Olide Factory Display

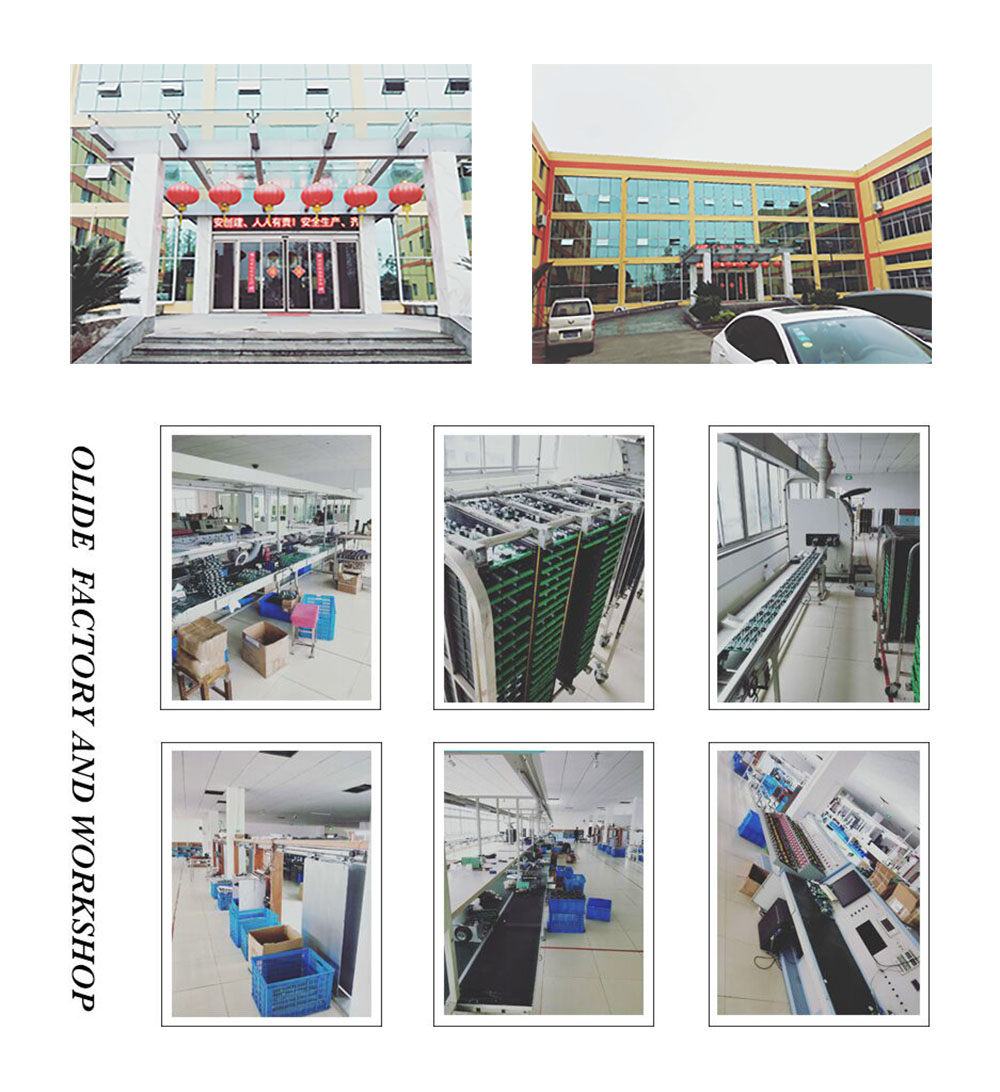

olide factory display
Published in Automatic swing doors

Olide Automatic/Electric Ground Door Operator Door Closer

In retail settings, the choice to specify and setup automatic/electric ground door operator must be primarily dictated by the types and number of users which are expected to come in and out the place on a daily basis. Automatic ground door is a perfect choice in a setting where anticipated users such as shoppers carrying stuff or pushing carts or strollers, elderly patrons and handicapped individuals. Also, it is widely understood that electric ground door operator show overall good customer service.

Ground door operator can be utilized with remarkable effect on openings with slanted or arched header conditions, all glass doors as well as other uses which look to balance functionality of the opening without changing the clean design look. There are many types of ground door operator/closers available out there, but one that stands out from the rest is the Olide automatic/electric ground door operator.

Product Description

It doesn’t matter if you are designing a contemporary, architectural masterpiece or protecting the integrity of a structure, ground opener and closer offers a perfect way to automate doorway without compromising design integrity.

The Olide automatic/electric ground door operator is made to offer comprehensive system with an in-ground closure operator as well as arm adapter. It comes with water resistant enclosure and powder coated in order to avoid corrosion. The adaptability to a lot of arm configurations allows remarkable flexibility for integration with the design.

This door operator uses the powerful operator technology providing superior performance in order to accommodate heavy door as well as high traffic flow. This is the best solution for ground door uses where wind conditions may happen.

The Benefits of Olide Automatic/Electric Ground Door Opener/Operator

There are many good reasons why you should consider this product such as:

Microcomputer controller: This product utilized the most advanced technology to swiftly and precisely detect door weight and width. With amazing speed and service life of over 1 million times, this door operator can work stable. What is more, it has smooth and silent operation.

Efficient Motor: Adopt DC brushless motor, great force distance, long life as well as high efficiency.  This product is integrated with electromagnetic iron, while the locking power can reach up to 100N.

Gearbox: Adopt worm gear as well as worm reducer, while the integrated helical gear drive offers smooth rotation and ultra-quiet operation.

Motor Cover: Motor cover is made of high quality material thus offer longer life as well as extremely stronger.

Package includes mounting screw, motor, end stop, operator, remote as well as accessories.

Conclusion

The state of the art Olide Automatic/Electric Ground Door Opener/Operator allows your application to meet access need and at the same while maintaining the desired architectural style like an all glass front or arched door. This groundbreaking new door operator hides the automatic parts in the floor close to the door threshold. Aside from the many perks this product offer mentioned above, this unit can be bought for a reasonable price without compromising the quality.

Published in News & Events
Monday, 17 December 2012 07:49

Automatic sliding door operator

Olide Automatic sliding door operator is one of the most cost-effective and one of best practical solutions for enclosing a room. Using a motorised aluminium sliding mechanism can provide a modern and professional appearance to offices and other establishments. This type of door can also increase the visibility between the divided rooms for added security and protection.

Compared to traditional hinged doors, Automatic sliding door opener provides wider openings. This feature would allow the users of this type of door to easily fit larger items such as the couch and other large furniture. This door also serves as a great room divider as well as dividers for conference and event halls.

Video on youtube



Automatic sliding door operator csd 190 FEATURES

  DC 24V Brushless Motor

  Worm gear reduce make it low noise;
  Advanced PWM Pulse width control mode providing reliable
  strong driving force and protect the stable operation of
  the product;Full enclosed structure ensure long service life.

Automatic sliding door operator motor csd 190



 Automatic sliding door operator processor csd190

Intelligent 32 bit microprocessor,
            Pass more safty.

32 bit microprocessor in electric board make
the door sliding reversely when touch obstacles;

Opening&closing parameters can be                intelligently ajusted by control panel without extra programmer;

Various connectors can connect with different
optional access control accessory.





  Bigger hanger roller,lower operation voice

   Bigger diameter hanger roller after improved is stronger and moving faster than smaller roller;
   Small friction for the bigger diameter,the operation voice is lower.
   The roller is made of polyurethane,it is light and durable.

Automatic sliding door operator gear wheel



Automatic sliding door operator access control system

Complete perfect access control  system

Only entering the passcode or swiping card on the
optional  access keypad,people can be entered.

Autodoor can reach the functions of automatic/exit
only/partial open/locked and open by the optional five
key selector.

Various optional accessories such as foot sensor,touch
sensor,push button etc.can be equipped.





  Functions of Safty beam and microwave sensor
            are perfectly combined.

 The optional active rader&infrared safety sensor is combined the function of safety beam and microwave sensor. If install it, no      need safety beam and microwave sensor.More intelligent and convenient ,only  need one wire
 connection, no need more for safety beam and microwave sensor.

Automatic sliding door operator safety beam and mocrowave sensor




  The hydraulic and between cover and rail make
  maintenance&installation easier.

  The hydraulic rod connect cover and rail make opener maintainance & installation easier.
  Made of thermal-break aluminium alloy, it possess better thermal insulation performance, leakproofness
  than normal aluminium alloy.
  The black oblong plastic end panel make the openers look more beautiful, it well match up  with the wood,
  glass door, framed or frameless door.

 Automatic sliding door operator csd190 cover

                                 Hydraulic rod                                                       Beautiful oblong plastic end panel

TECHNICAL SPECIFICAITON of Automatic sliding door operator
 Model  SD190
 Door range  Single leaf Double leaf
 Door leaf weight  Max 150kg*1 Max 135*2
 Door width  600~3000mm 600~1500mm
 Opening speed  100~550mm/s(Adjustable)
 Closing speed  100~550mm/s(Adjustable)
 Opening time  0~9 seconds
 Motor  DC 24V Brushless DC Servo Motor
 Supply voltage  Input AC 110V/220V;50-60Hz
 Working temperature  -20~50°C
 Working noise  Less than 50 db



 Automatic sliding door operator SD190 COMPONENTS INCLUDING

 Automatic sliding door operator csd190 whole set



Components Quantity Componets Quantity
Control panel 1 Reveiver 1
Motor gear box assembly 1 Return pulley 1
Microwave sensor 2 Terminal input assembly 1
Tooth belt 1*7m Power switch 1
End stop 3 Hanger roller bracket 2
Remote control 2 Belt bracket link assembly 2
Device for yaw checking 1 Tansformer 1
Transmission rail and cover 2*2.1m Mcrowave sensor 2
 OPTIONAL ACCESSORIES of Automatic sliding door operator

 sliding door opener accessories

How to choose the correct size for your Automatic sliding door operator?

Our standard size for the cover and transmission rail is 2*210cm,it is just like the picture one double leaf door shows.If door size is beyond it ,Or if it is single leaf door,please contact us to choose the correct size for you.

           Automatic sliding door operator style

                                      Double leaf door                                                                                 Single leaf



 Dynamical system of Automatic sliding door operator:

1. A motor provides the main force for opening and closing, and controls the acceleration and deceleration of door leaf operation.
2. The tracks that the door leaf moves along constrain the spreader and wheel system to move in a particular direction.
3. The spreader and wheel system is used for hanging door leaves, and drives them run under the dynamic traction.
4. Synchronous belt (some factories use triangle belt) is used to transmit power produced by motor, and then draw the spreader and wheel system.
5. The guiding system is a device set under the door leaf for orientation and positioning, and it can prevent the door leaves from swinging back and forth when in operation.



 PROFILE DRAWING

 sliding door opener profile

Products features for automatic sliding door operator:

Flexible, simple and modular design

The perfect performance of new driven device of Olide sliding door opener can meet all kinds of usage demand. The Doma strong-power driven technology applied to ES200 is applicable to requirement of different door widths, door weights and functions.

Integrated driven device

The high-performance motor and gearbox free from maintenance ensure the safety of driven device and reliable operation. The weights of two leaves of automatic sensing door are 2 x 180kg.

Strong stability: OLIDE Automatic sliding door is especially equipped with high-efficiency DC brushless motor with the features of long lifetime, large torque, low noise and others. The transmission device and equipment are installed and the ability to make the targeted design according to the different place requirement to keep the more stable and reliable operation of door and eliminate the worries of frequent failure and other instabilities for the user.

High security: the microwave sensor is used for the common automatic sling door; after receiving the signal, the door will be opened and closed after a delayed period; but, it cannot judge whether the object still exists or not; so, there is the risk to clamping passenger or object. OLIDE automatic door uses the highly-safe infrared electric eye as the sensor to eliminate the potential danger of clamping passenger or object. The spare power is additionally equipped to maintain the continuous operation during the external power failure, keep in the set state and ensure the personnel safety.

If you want to get the Automatic sliding door operator price, feel free to contact with me.



 PROJECT FROM CUSTOMER

project from customer

 PACKAGING&SHIPPING

           automatic door orders from customers

 WHY CHOOSE US?

   why choose us 1

contact us

 contact US

Published in sliding door openers
